Injector (TBI): Removal
- Relieve fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE. Disconnect negative battery cable. Remove air cleaner assembly and mounting bracket. Remove injector cover and upper insulator. See Figure .

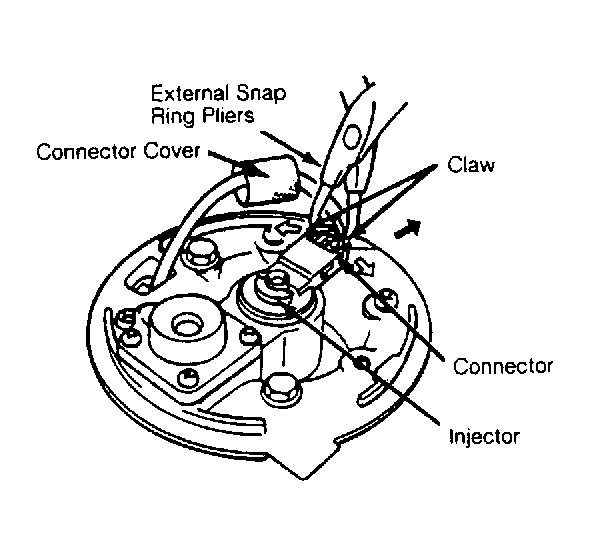

- Using external snap ring pliers, carefully open electrical connector claws of injector and disconnect connector. See Fig 1 . Slide injector harness grommet from throttle body and remove injector.
- If injector is difficult to remove, place shop towel over injector. Apply less than 70 psi (4.9 kg/cm2 ) of compressed air into fuel inlet port of throttle body to remove injector. DO NOT soak injector in any type of solvent or cleaner. Injector is NOT serviceable.
WARNING:
To prevent personal injury and damage to injector, DO NOT use more than 70 psi (4.9 kg/cm2
) to remove injector.
