EXPERTEC TSB (91-312-6E)

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

MULTEC FUEL INJECTORS/CLEANING - INFORMATION

Model(s): 1986-90 Chevrolet Celebrity

1986-91 Chevrolet Camaro, Cavalier, Corvette

1987-91 Chevrolet Corsica, Beretta

1990-91 Chevrolet Lumina, Storm

Bulletin No.: Chevrolet 91-312-6E Date: 05/15/1991

SERVICE INFORMATION

THIS BULLETIN CANCELS AND SUPERSEDES DEALER SERVICE BULLETIN NO. 91-280-6E, DATED APRIL 1991. THE STORM HAS BEEN ADDED. ALL COPIES OF 91-280-6E SHOULD BE DISCARDED.

This bulletin has been written to inform technicians of possible damage to Multec port fuel injectors as a result of cleaning.

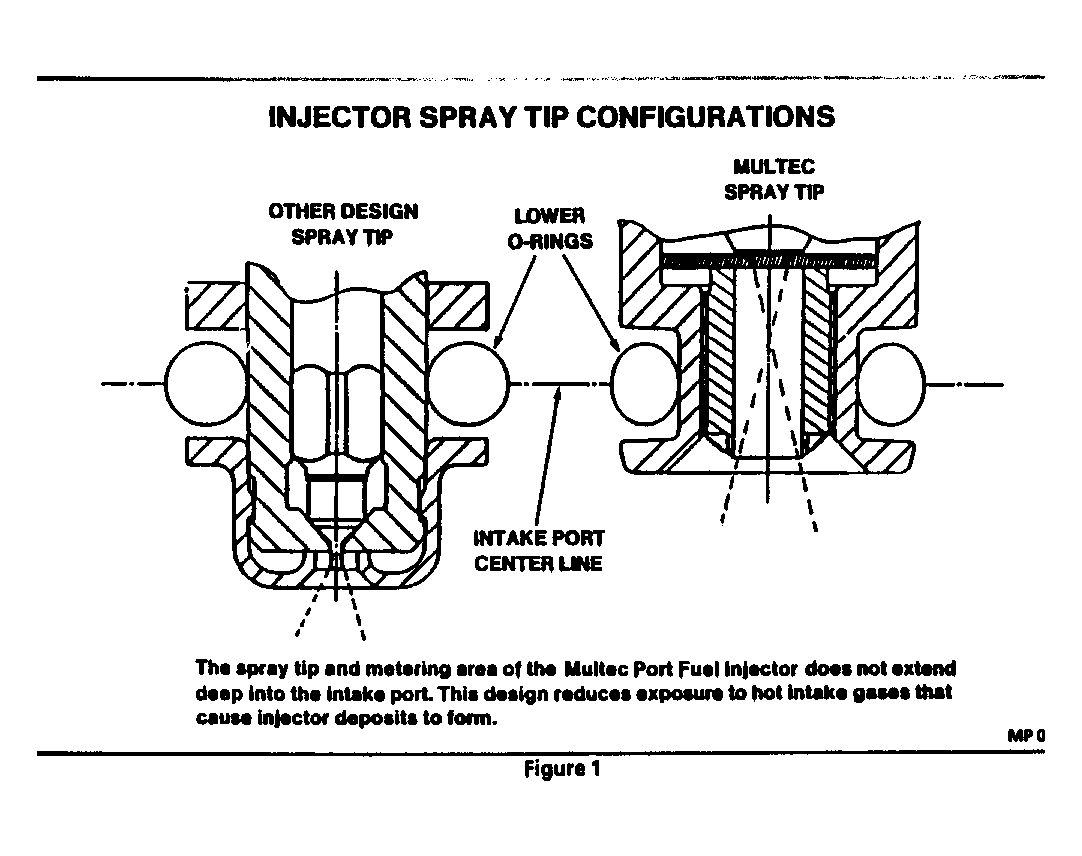

The ball and seat design of the Multec port fuel injectors eliminates the need of ever having to use an injector cleaner. By design, the fuel metering portions of the injector are not directly exposed to the intake manifold gases that are responsible for the build-up of deposits that can cause injectors to clog. (see Fig 1 ).

Some of these cleaners may contain high percentages of methanol and other solvents that cause damage to the injectors' coil wire insulation. Damaged insulation results in low resistance or shorted injectors. Also, high percentages of methanol or other solvents can increase friction at the injectors' critical bearing surfaces, resulting in premature wear.

General Motors has conducted extensive injector cleaning studies to determine effectiveness. There is no confirmed evidence that cleaning Multec port fuel injectors has resolved a vehicle driveability problem. In addition, suppliers of various injector cleaners may claim that their product can also clean intake valve deposits. General Motors laboratory tests have shown that injector cleaners have little or no effect on intake valve deposits.

General Motors maintains the position that Multec port fuel injectors should not be cleaned.

BULLETIN ILLUSTRATION LIST
