Wiring Diagrams
Wiring Diagrams
NOTE:
Diode X-22 is located in relay and fuse box in left side of engine compartment.

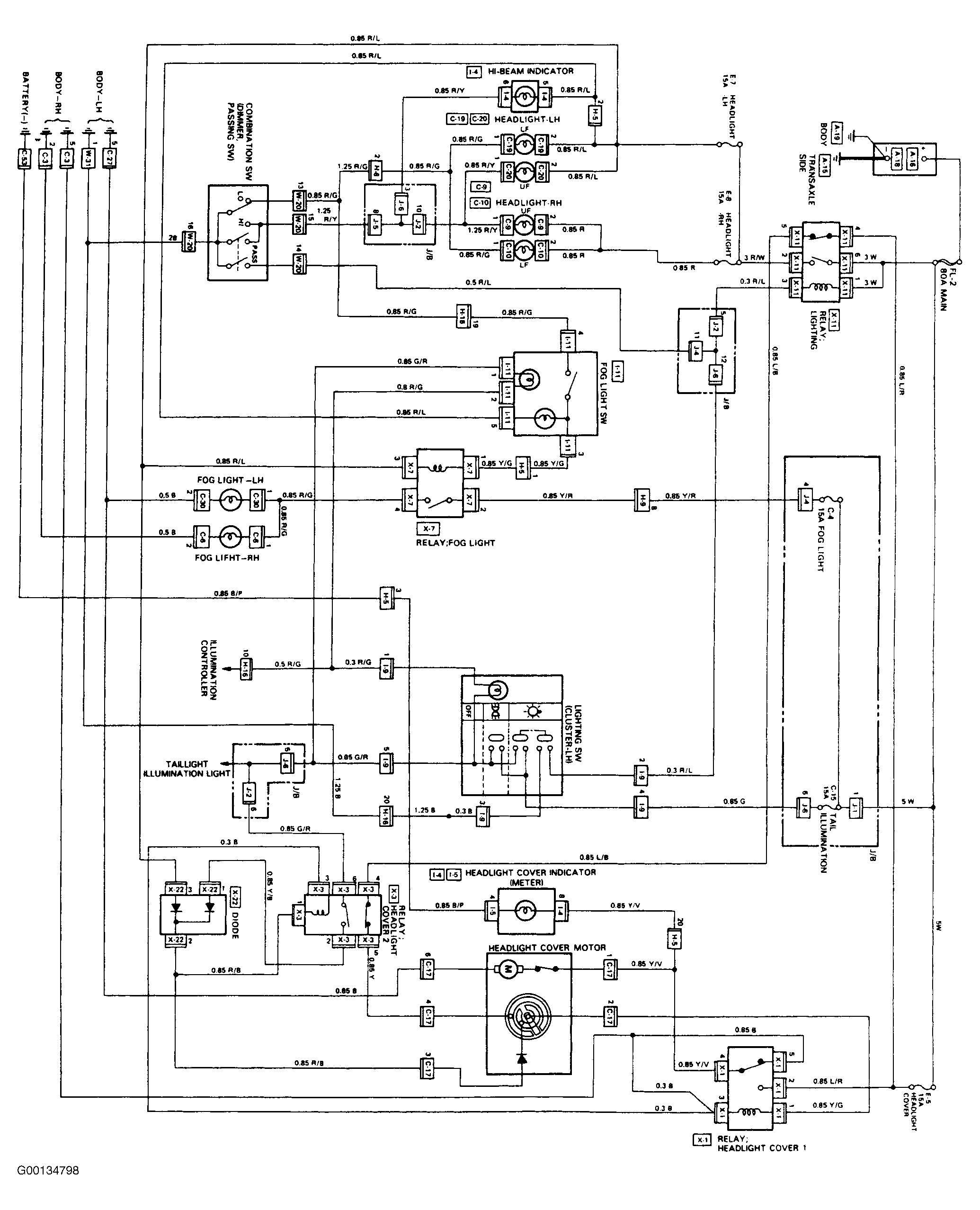

Fig 1: Head Lamp Covers Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
