Wiring Diagrams

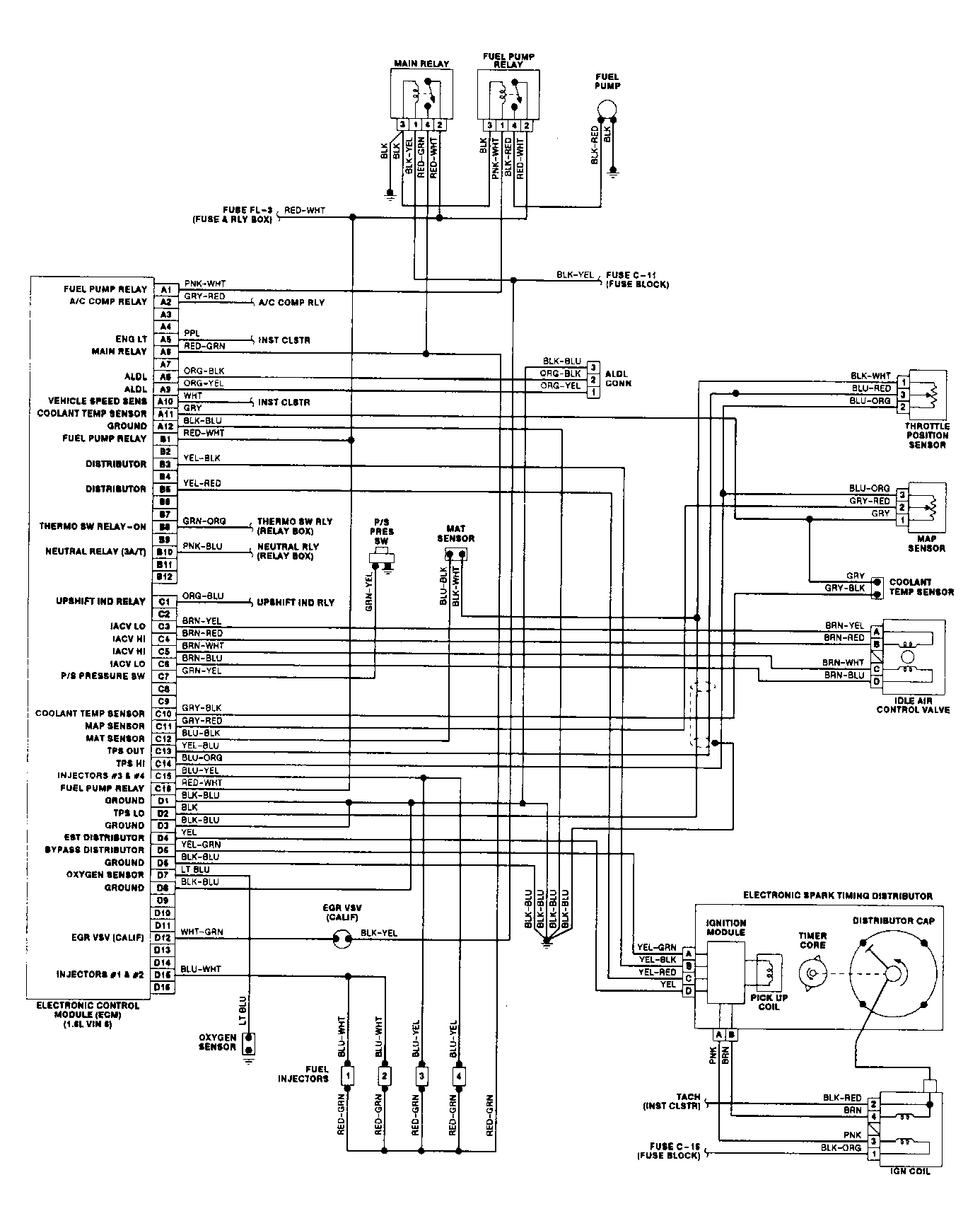

Fig 1: Storm 1.6L (VIN 6) Wiring Diagram

G90D21702

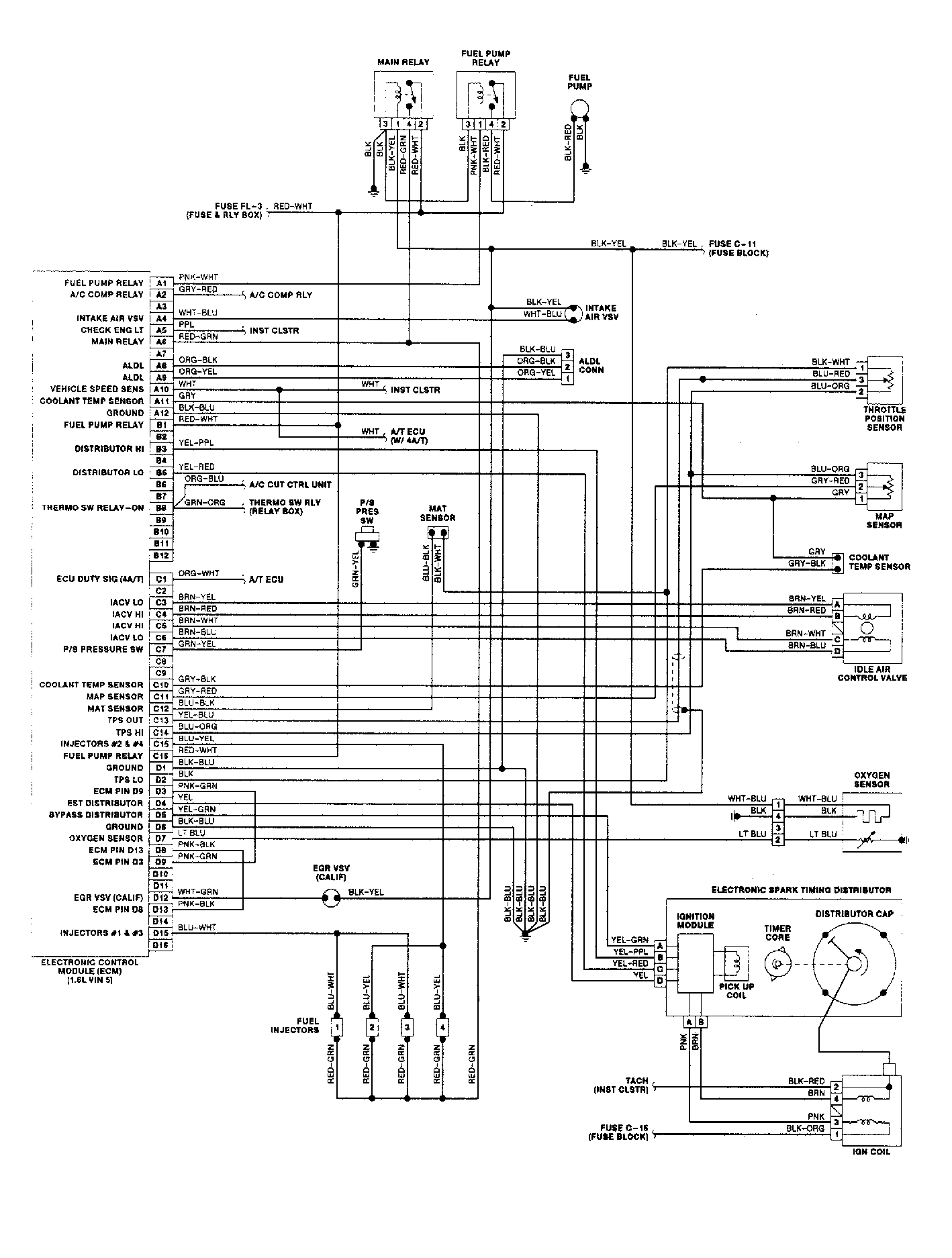

Fig 2: Storm GSI 1.6L (VIN 5) Wiring Diagram

G90E21703
