Diagnostic Aids

An intermittent may be caused by rubbed through insulation or a wire broken inside the wire insulation. Check ECM harness connectors for backed out or damaged terminals. If code is intermittent, see TESTS W/O CODES article.

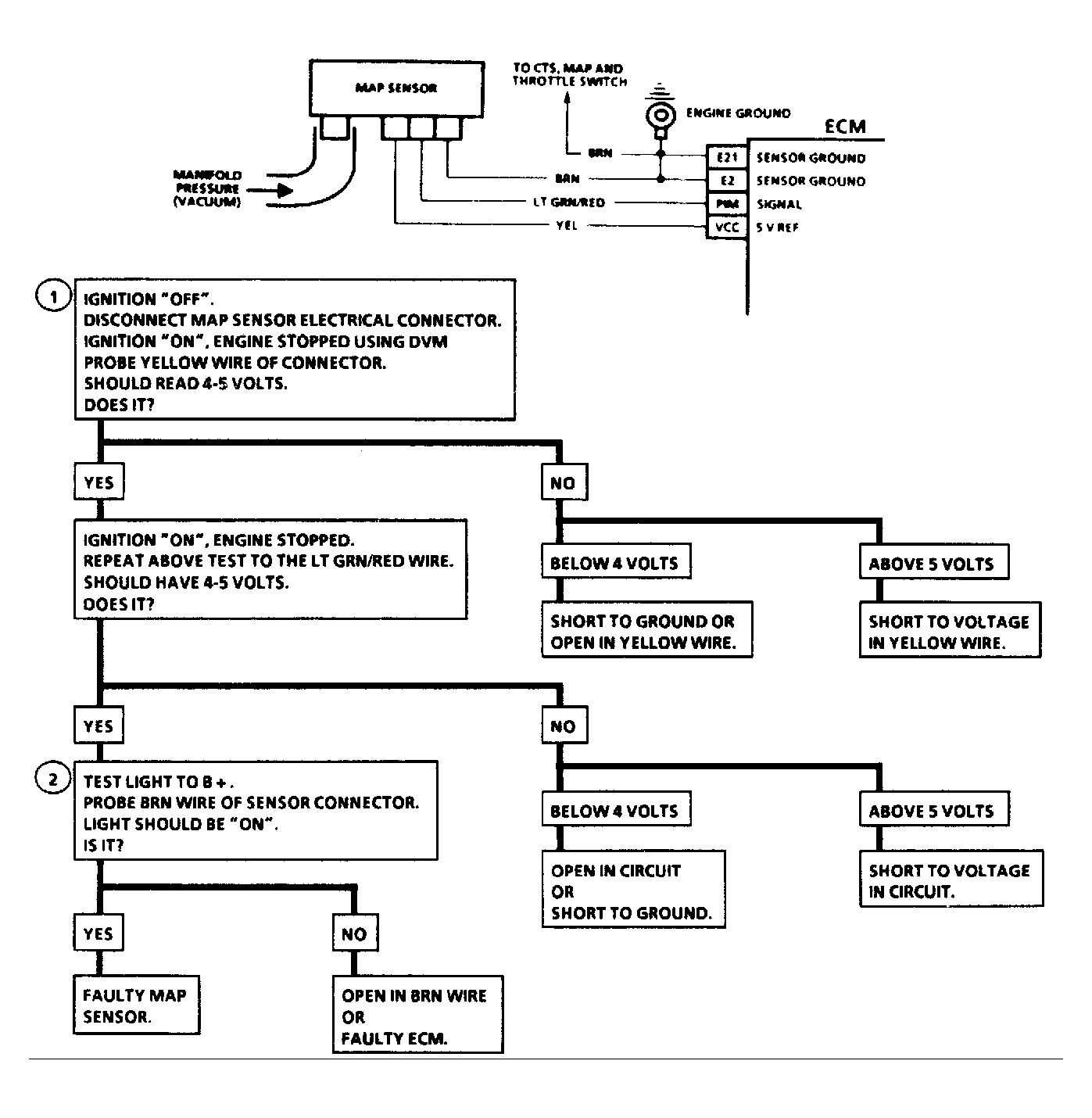

Fig 1: Code 31 (VIN 6) Circuit Diagram & Flow Chart
G121646
