Diagnostic Aids

Check for a faulty light bulb, open in Red wire circuit or MAP sensor 5-volt reference shorted to ground. If engine cranks, but won't run, check battery feed circuit, EFI main relay, ignition circuit and poor ECM connections.

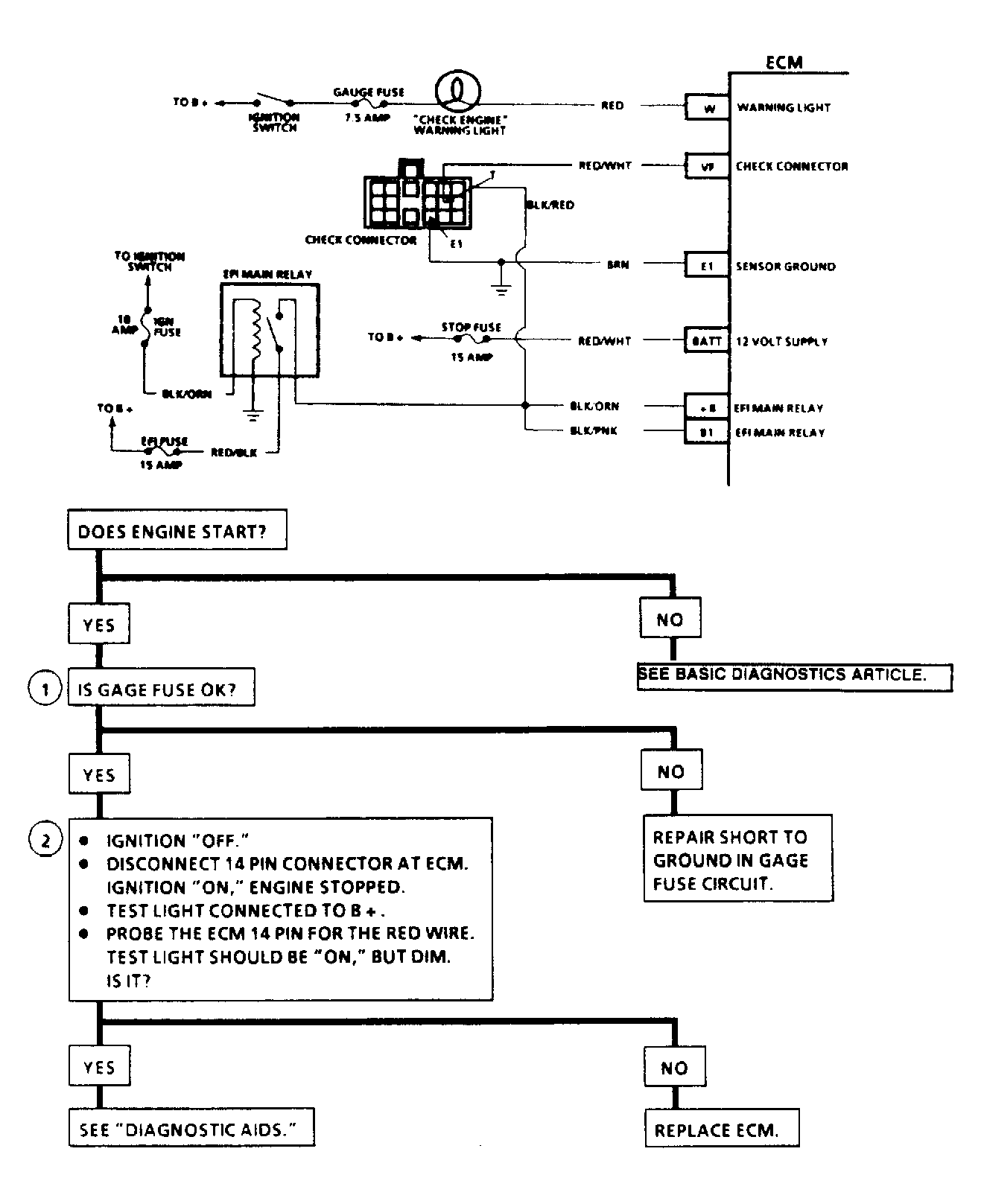

Fig 1: Chart A-1 Circuit Diagram & Flow Chart
G121630
