Diagnostic Aids

An intermittent may be caused by rubbed through insulation or a wire broken inside the insulation. Check ECM harness connectors for backed out or damaged terminals. If code is intermittent, refer to the appropriate TESTS W/O CODES article.

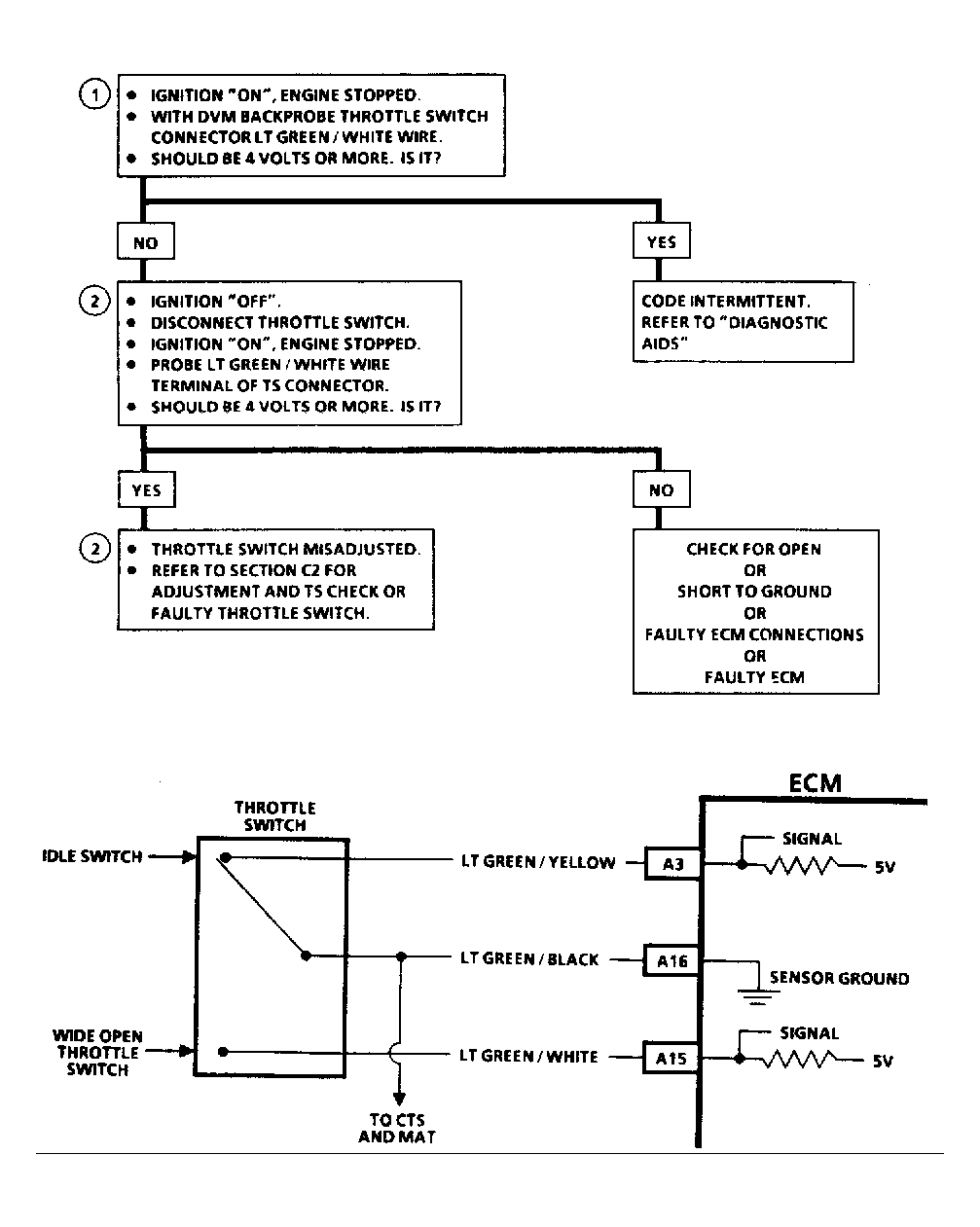

Fig 1: Code 21 Circuit Diagram
G121617

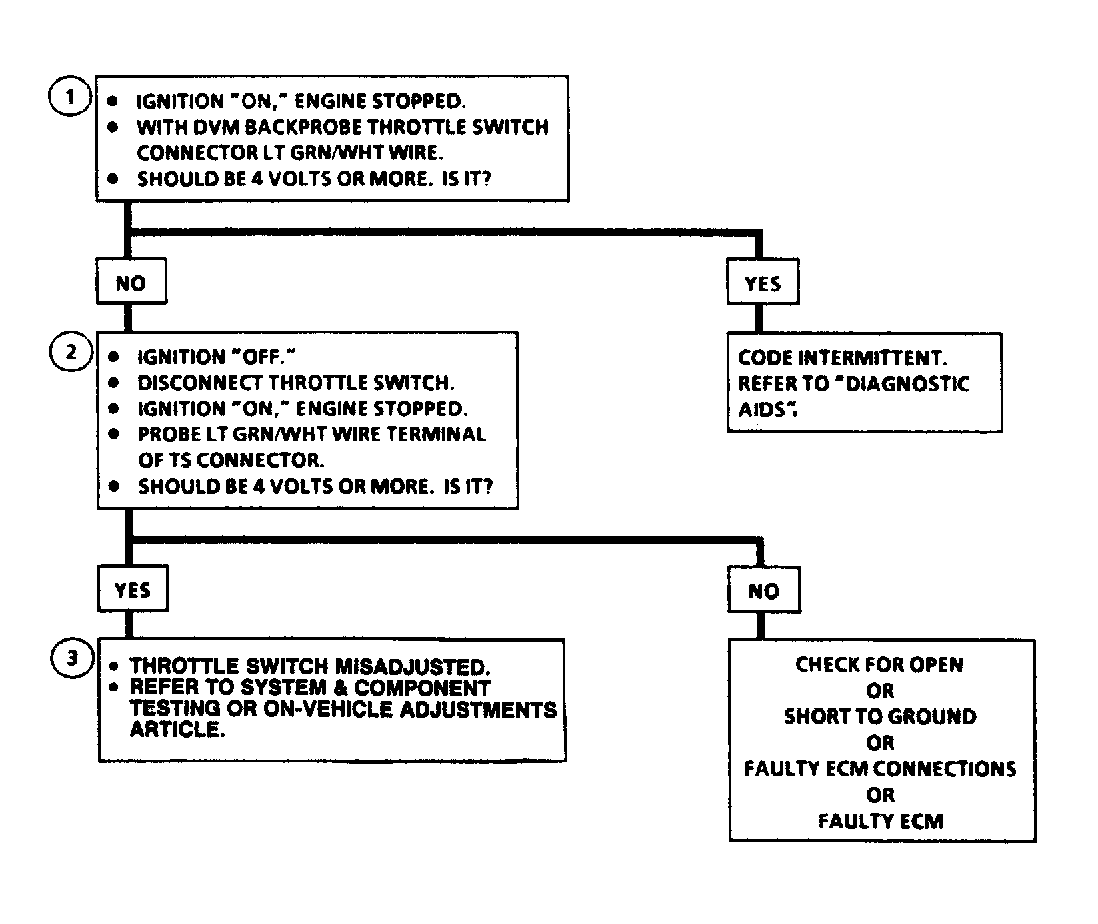

Fig 2: Code 21 Flow Chart
G90C18640
