Pin Voltage Charts

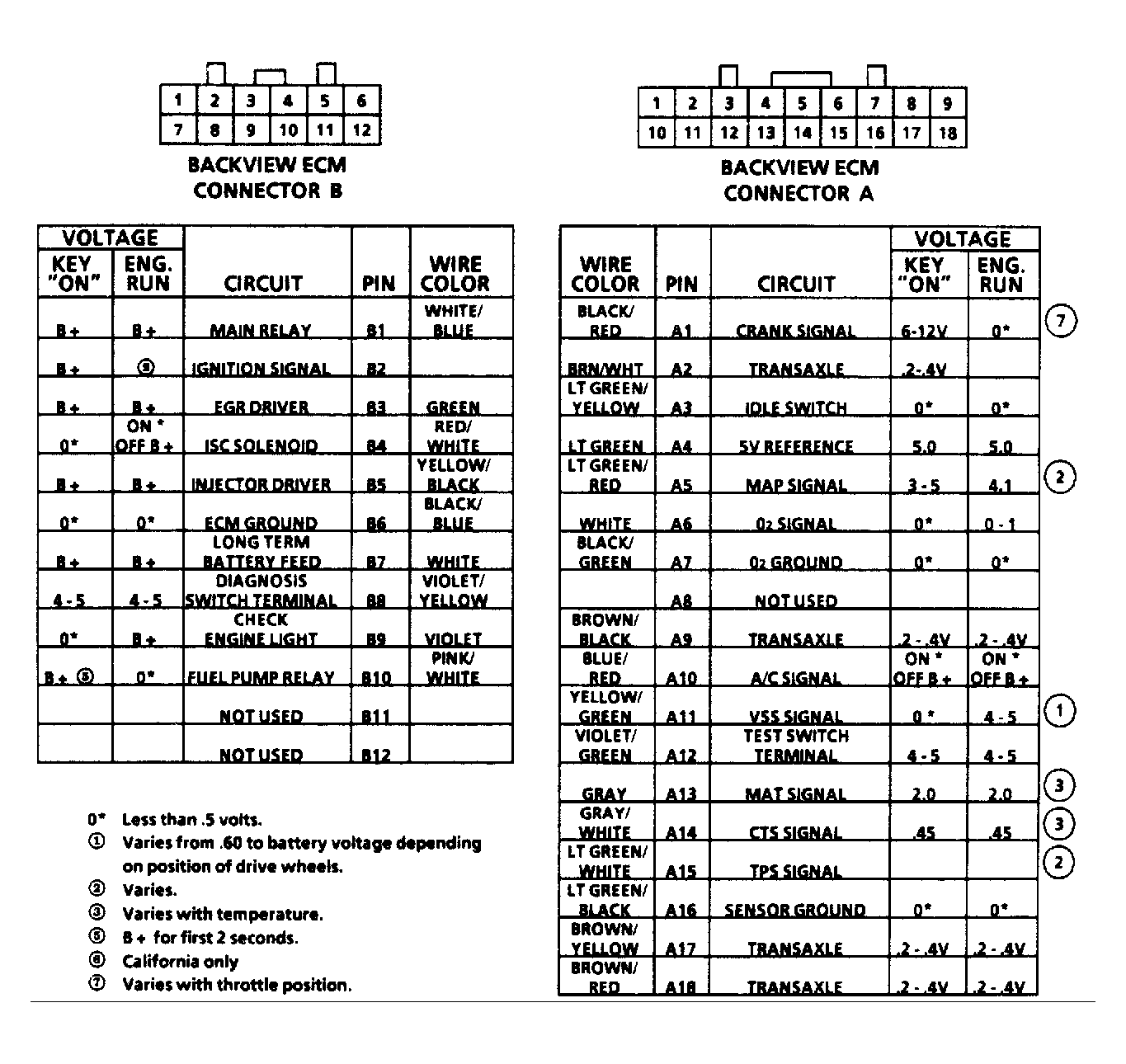

Fig 1: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & A/T)
G90C18632Courtesy of GENERAL MOTORS CORP.

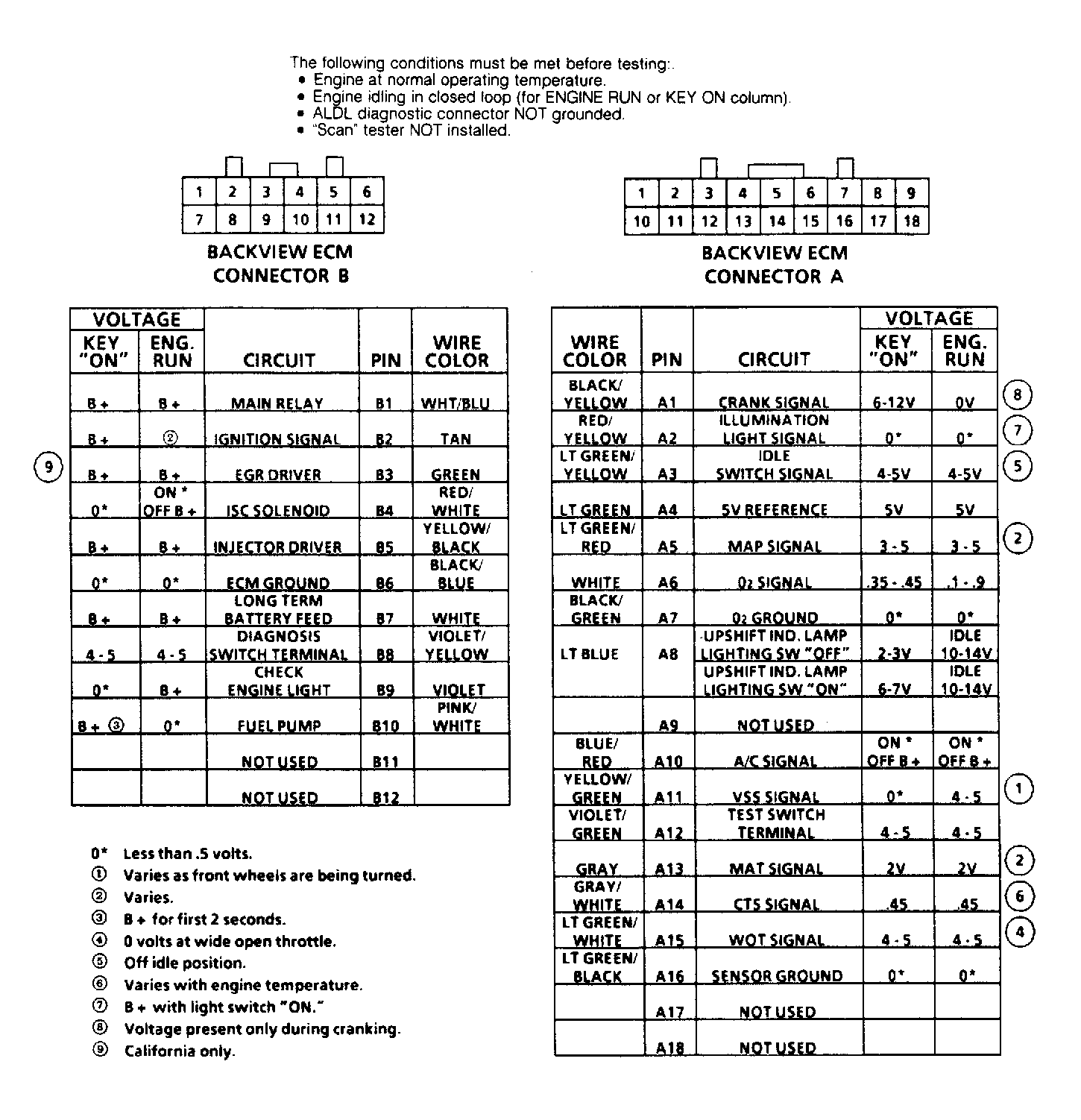

Fig 2: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & M/T)
G90D18633Courtesy of GENERAL MOTORS CORP.

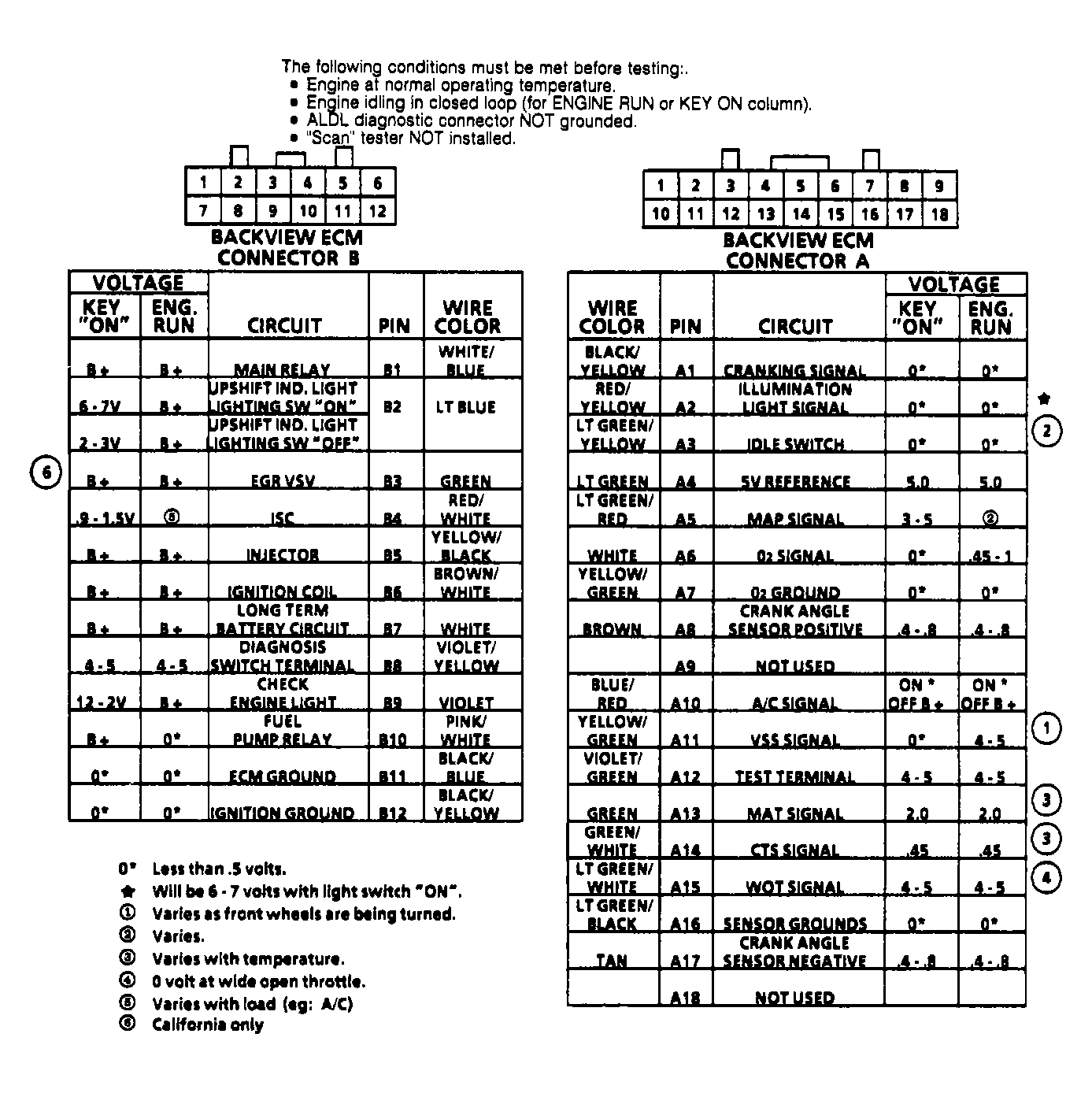

Fig 3: Checking ECM Terminal Pin Voltages (Metro With ESC Ignition & M/T)
G90E18634Courtesy of GENERAL MOTORS CORP.
