Alternator & Regulator: Overhaul

Overhaul information is not available. Refer to the figures for disassembly and reassembly reference. See Fig 1 and Fig 2 .

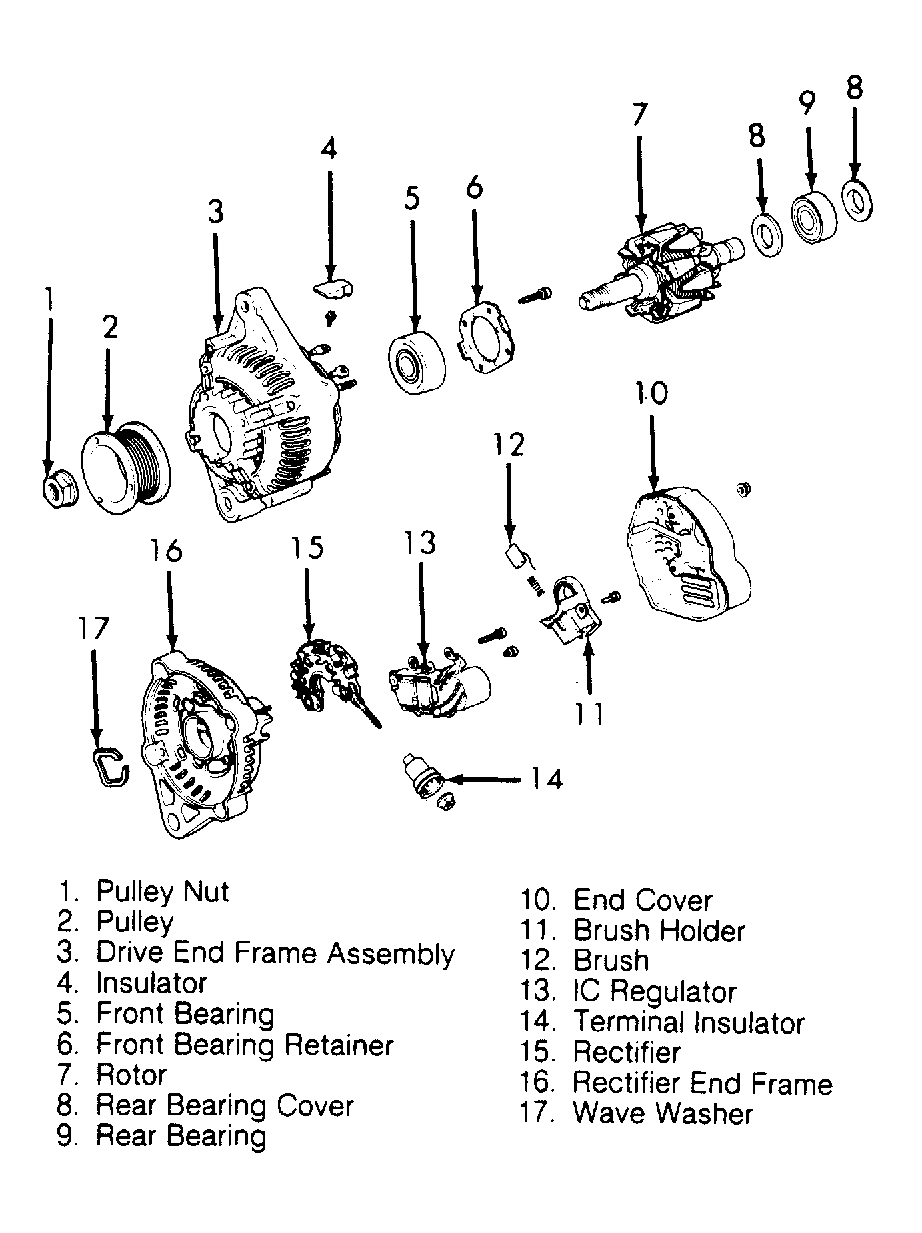

Fig 1: Exploded View of Alternator (Metro)

Courtesy of GENERAL MOTORS CORP.

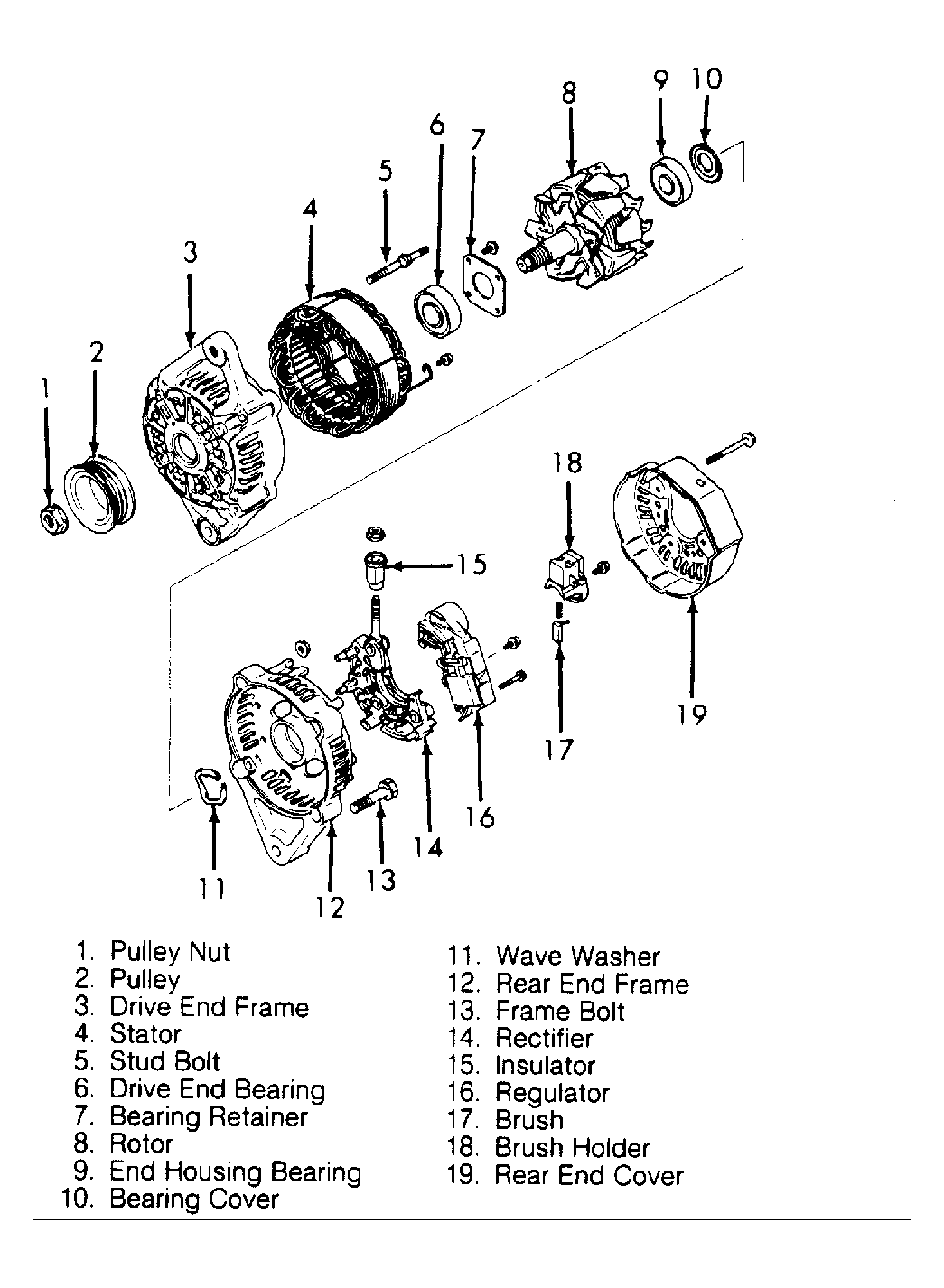

Fig 2: Exploded View of Alternator (Prizm & Prizm GSi)

Courtesy of GENERAL MOTORS CORP.
