Wiring Diagrams

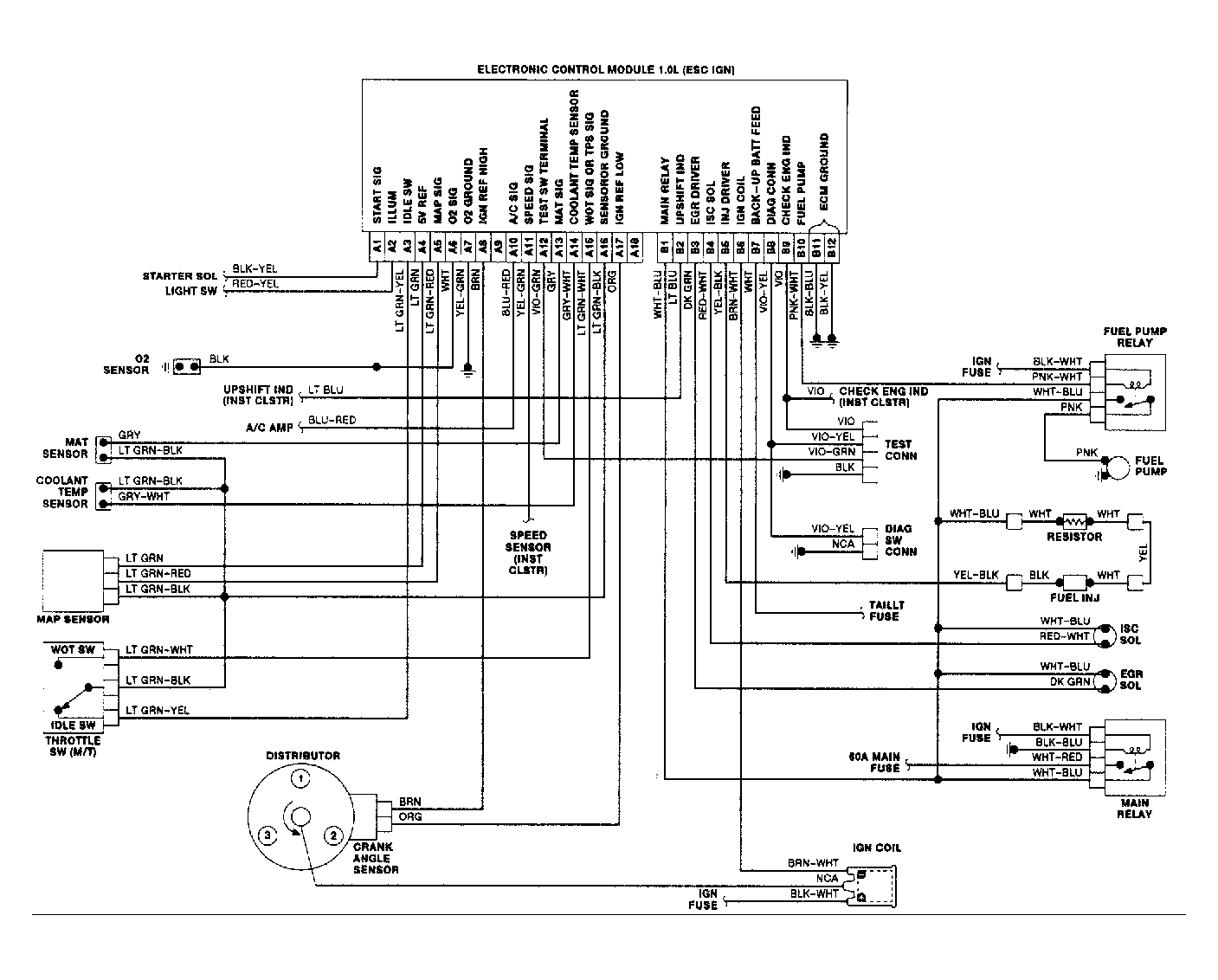

Fig 1: Metro 1.0L (ESC Ignition) Wiring Diagram

G90H21698

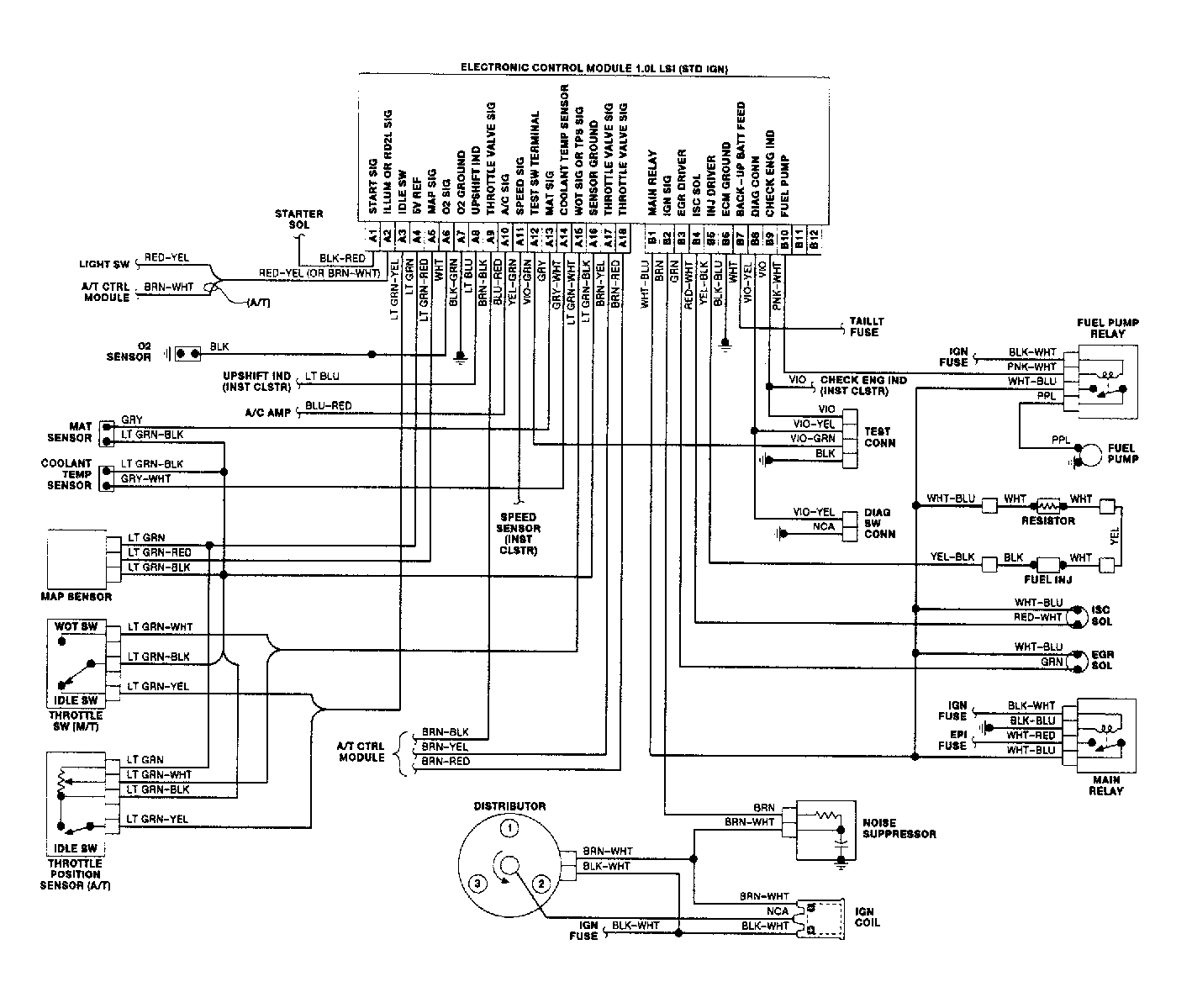

Fig 2: Metro LSi 1.0L (STD Ignition) Wiring Diagram

G90I21699
