EGR Modulator (Prizm)

  1. Remove vacuum hoses from modulator. Place finger over modulator ports No. 2 and No. 3. See Fig 1 . Blow into port No. 4. Ensure air passes through filter part of modulator.
  2. Connect vacuum pump to modulator port No. 5 and plug ports No. 2 and No. 3. While blowing into port No. 4, vacuum should bleed off at port No. 5. Replace modulator if not to specification.

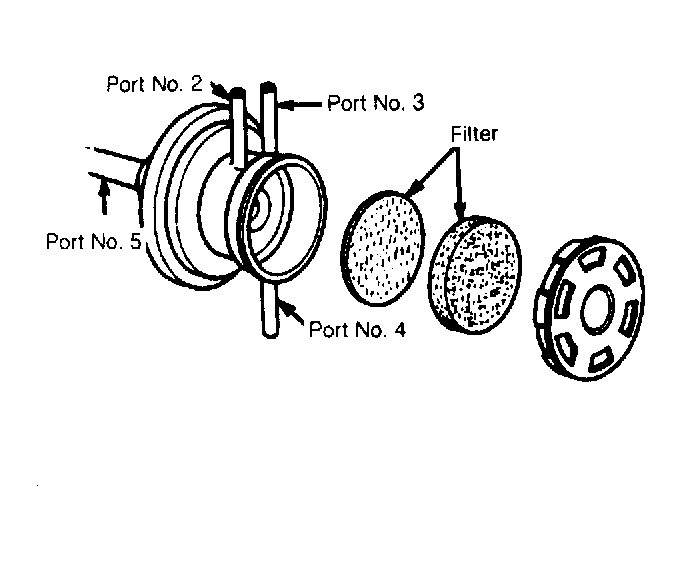

Fig 1: EGR Modulator (Prizm)
G121719Courtesy of GENERAL MOTORS CORP.
