Secondary Touch Angle

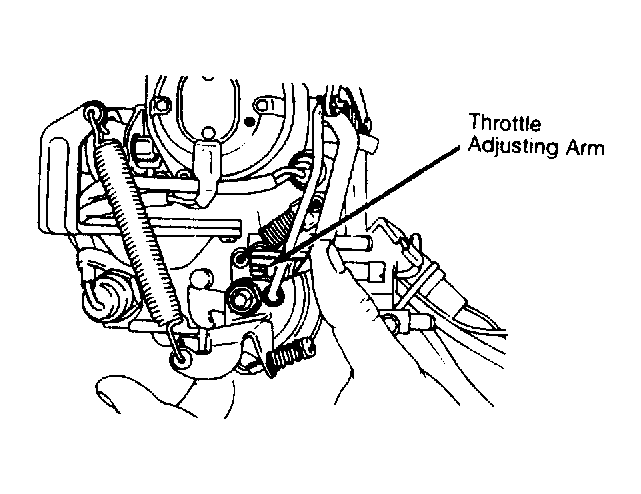

Clearance should be checked at primary throttle valve to bore when secondary throttle valve starts to open. Clearance should be .23" (5.8 mm). Adjust by bending throttle adjusting arm. See Fig 1 .
Clearance should be checked at primary throttle valve to bore when secondary throttle valve starts to open. Clearance should be .23" (5.8 mm). Adjust by bending throttle adjusting arm. See Fig 1 .
