Shift Control Cable: Prizm

  1. Loosen swivel nut on shift lever at transaxle. See Fig 1. Push manual lever fully toward right side of vehicle.
  2. Return manual lever 2 notches to Neutral position. Set shift lever in "N" range. While holding lever lightly toward "R" range side, tighten swivel nut.

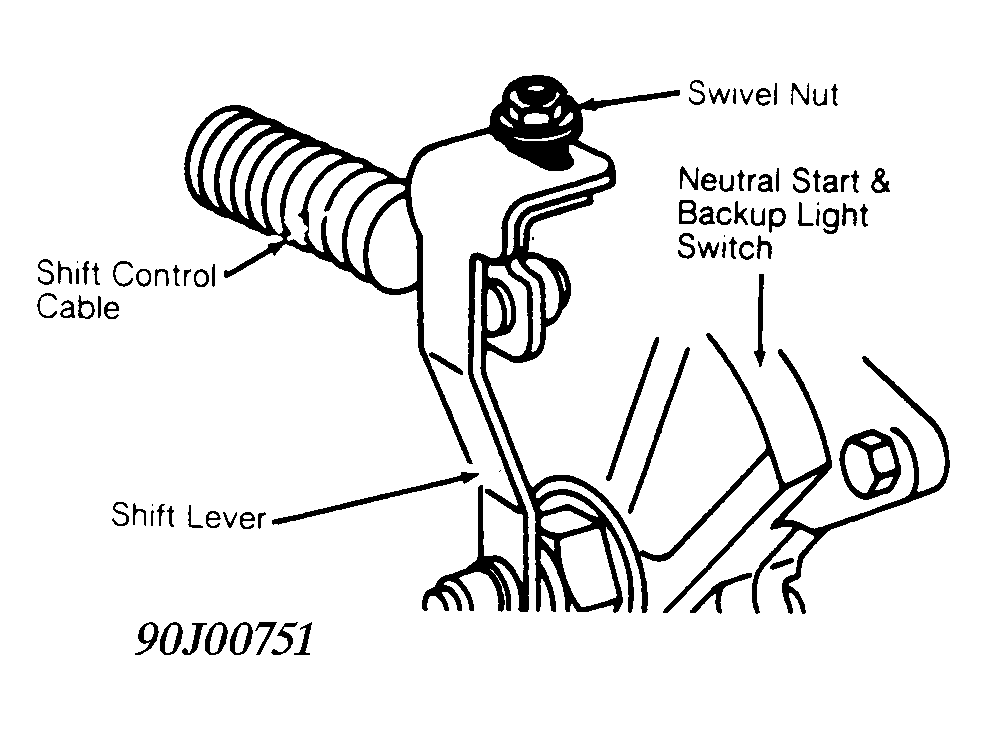

Fig 1: Adjusting Prizm Shift Control Cable
G90J00751Courtesy of GENERAL MOTORS CORP.
