Wiring Diagrams

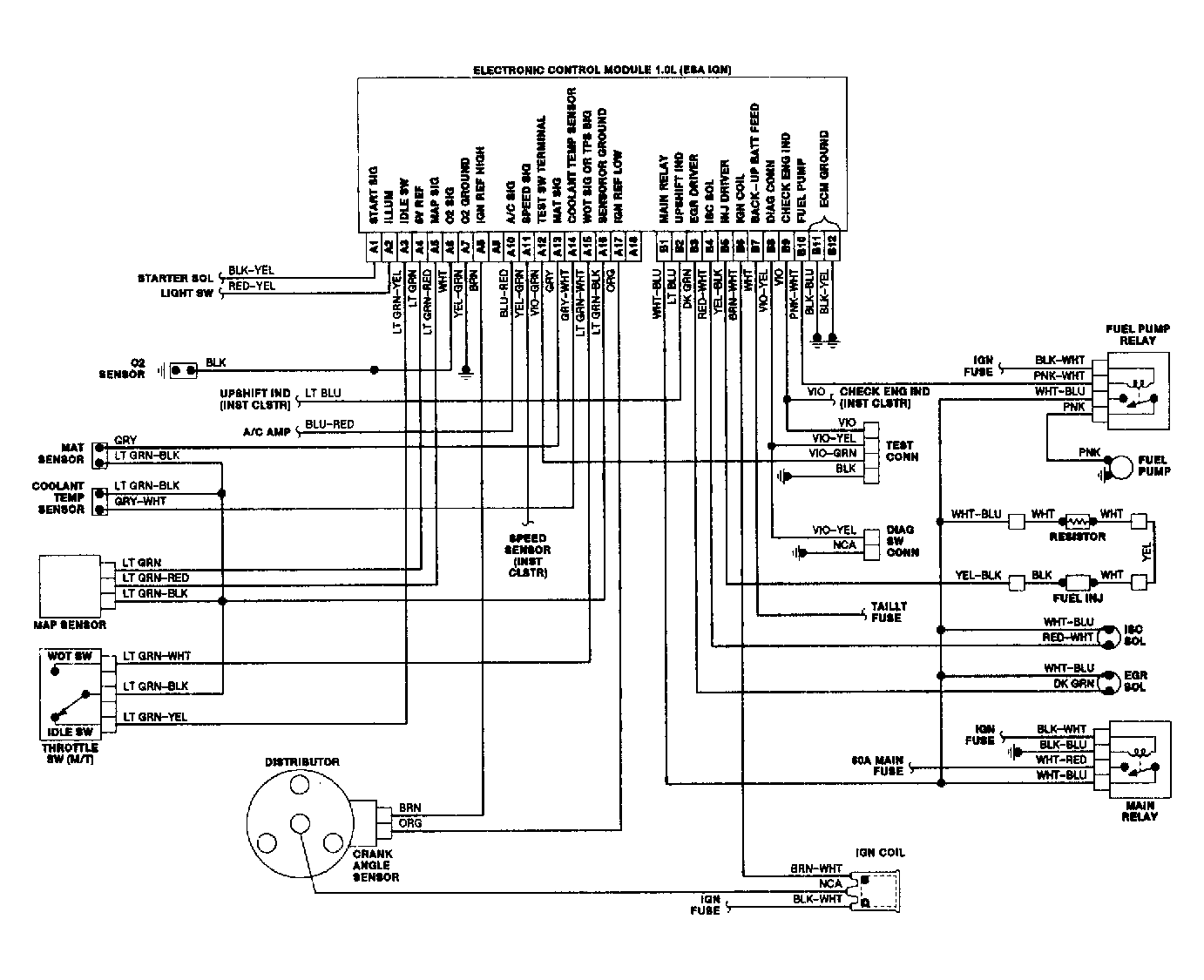

Fig 1: Geo Metro 1.0L (ESA Ignition)

G121737

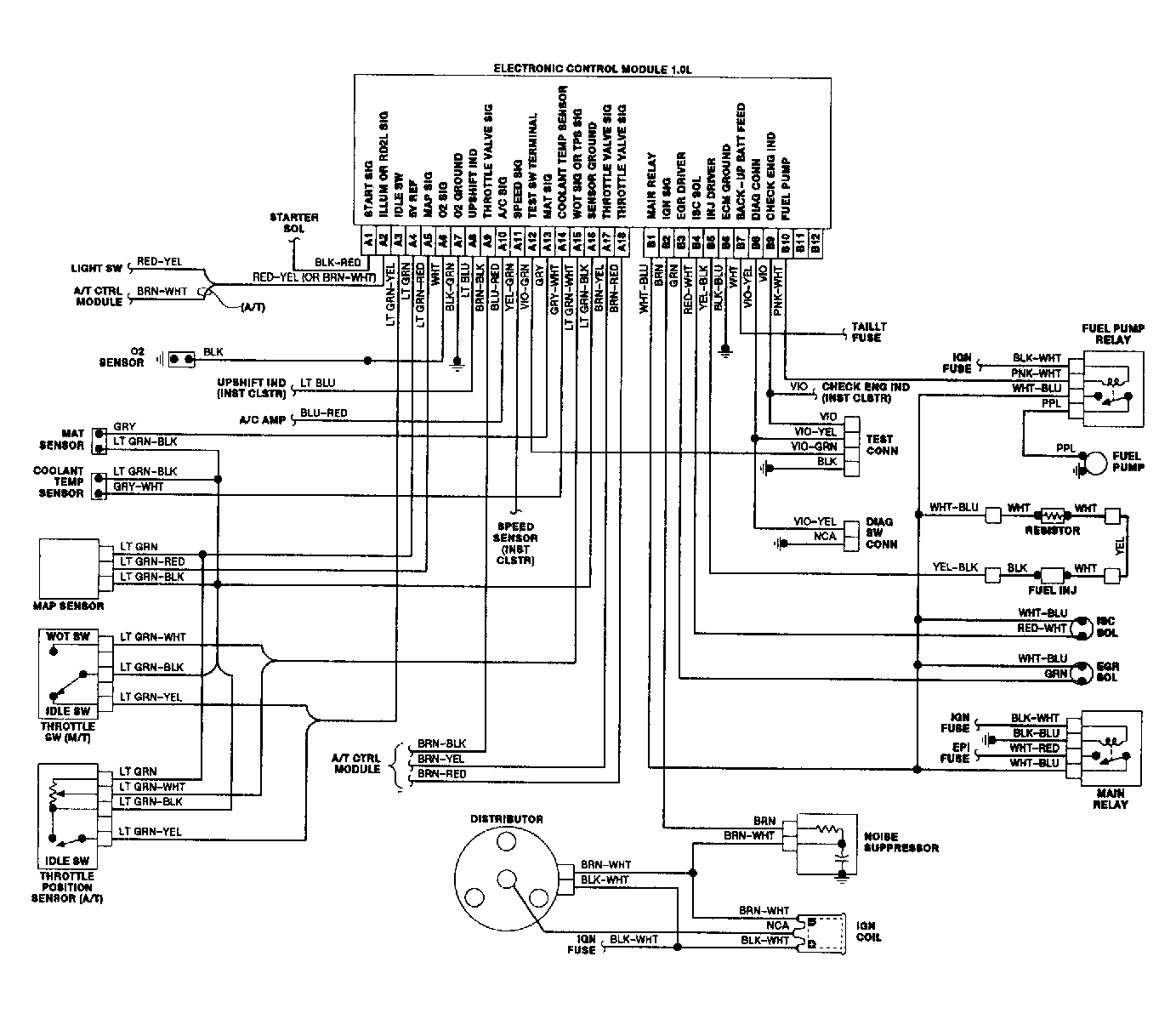

Fig 2: Geo Metro LSi 1.0L

G121738

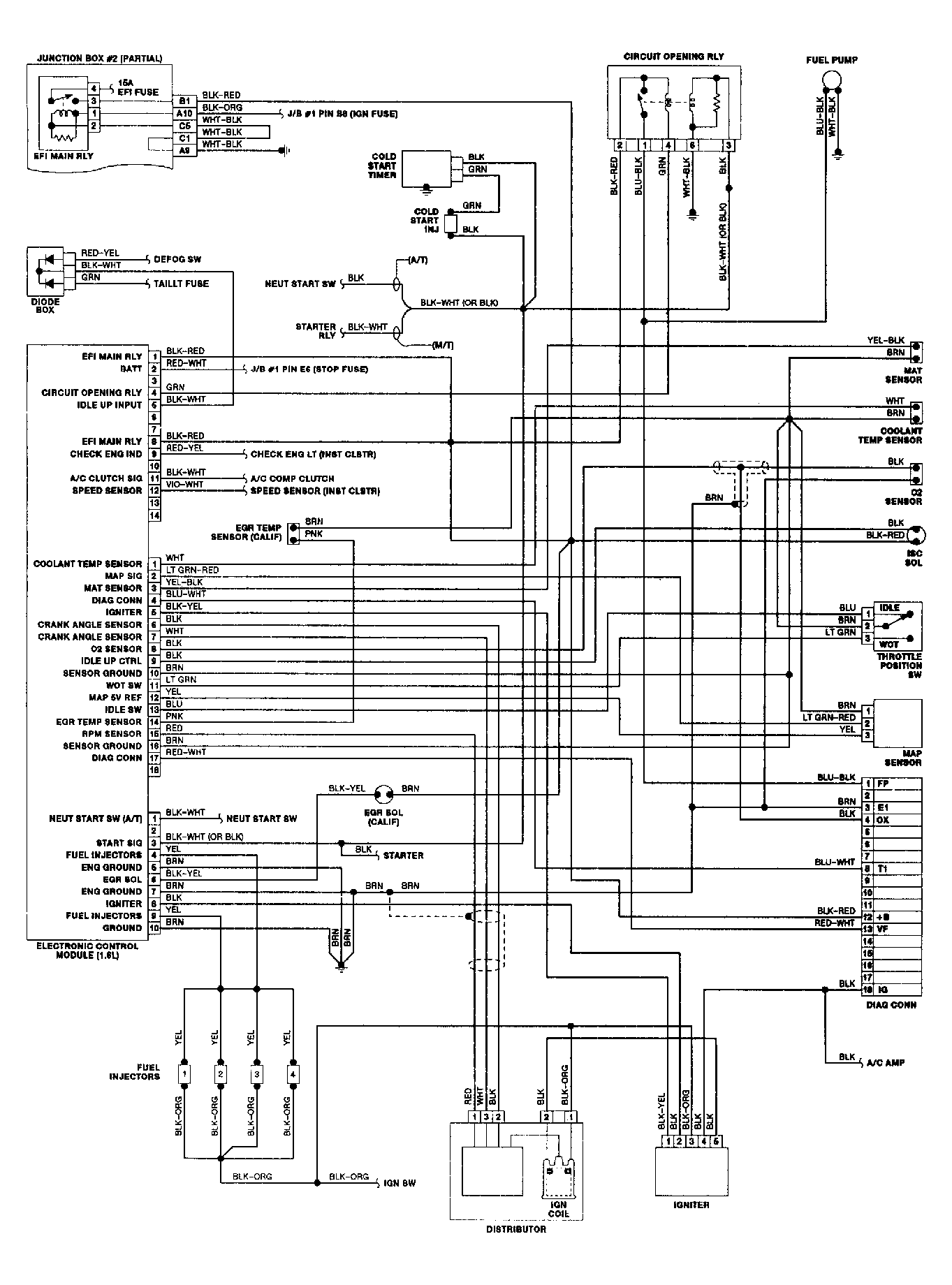

Fig 3: Geo Prizm 1.6L

G121739

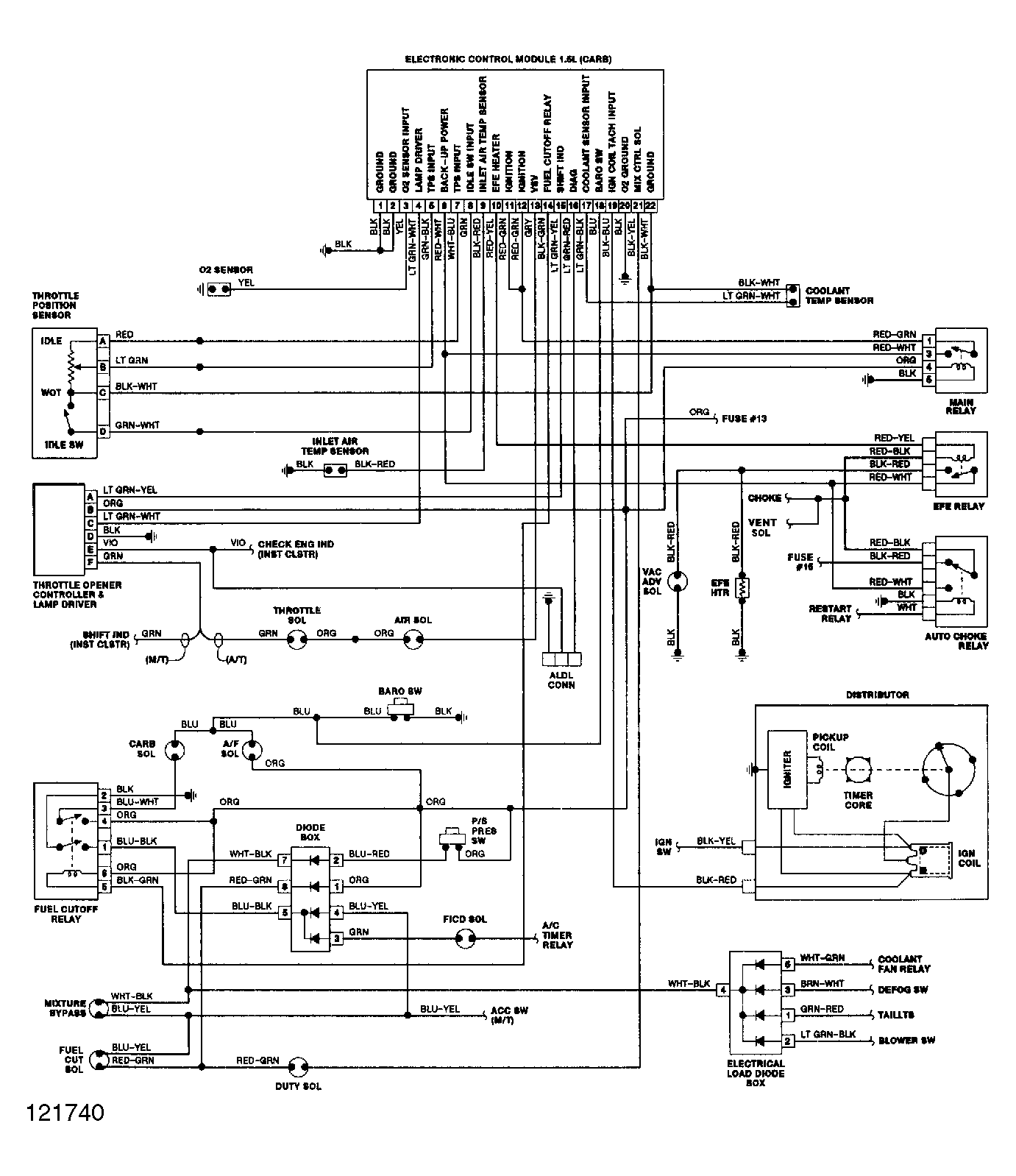

Fig 4: Geo Spectrum 1.5L

G121740

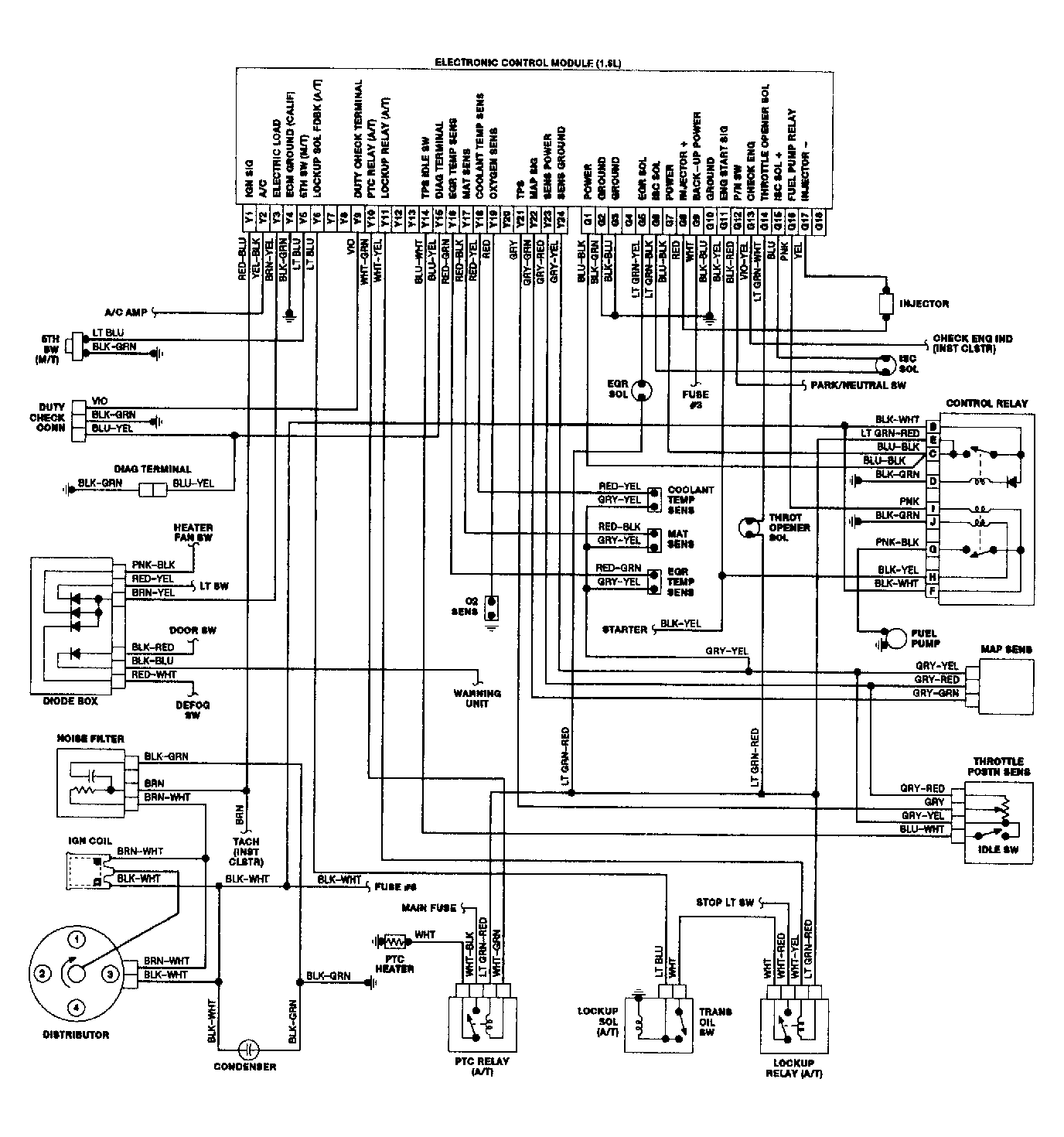

Fig 5: Geo Tracker 1.6L

G121741
