EXPERTEC TSB (89-C-20)

Publication date: 1990-07-24
Reference number: 89-C-20

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-C-20, Date of Issue: 07/24/90

Chevrolet 89-C-20

07/24/1990

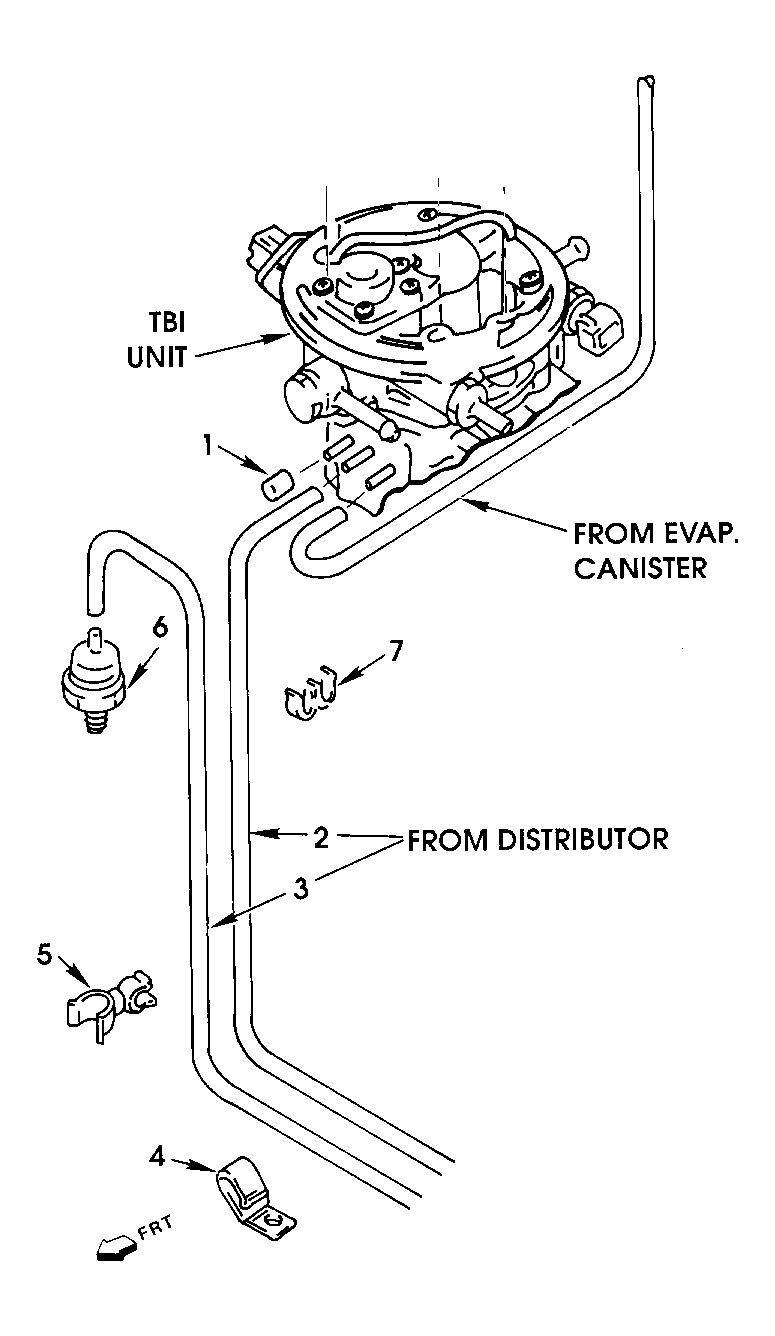

Fig 1: Graphic

Fig 2: Graphic

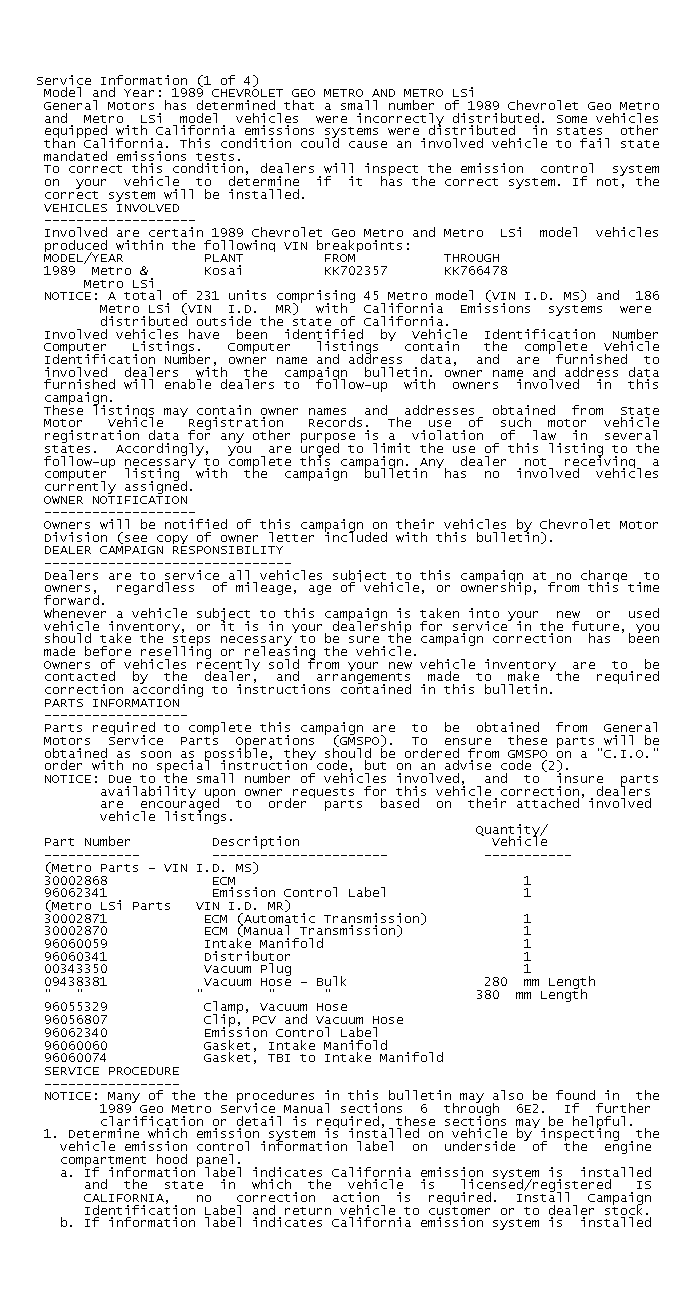

Fig 3: Service Information (1 of 4)

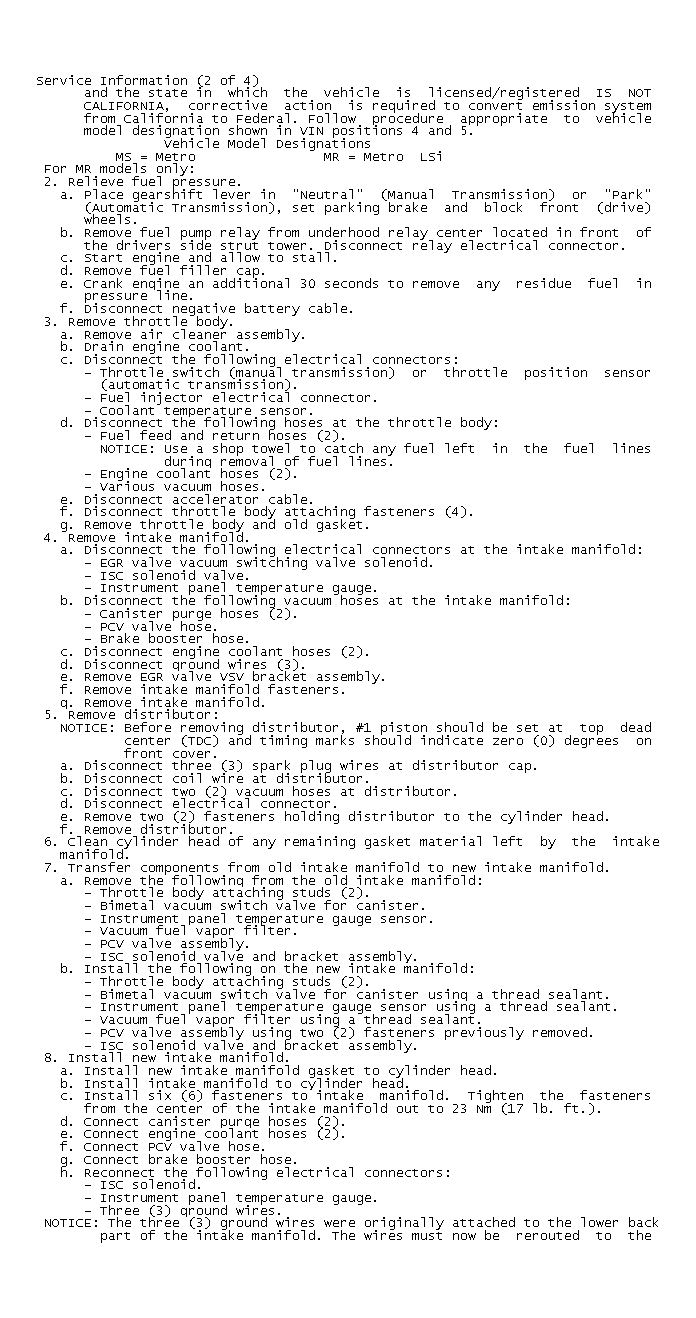

Fig 4: Service Information (2 of 4)

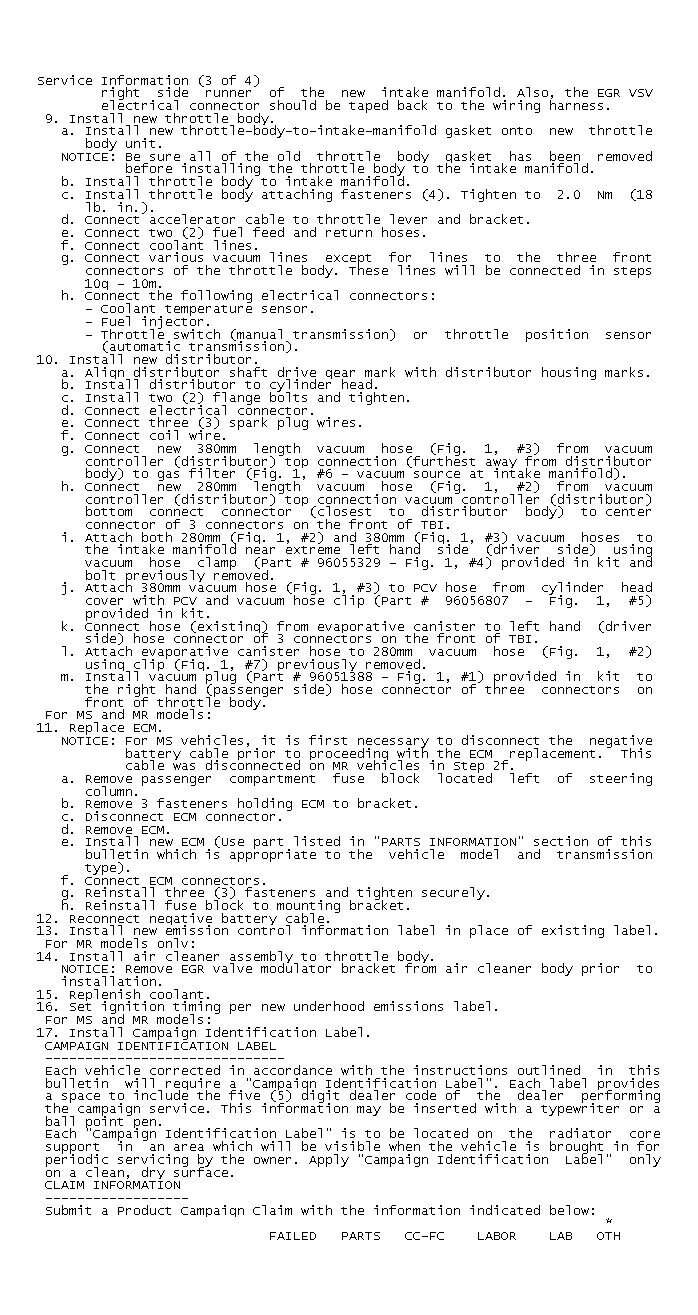

Fig 5: Service Information (3 of 4)

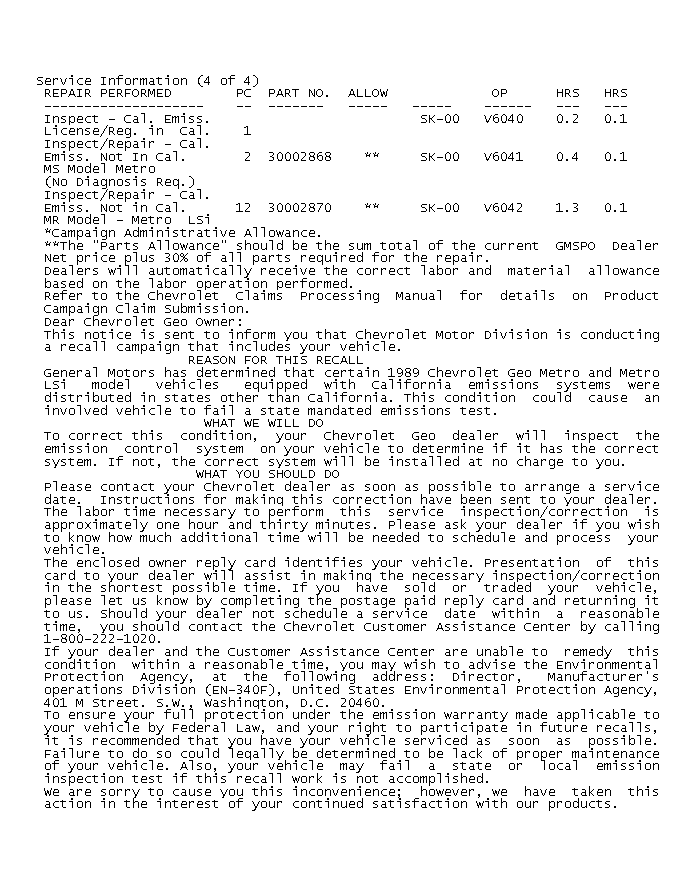

Fig 6: Service Information (4 of 4)
