Throttle Position Sensor Check

Disconnect coupler(s) from A/T control module. For solenoid "D" check, place voltmeter probes on coupler terminals from harness side. See Fig 5 .

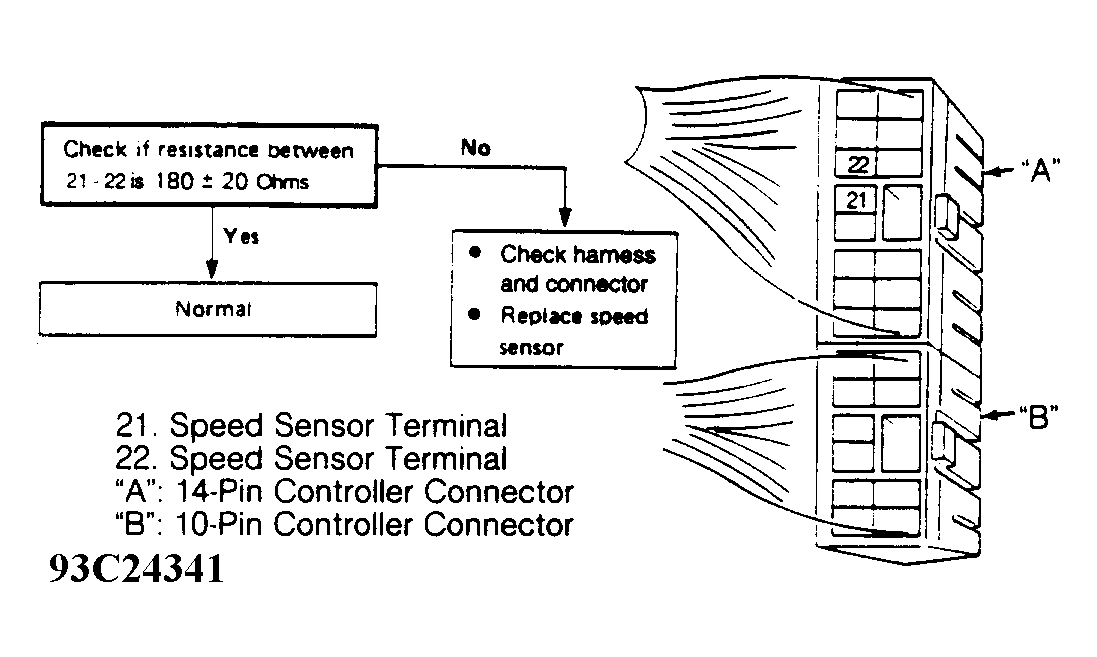

Fig 1: Performing Speed Sensor "B" Check

Courtesy of SUZUKI OF AMERICA CORP.

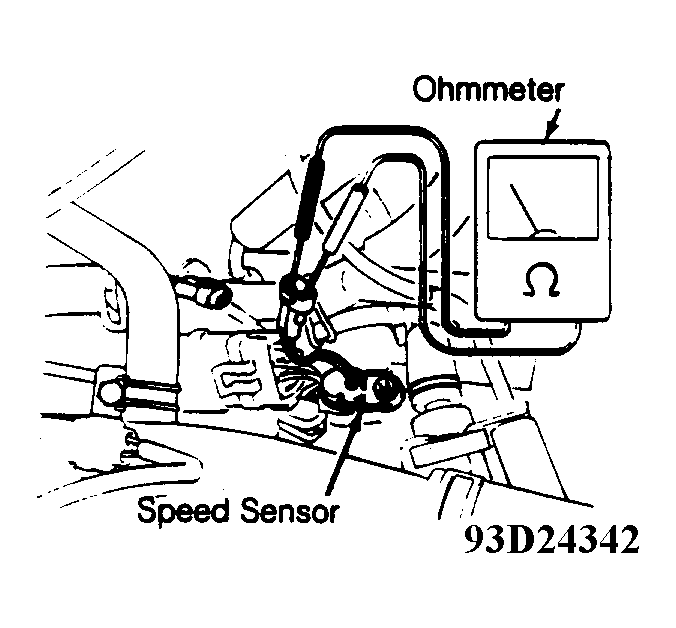

Fig 2: Checking Speed Sensor Resistance

Courtesy of SUZUKI OF AMERICA CORP.

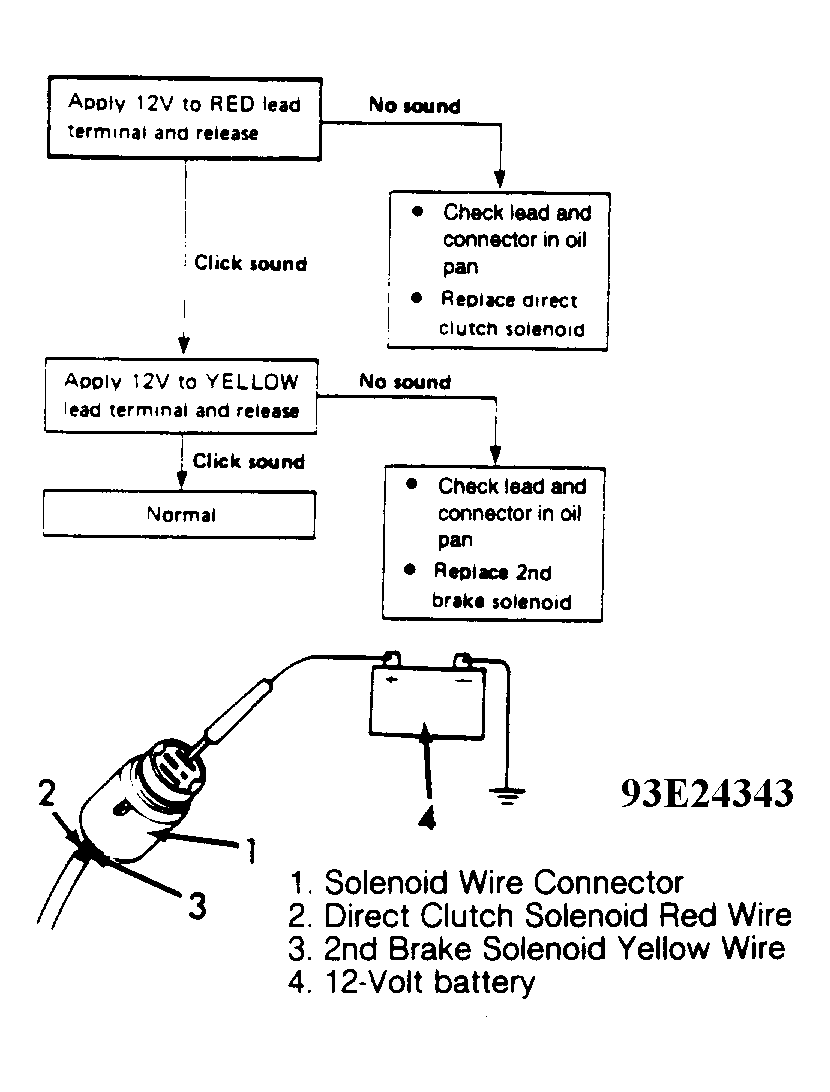

Fig 3: Checking Shift Solenoid Circuit

Courtesy of SUZUKI OF AMERICA CORP.

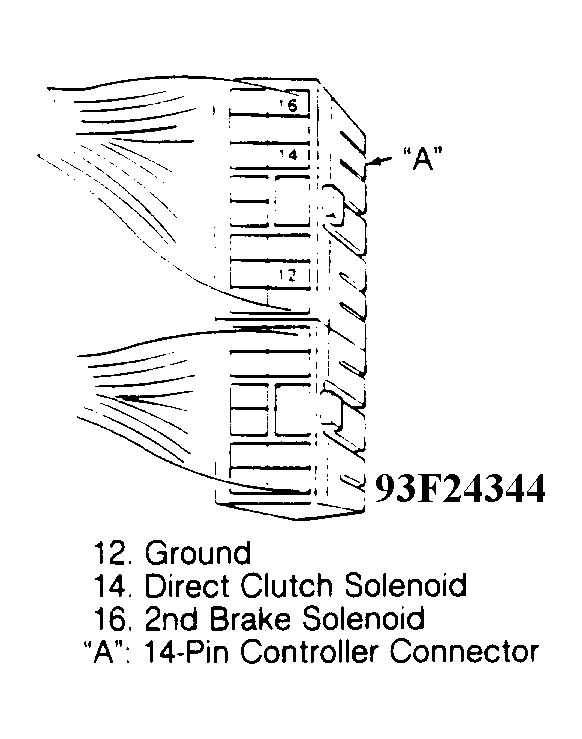

Fig 4: Performing Shift Solenoid "C" Check

Courtesy of SUZUKI OF AMERICA CORP.

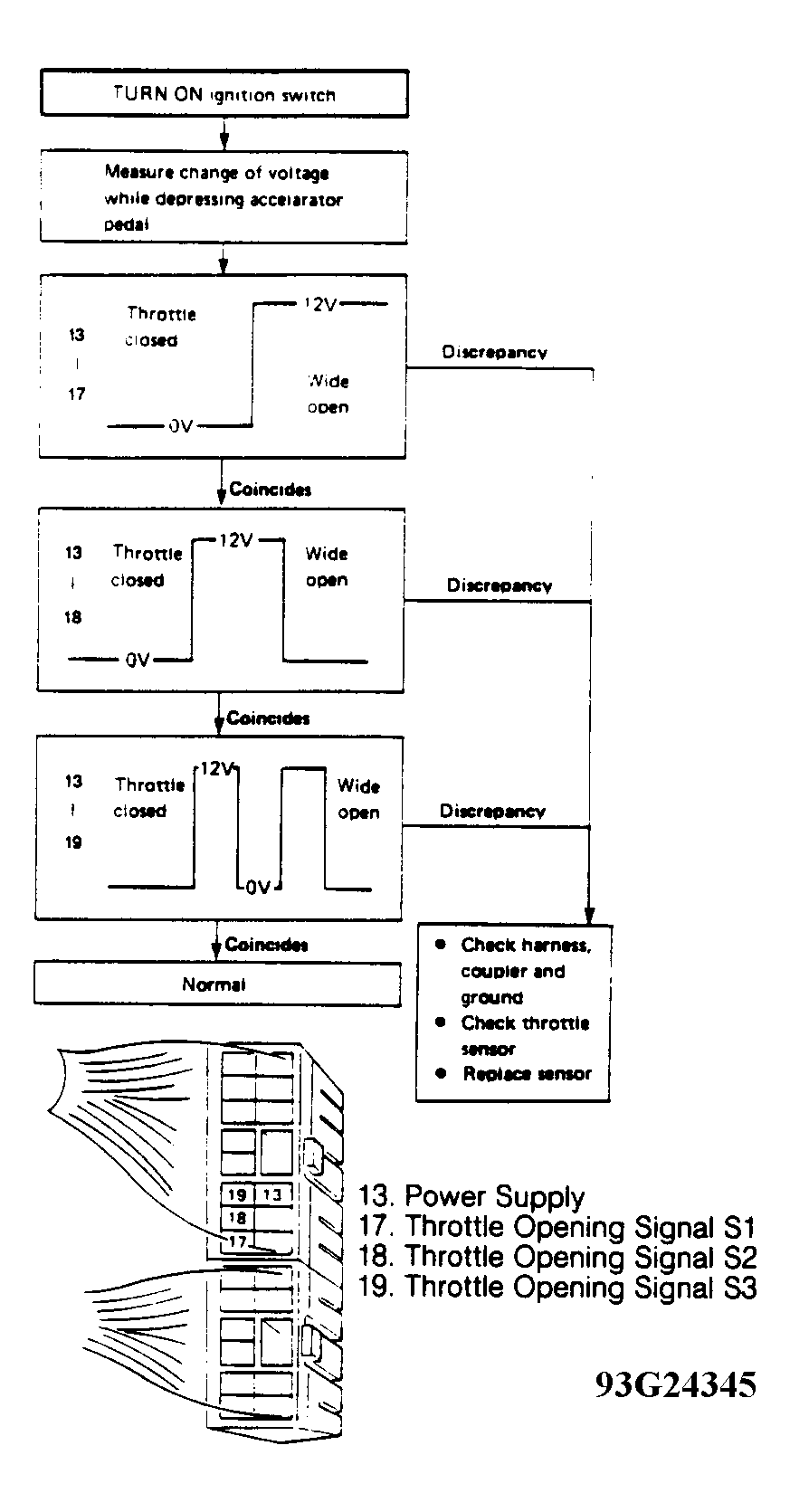

Fig 5: Performing Throttle Position Sensor "D" Check

Courtesy of SUZUKI OF AMERICA CORP.
