Shift Lever Switch Checks

Turn ignition switch to OFF position. Disconnect connectors from A/T control module. For A-1, A-2, A-3,A-4 and N-P testing, place ohmmeter probes on coupler terminals from harness side. See Fig 5 -15.
Shift lever switch can be checked for continuity in each shift position. See Fig 10 .

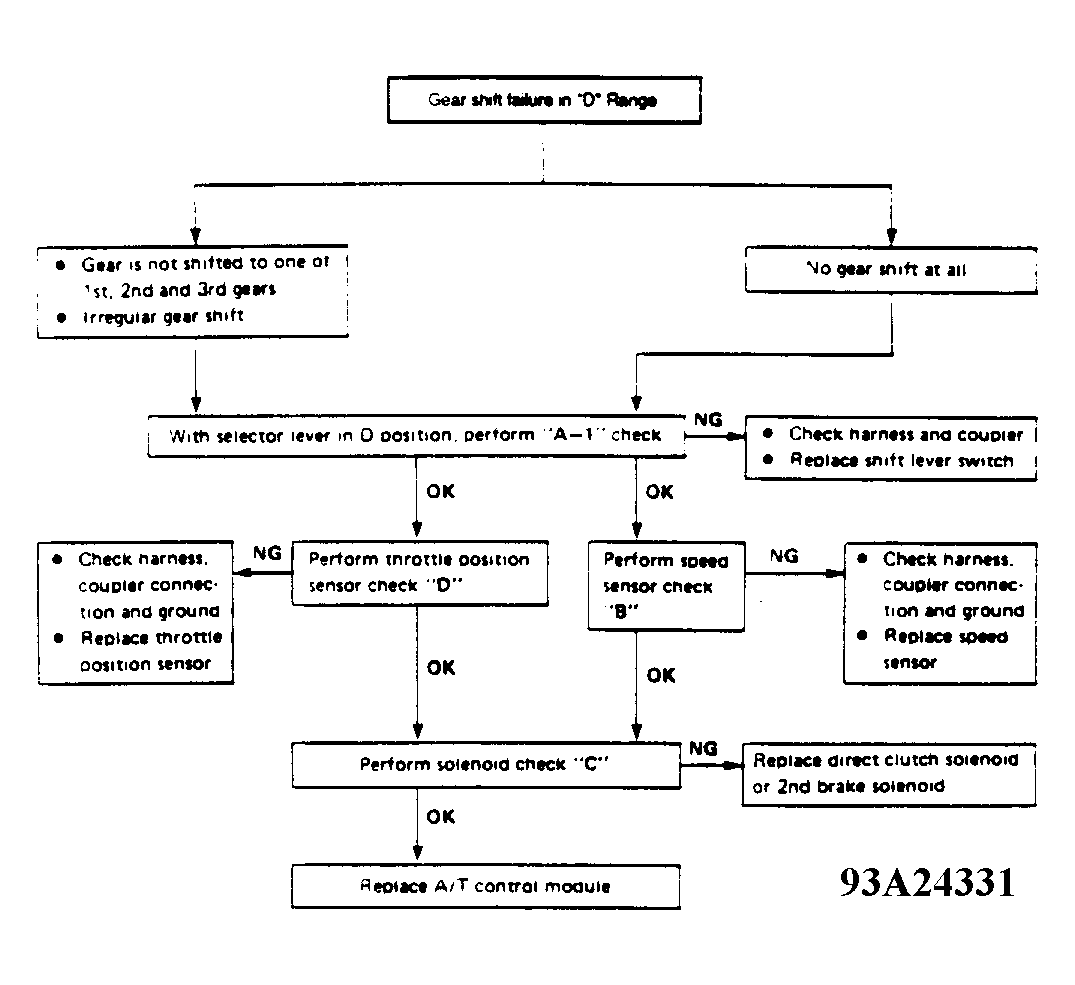

Fig 1: Trouble Shooting Gear Shift Failure In "D" Range

G93A24331

Courtesy of SUZUKI OF AMERICA CORP.

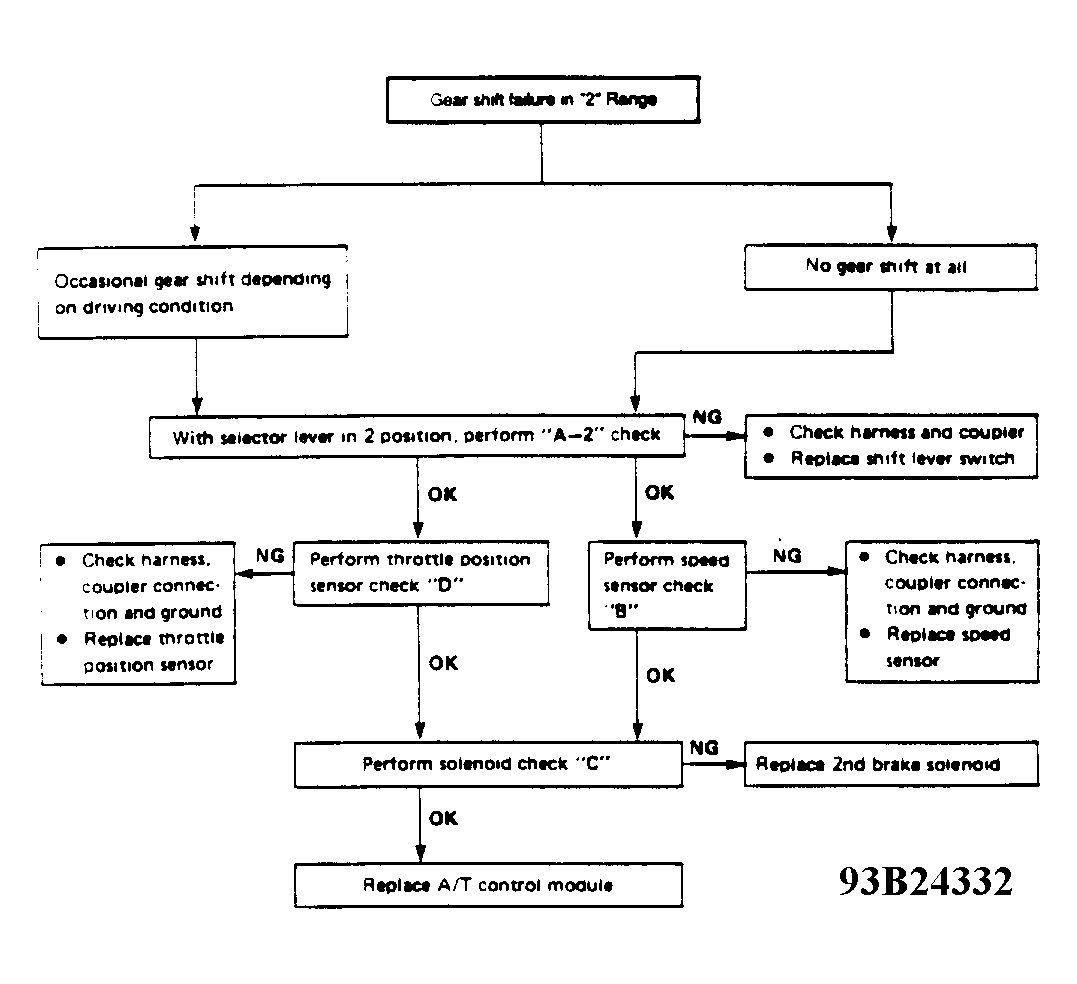

Fig 2: Trouble Shooting Gear Shift Failure In "2" Range

G93B24332

Courtesy of SUZUKI OF AMERICA CORP.

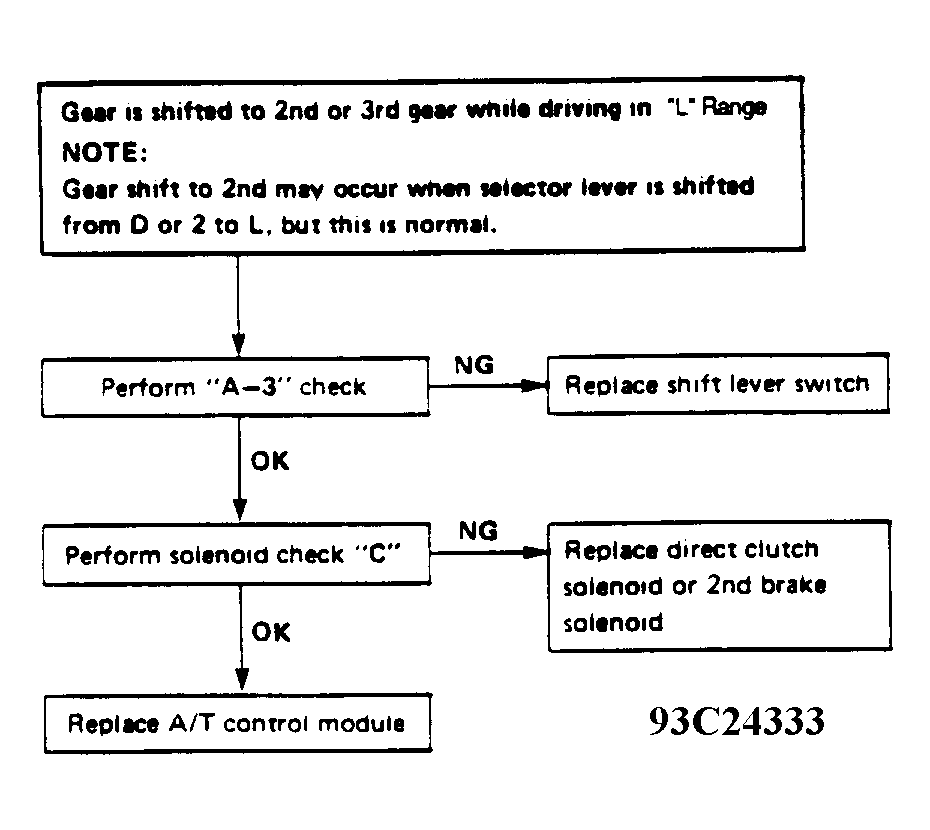

Fig 3: Trouble Shooting Gear Shift Failure In "L" Range

G93C24333

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Trouble Shooting Gear Shift Failure In "R" Range

G93D24334

Courtesy of SUZUKI OF AMERICA CORP.

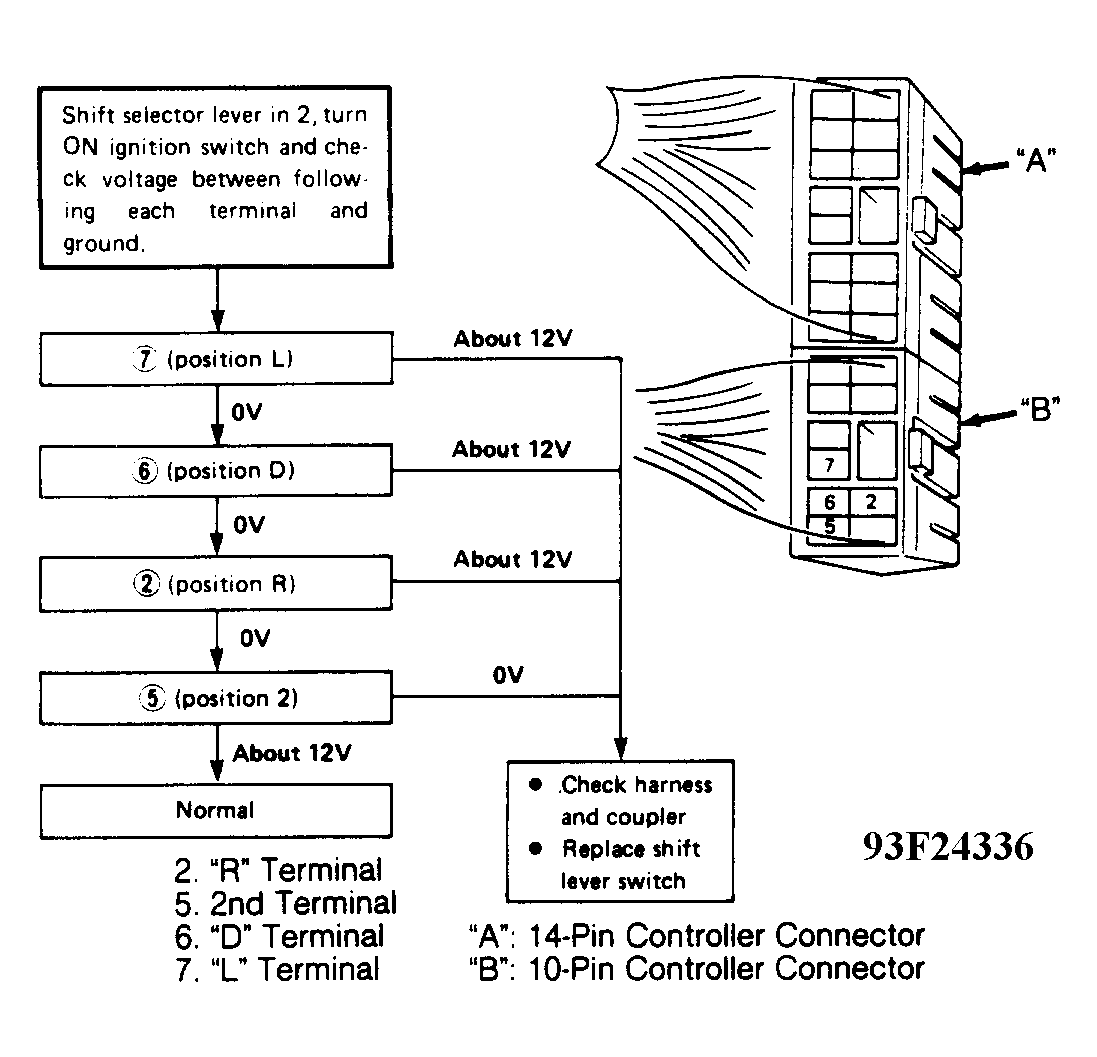

Fig 5: Performing A-2 Shift Lever Switch Check

G93F24336

Courtesy of SUZUKI OF AMERICA CORP.

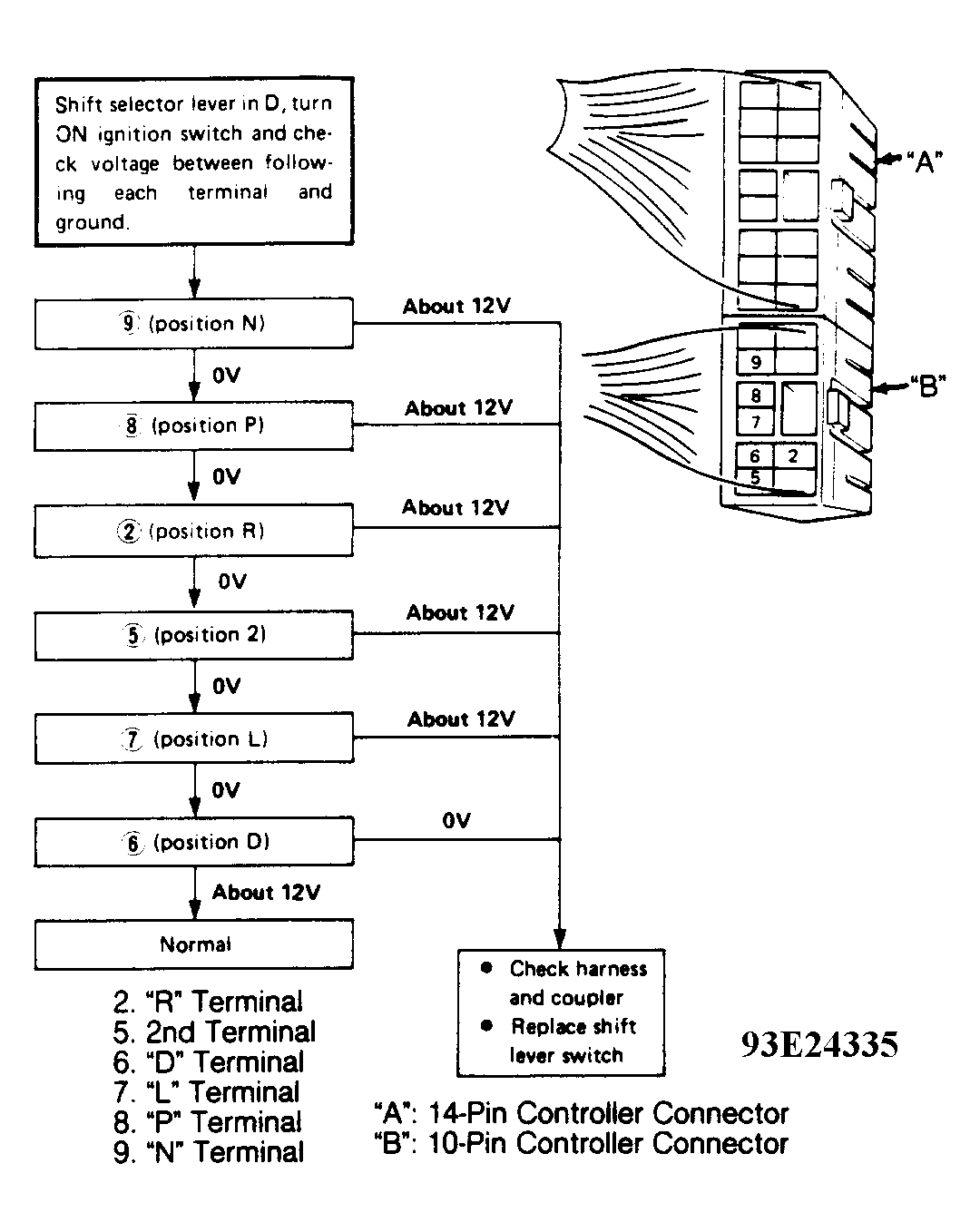

Fig 6: Performing A-1 Shift Lever Switch Test

G93E24335

Courtesy of SUZUKI OF AMERICA CORP.

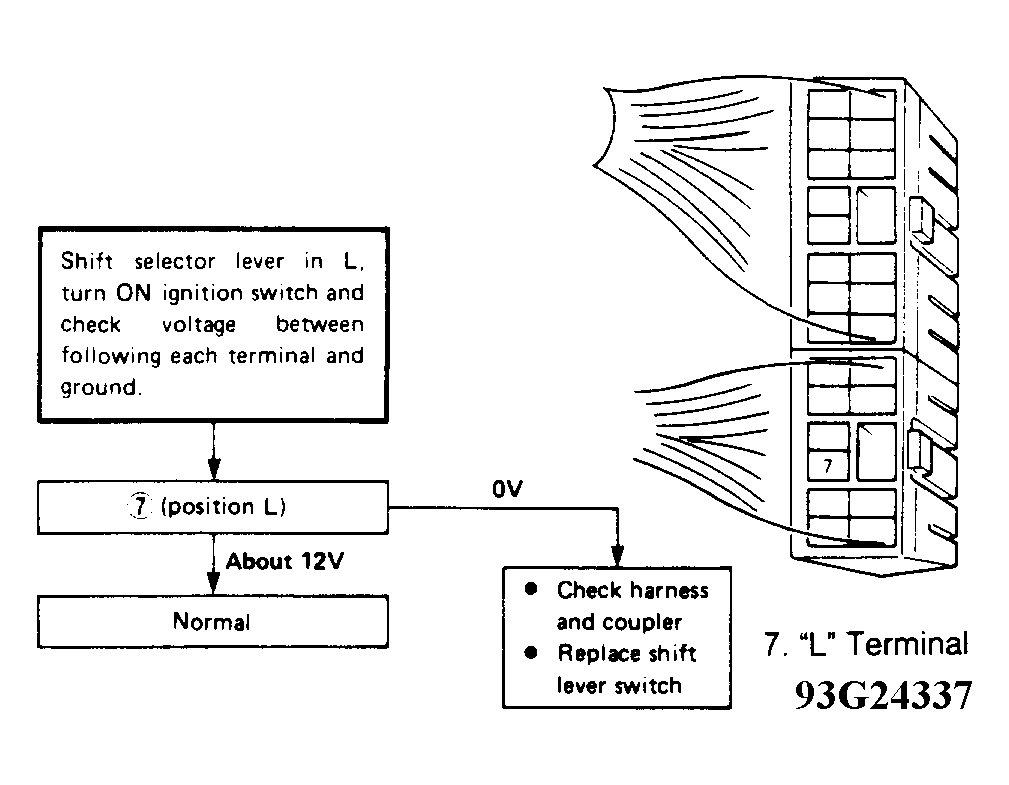

Fig 7: Performing A-3 Shift Lever Switch Check

G93G24337

Courtesy of SUZUKI OF AMERICA CORP.

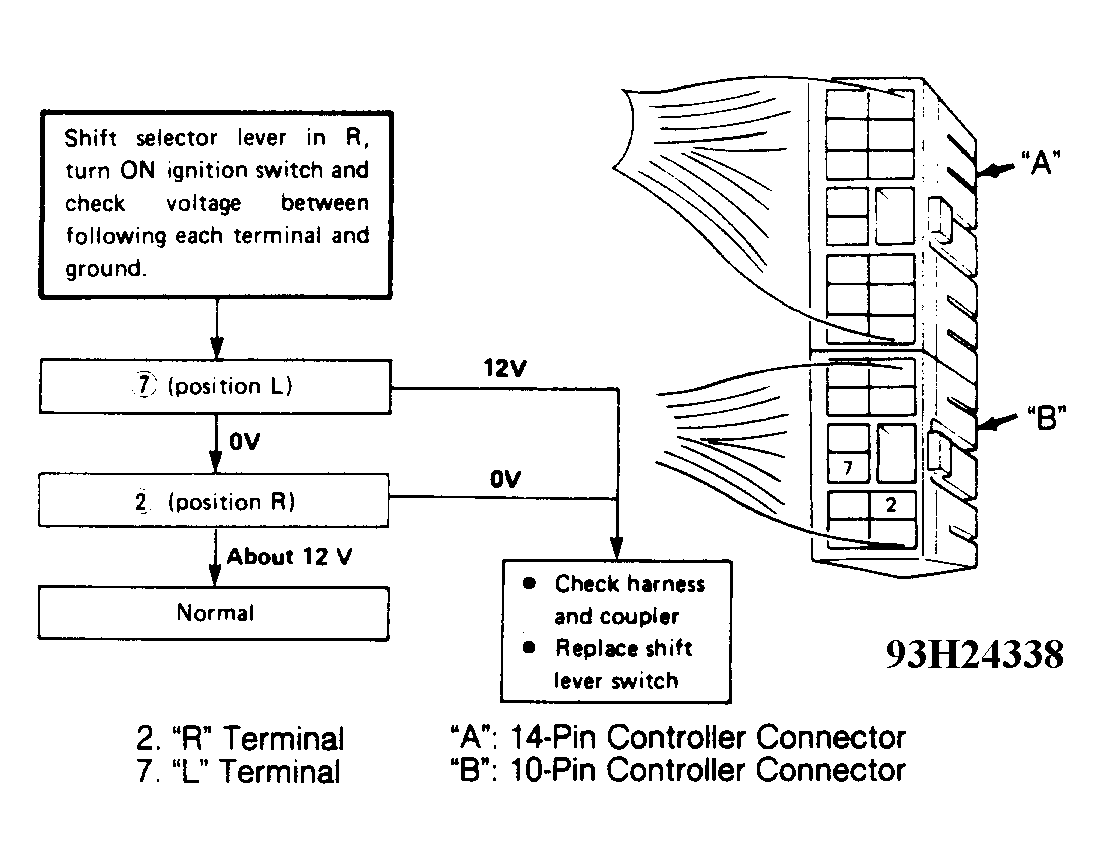

Fig 8: Performing A-4 Shift Lever Switch Check

G93H24338

Courtesy of SUZUKI OF AMERICA CORP.

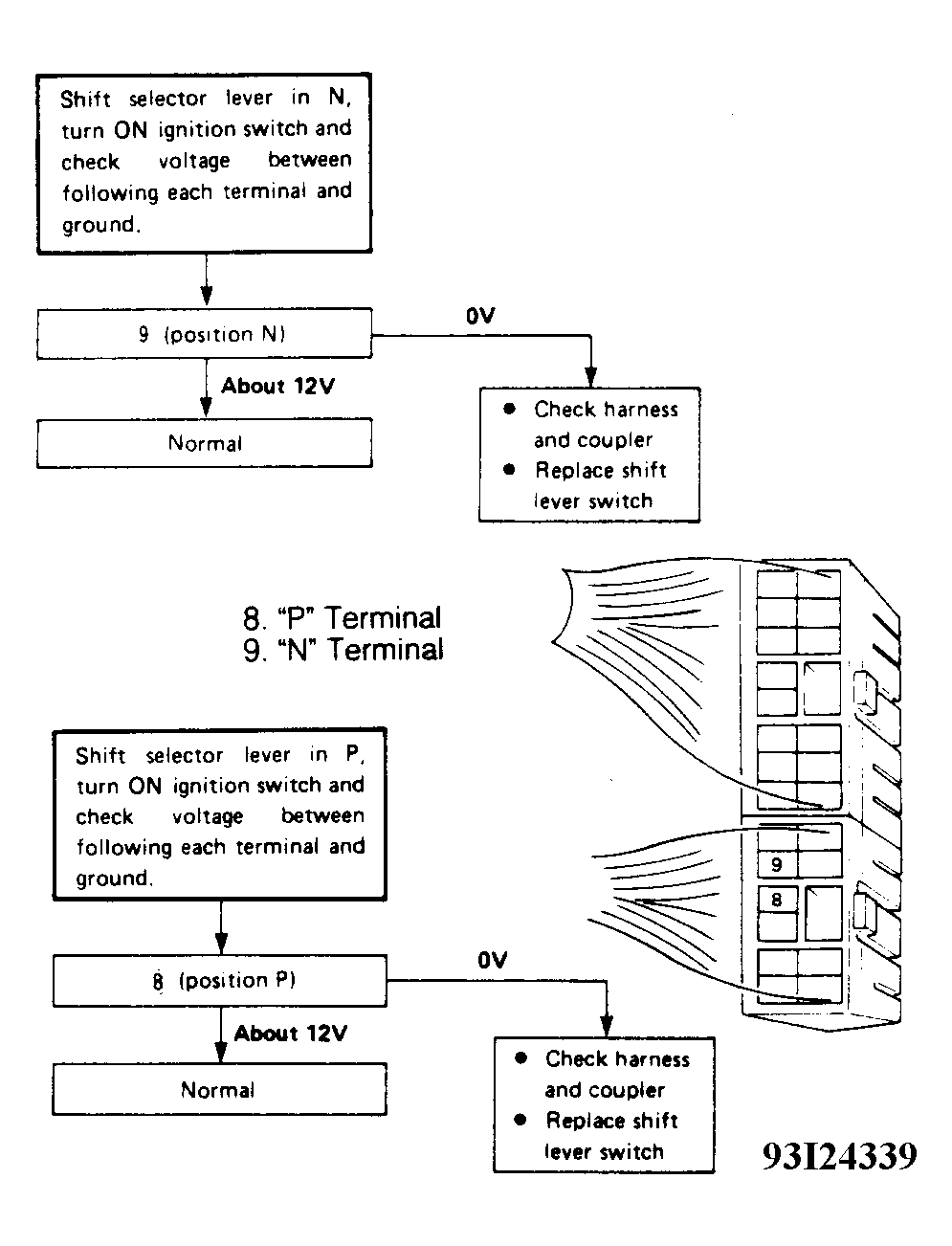

Fig 9: Performing N-P Shift Lever Switch Check

G93I24339

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Shift Lever Switch Connection & Lead Wire Color Continuity

G93B24340

Courtesy of SUZUKI OF AMERICA CORP.
