Diagnostic Aids

Normal O2 sensor voltage will vary from 0-.9 volt. Code 13 will be set if voltage is low or high all the time. If code is intermittent, see TESTS W/O CODES article.

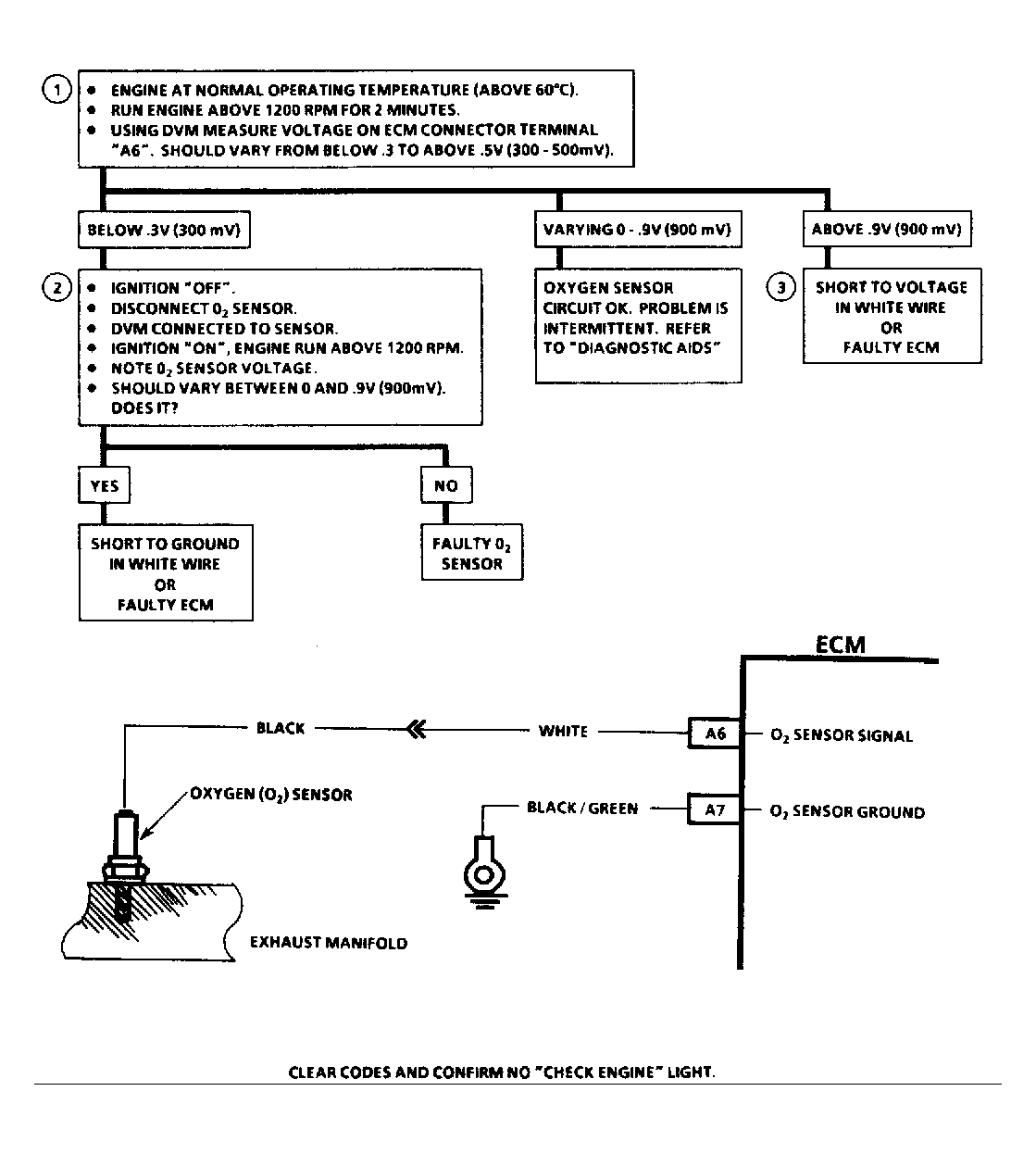

Fig 1: Code 13 Circuit Diagram & Flow Chart
G121614
