Connector And Terminal Information

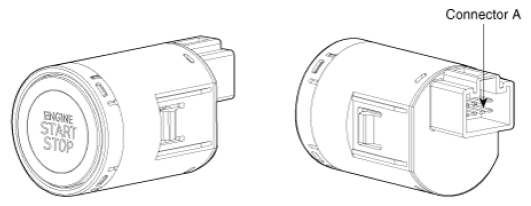

G16856272Courtesy of HYUNDAI MOTOR AMERICA
Connector A No Description No Description
G16856273Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch1 (OUT) 6 Ground
2 - 7 SSB switch 2
3 SSB illumination (+) 8 SSB illumination (-)
4 Immobilizer power 9 -
5 - 10 Immobilizer power
