Removal And Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

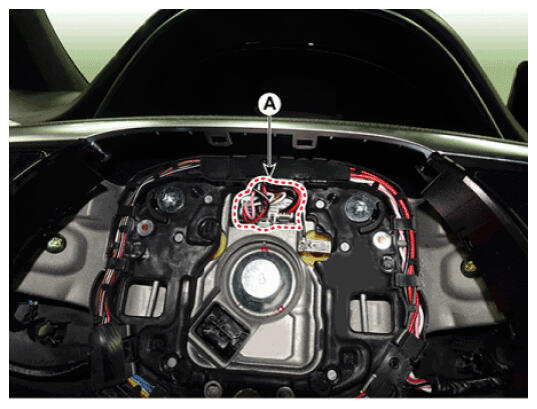

  4. Disconnect the steering wheel connector (A).
    G16854757Courtesy of HYUNDAI MOTOR AMERICA

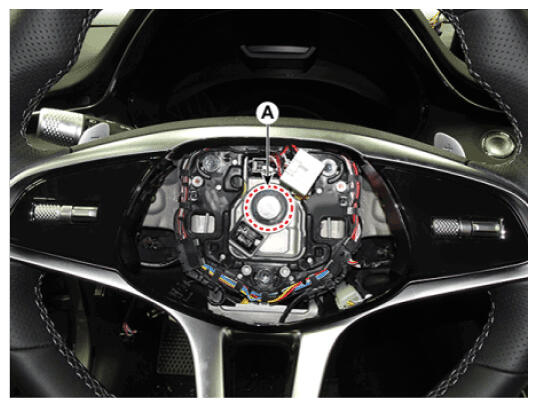

  5. Remove the steering wheel after loosening the mounting bolt (A).

    Tightening torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

    G16854758Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not use the hammer for disconnecting on the steering column not to damage the steering column.
    • Do not reuse the steering lock bolt.

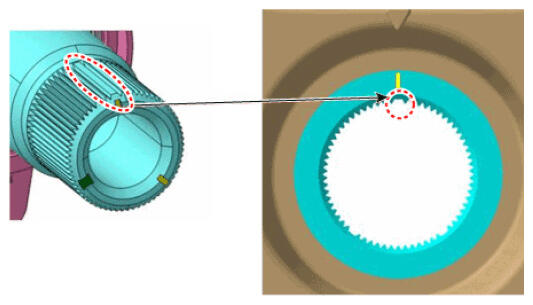

    • When assembling, match the gear teeth as shown in the below illustration.
      G16854759Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedures.
