Connector assembly status test

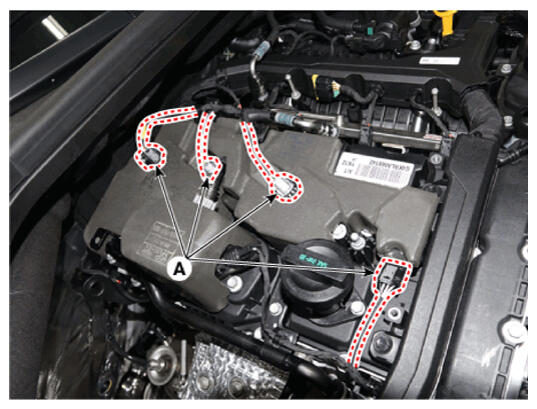

  1. Disconnect the ignition coil connectors (A) and reinstall it.
    G16846797Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the ignition coil form (A).
    G16846798Courtesy of HYUNDAI MOTOR AMERICA
    G16846799Courtesy of HYUNDAI MOTOR AMERICA
