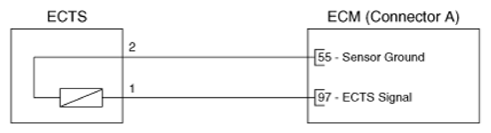

Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly side

G16846926

Courtesy of HYUNDAI MOTOR AMERICA
