Removal And Installation: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

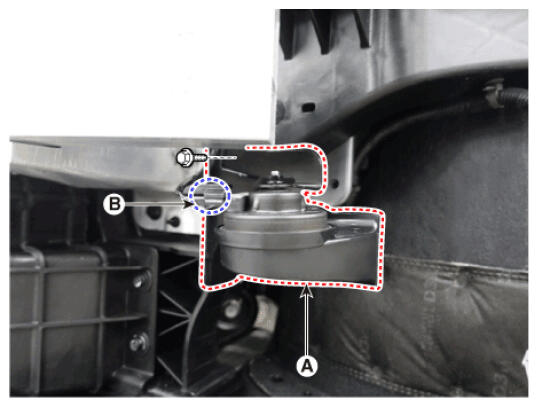

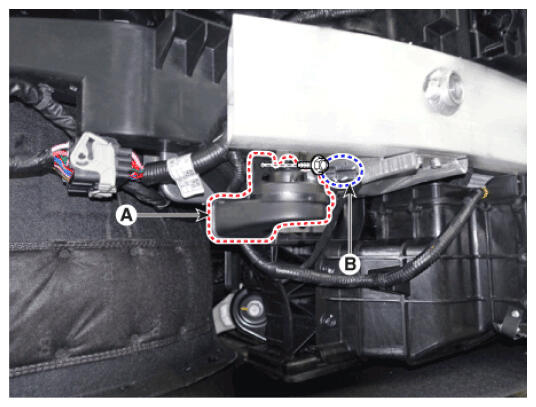

  2. Remove the horn (A) after loosening mounting bolt and disconnecting horn connector (B).
G16855683Courtesy of HYUNDAI MOTOR AMERICA
G16855684Courtesy of HYUNDAI MOTOR AMERICA
