Components And Components Location: Components

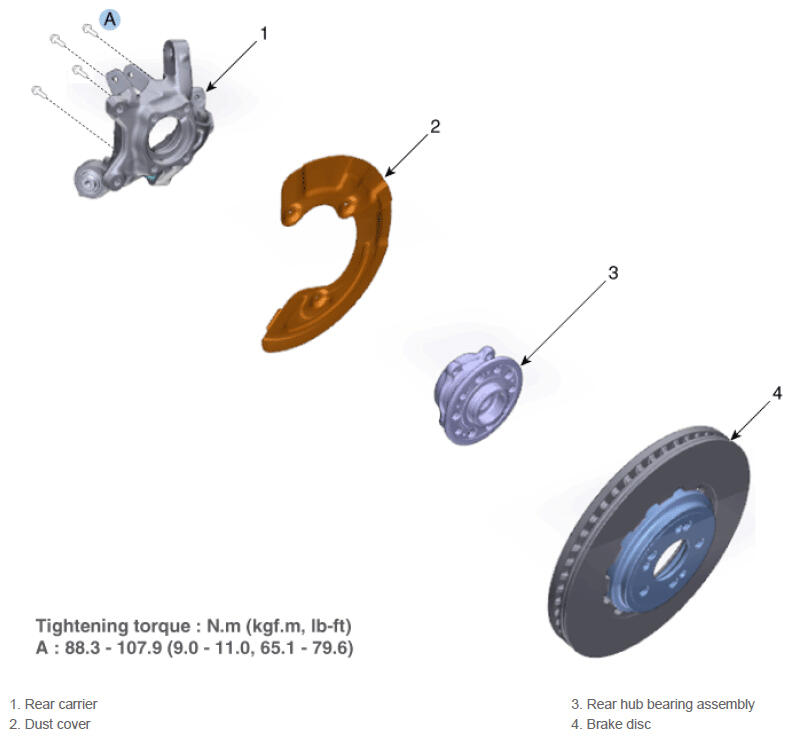

Fig 1: Rear Hub And Carrier Components Location With Torque Specifications

G16854261

Courtesy of HYUNDAI MOTOR AMERICA
