Components And Components Location: Components

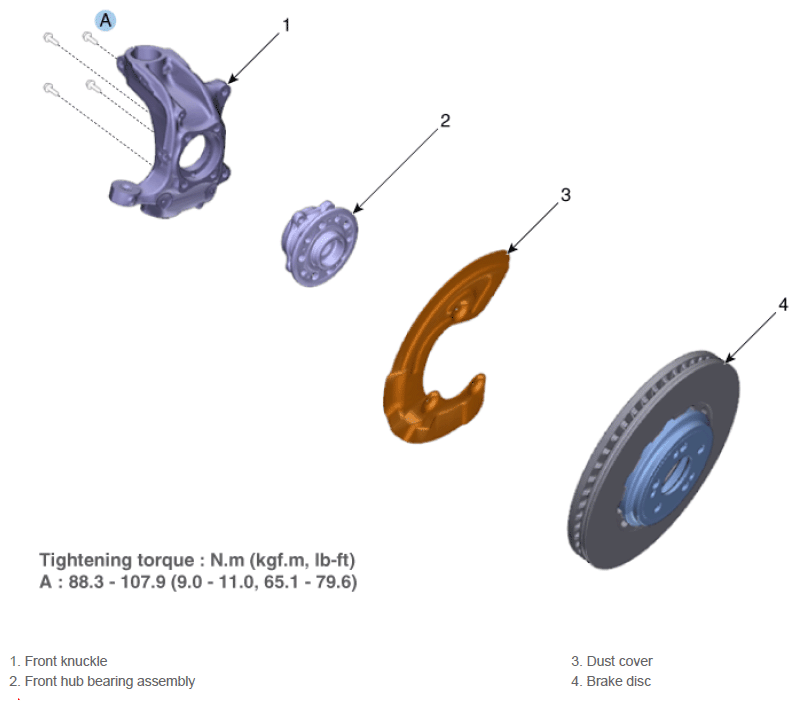

Fig 1: Front Hub, Knuckle And Tone Wheel Components Location With Torque Specifications

G16854236

Courtesy of HYUNDAI MOTOR AMERICA
