Removal And Installation: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

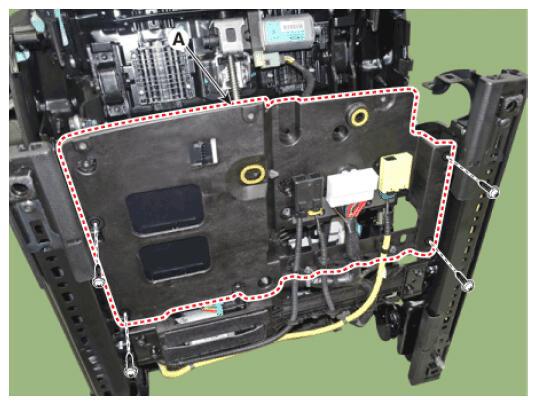

  3. Remove the seat lower cover (A) after loosening mounting screws.
    G16855821Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the IMS unit connectors (A).
    G16855822Courtesy of HYUNDAI MOTOR AMERICA
