Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Hyundai Elantra N. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

[N Line]

NOTE:

Take care not to bend or scratch the bumper cover and panels.

Remove the front bumper assembly.
(Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

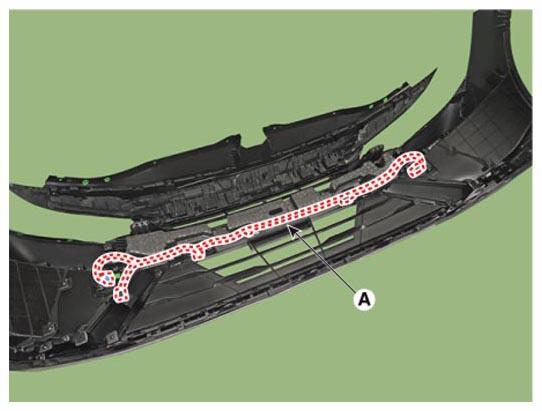

Remove the front bumper wiring (A).

Courtesy of HYUNDAI MOTOR AMERICA

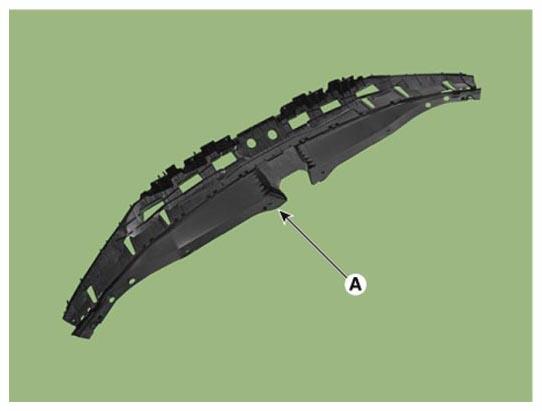

Remove the front bumper energy absorber (A).

Courtesy of HYUNDAI MOTOR AMERICA

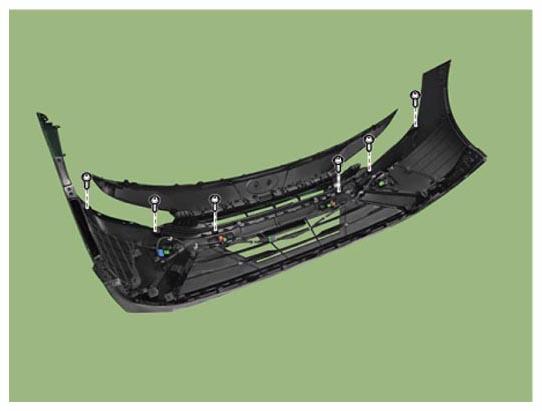

Remove the radiator grill upper cover (A), after removing the screws.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

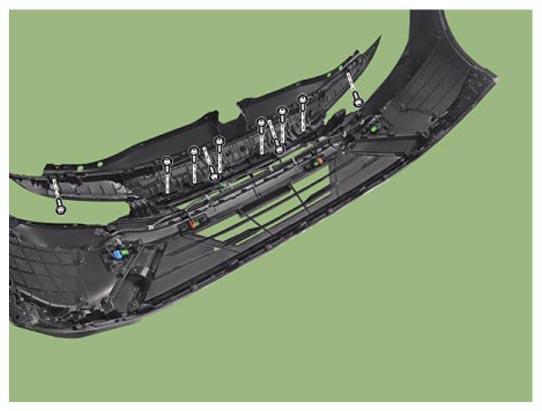

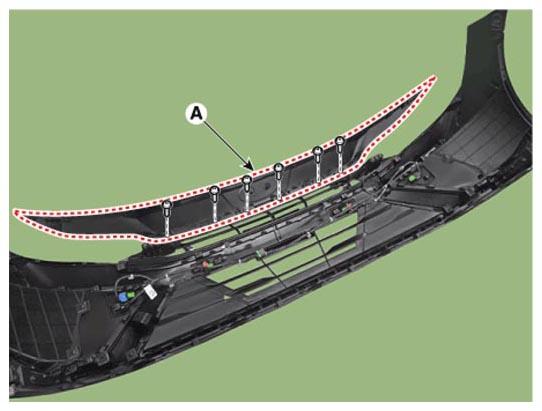

Remove the front bumper upper cover (A), after removing the screws.

Courtesy of HYUNDAI MOTOR AMERICA

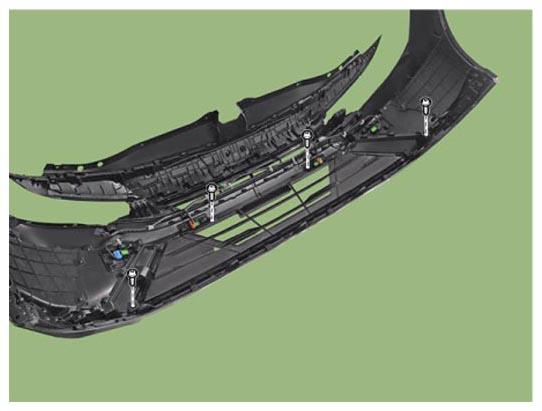

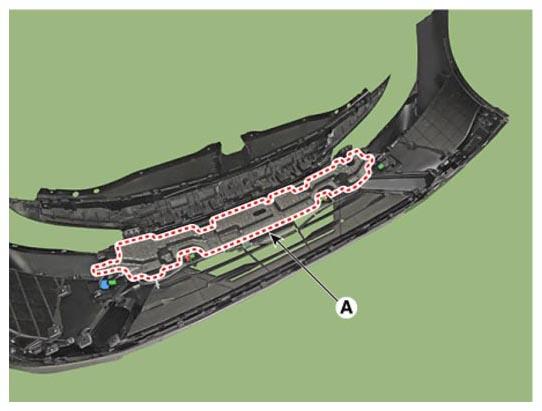

Remove the front bumper grill (A), after removing the screws.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

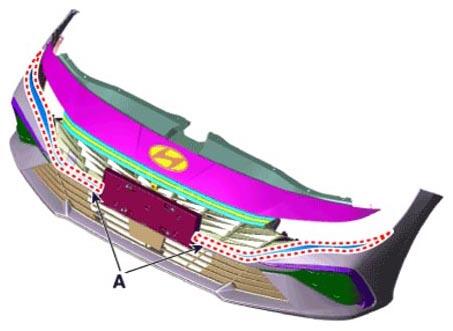

Remove the mounting screws, remove the front bumper molding (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

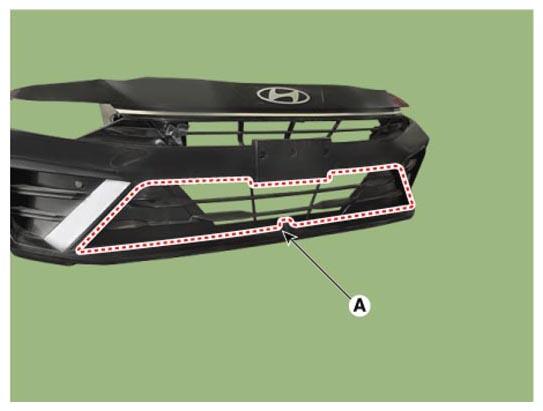

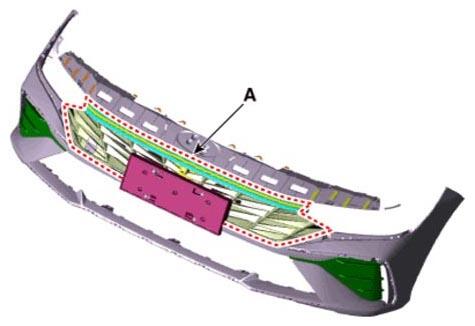

Remove the mounting screws, remove the radiator grill (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
