Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

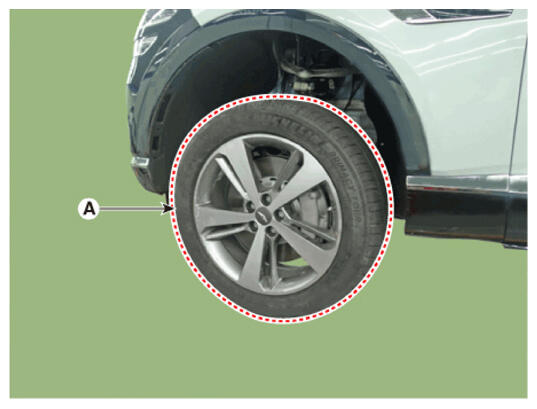

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

NOTE:

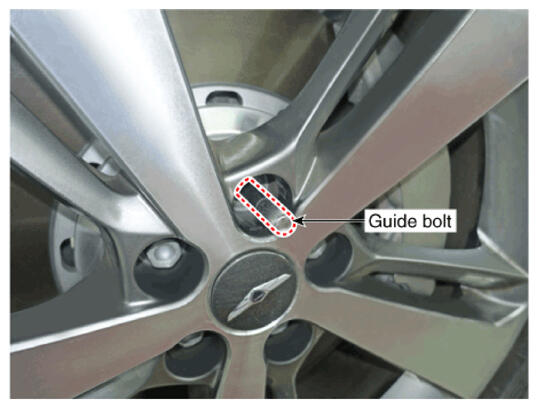

Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

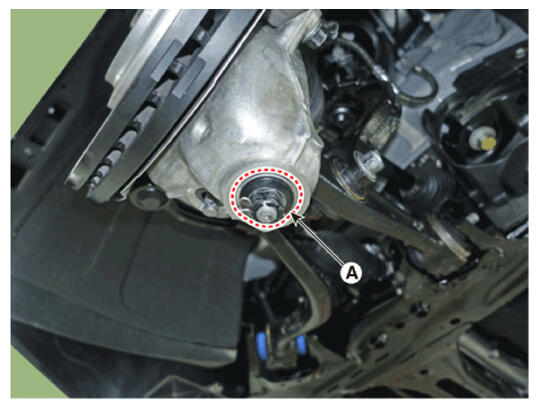

Remove the snap pin and then loosen the castle nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

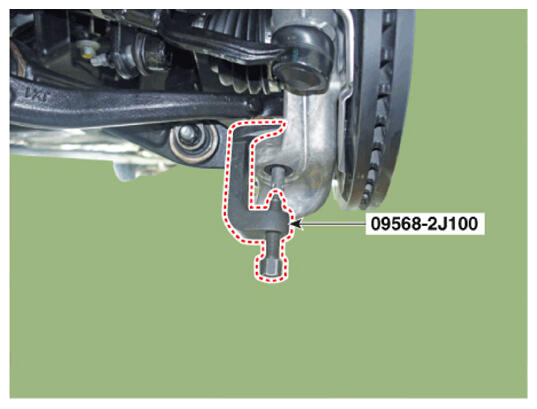

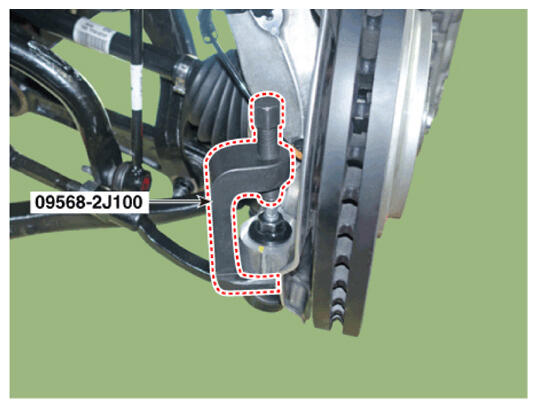

Remove the tension arm ball joint by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

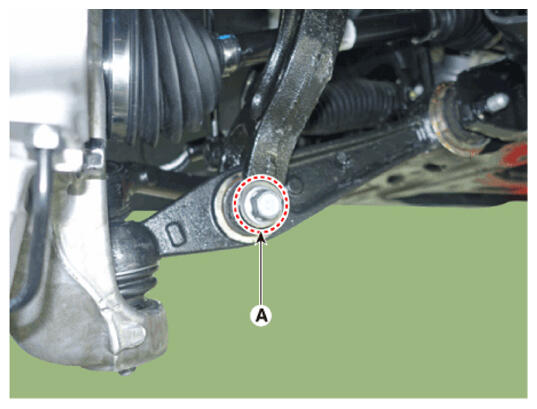

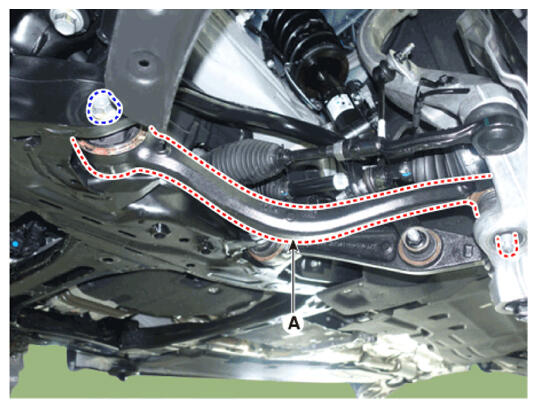

Remove the tension arm (A) after loosening the bolt and nut.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

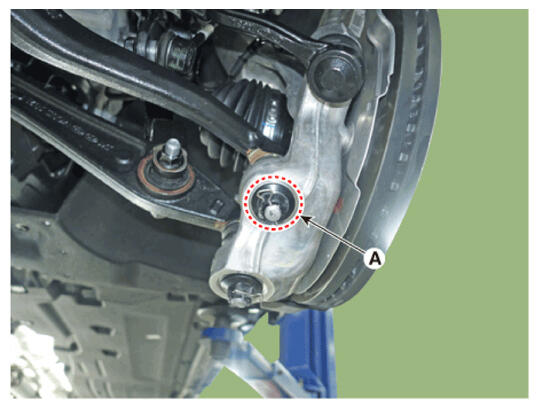

Remove the snap pin and then loosen the castle nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

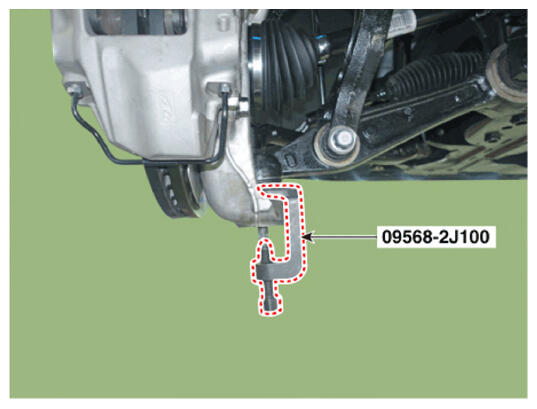

Remove the lateral arm ball joint by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the fork bracket mounting bolt (A).
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

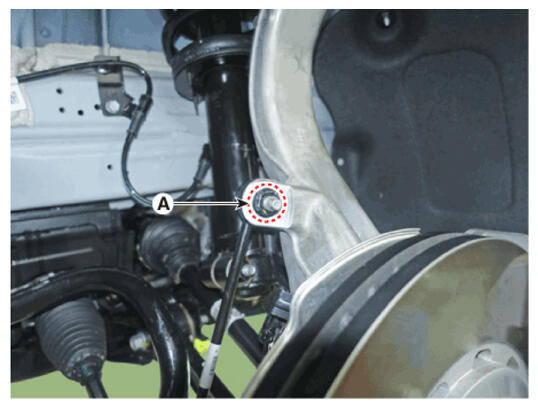

Loosen the nut (A) and then remove the stabilizer link from the front knuckle.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:
- When loosening the nut, fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.
Courtesy of HYUNDAI MOTOR AMERICA

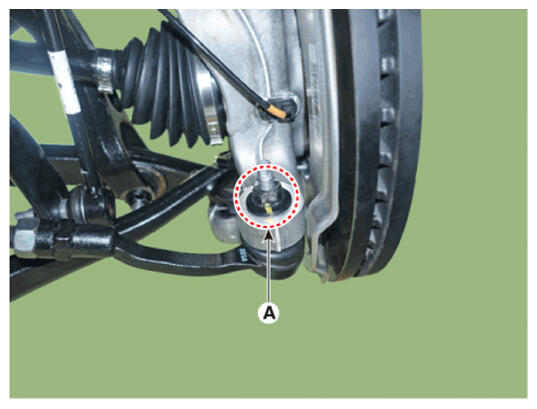

Remove the split pin and then loosen the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the tie rod end ball joint (A) by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

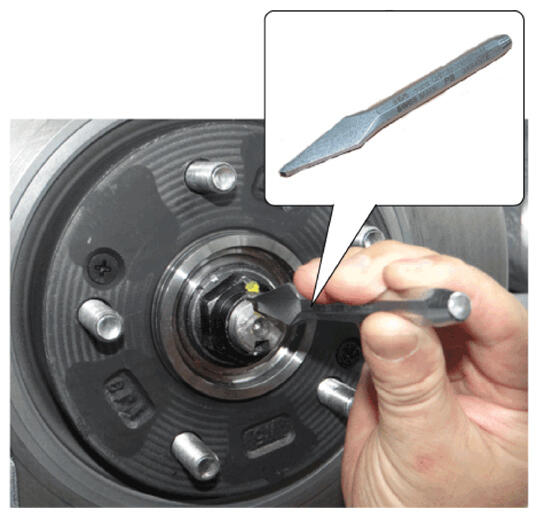

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

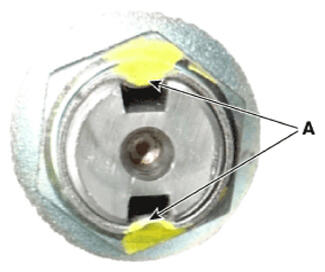

- If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.
Courtesy of HYUNDAI MOTOR AMERICA

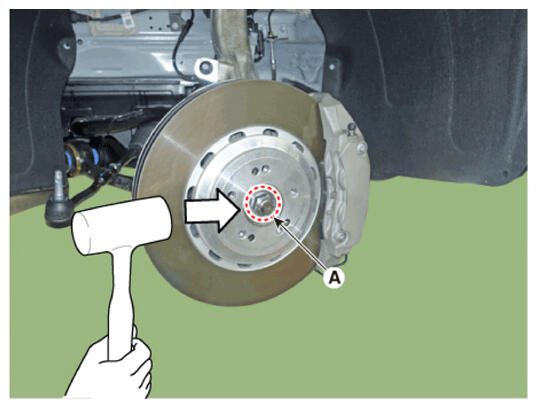

Loosen the caulking nut (A) from the driveshaft and then separate the driveshaft from the hub assembly by using the plastic hammer.

Tightening torque:

294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

NOTE:

When removing the drive shaft, use a plastic hammer in order to avoid shock applied to the axle.
When removing the drive shaft, do not forcibly pull or excessively bend the axle to separate.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

The driveshaft lock nut must be replaced with new one.

Courtesy of HYUNDAI MOTOR AMERICA

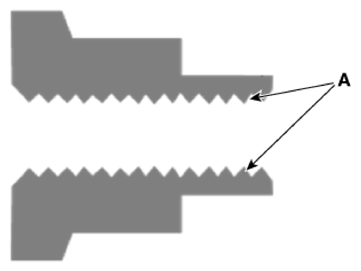

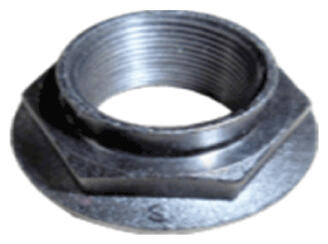

When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

Courtesy of HYUNDAI MOTOR AMERICA

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
If there are two key seats, perform on all two seats.
Caulking depth (A) : 1.5 mm (0.0591 in)

Courtesy of HYUNDAI MOTOR AMERICA

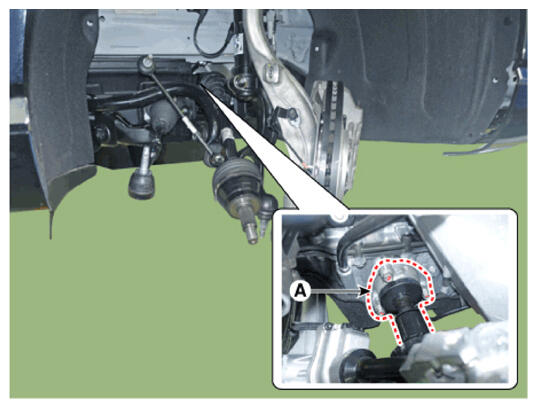

Loosen the mounting bolt and then remove the inner shaft bearing bracket and front drive shaft (A) from the engine oil pan.
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When removing the driveshaft, be careful not to damage the boot of the shock absorber.

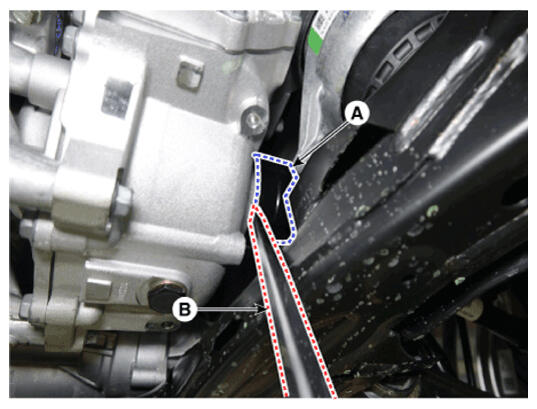

Insert a pry bar (B) remove the passenger side driveshaft (A) from the front carrier.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Use a pry bar (A) being careful not to damage the transaxle and joint.
- Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the clip whenever the driveshaft is removed from the differential carrier.
