Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

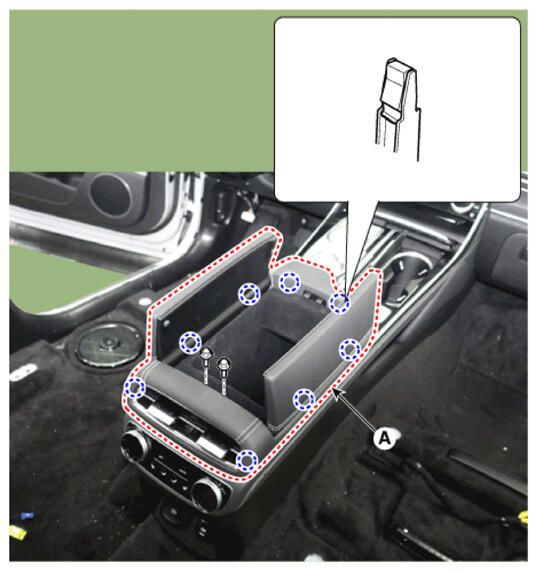

Remove the upper console assembly (A) after loosening mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

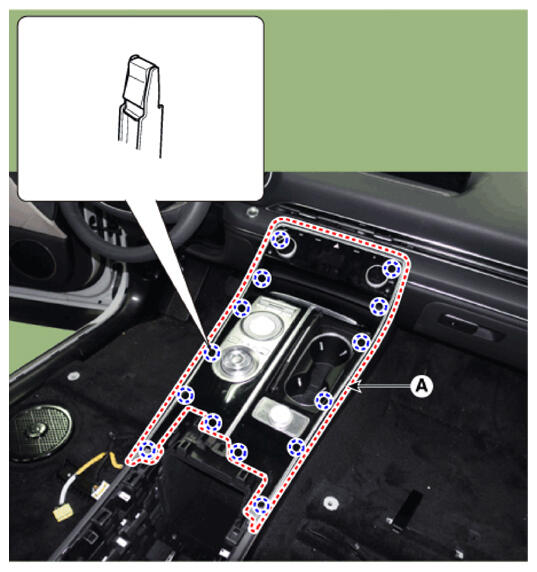

Using a flat-tip screwdriver or remover, remove the console upper cover assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

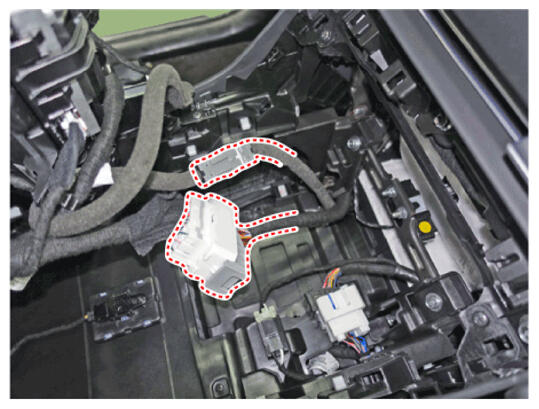

Disconnect the console upper connector.

Courtesy of HYUNDAI MOTOR AMERICA

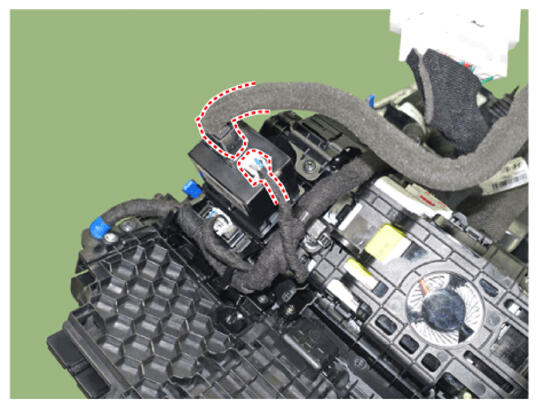

Disconnect the USB connector.

Courtesy of HYUNDAI MOTOR AMERICA

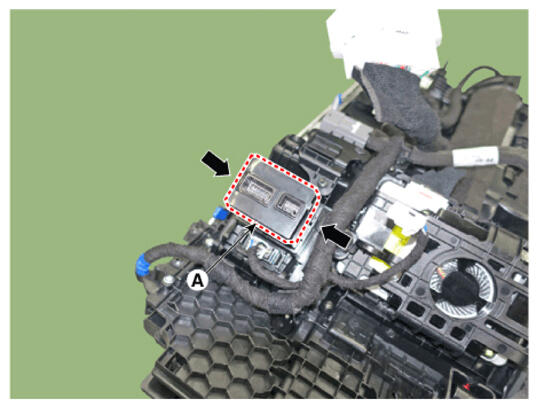

Remove the USB (A) by pushing the fixed clip in the direction of the arrow as illustration below.

Courtesy of HYUNDAI MOTOR AMERICA
