Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

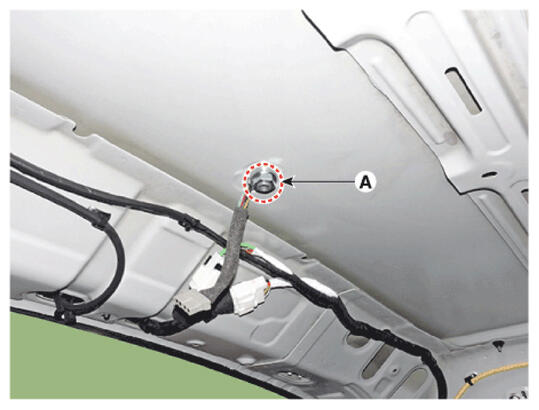

  3. Loosening the mounting nut (A) after disconnecting the antenna connector.
    G16774377Courtesy of HYUNDAI MOTOR AMERICA

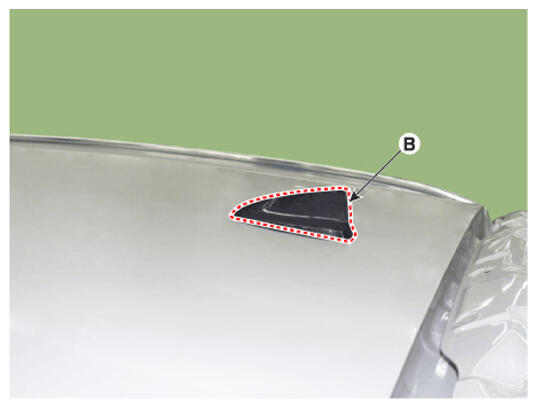

  4. Remove the roof antenna (B).
G16774378Courtesy of HYUNDAI MOTOR AMERICA
