Repair Procedures: Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front seat back cover.

   (Refer to Body (Interior and Exterior) - "FRONT SEAT BACK COVER ")

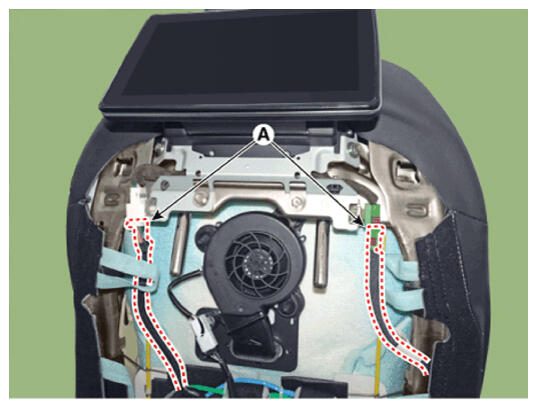

3. Disconnect the rear monitor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

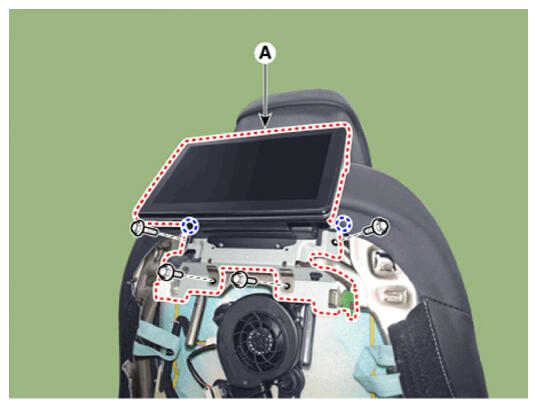

4. Loosen the mounting bolts and remove the rear monitor (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

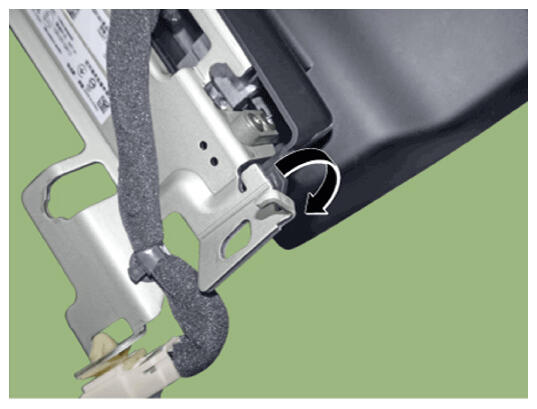

• Rotate the hook in the direction of the arrow and detach.

Courtesy of HYUNDAI MOTOR AMERICA
