Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

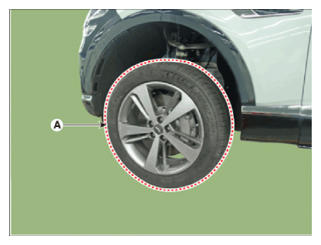

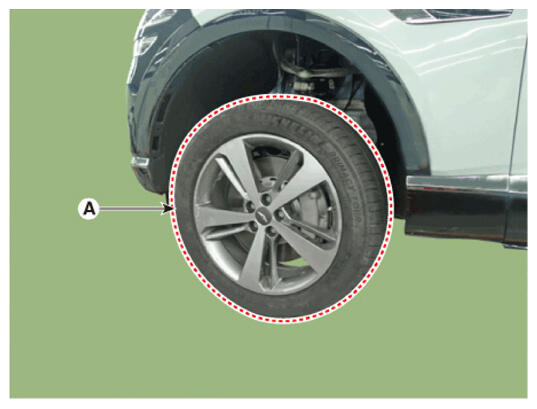

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

NOTE:

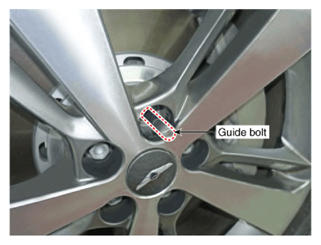

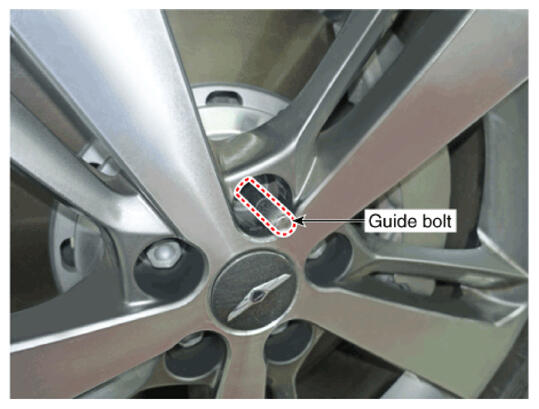

Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

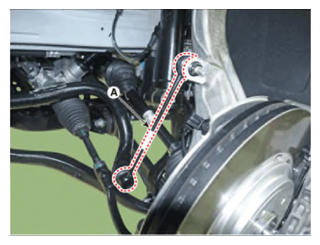

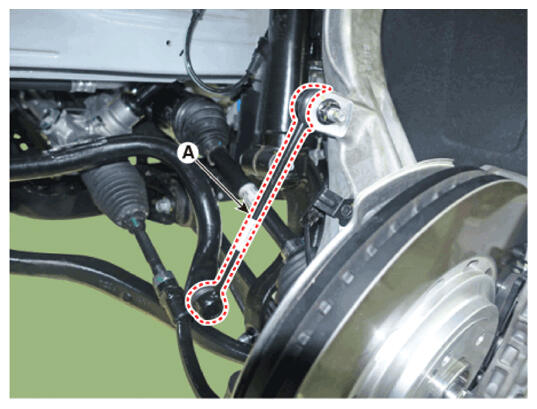

Loosen the nut (A) and then remove the stabilizer link.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:
- When loosening the nut, fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.
Courtesy of HYUNDAI MOTOR AMERICA

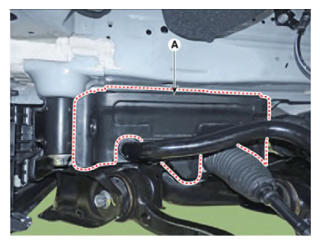

Remove the side cover (A).

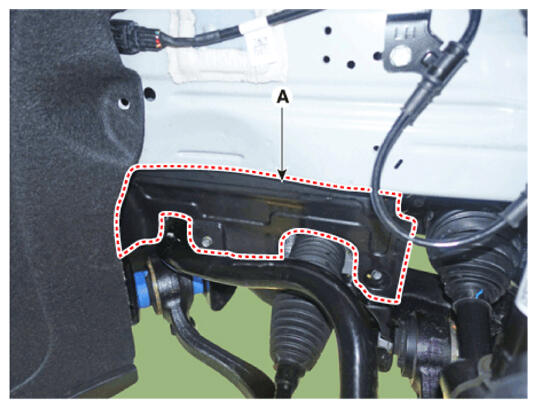

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

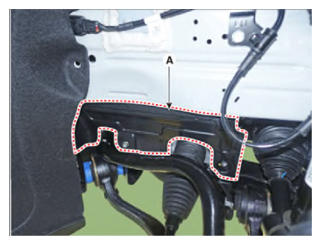

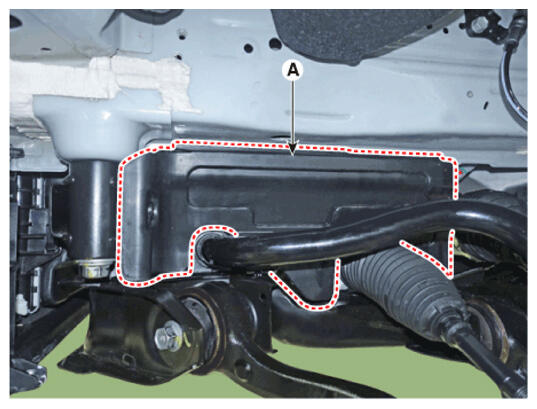

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

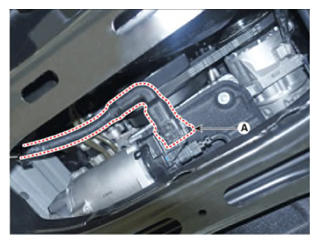

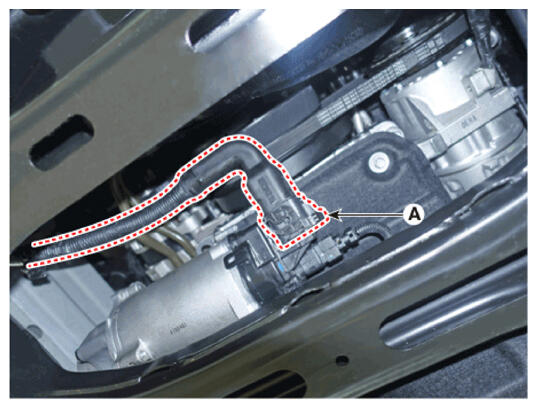

Disconnect the R-MDPS connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

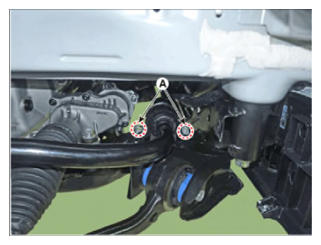

Loosen the bolts (A) and then remove the stabilizer bar from the front cross member.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

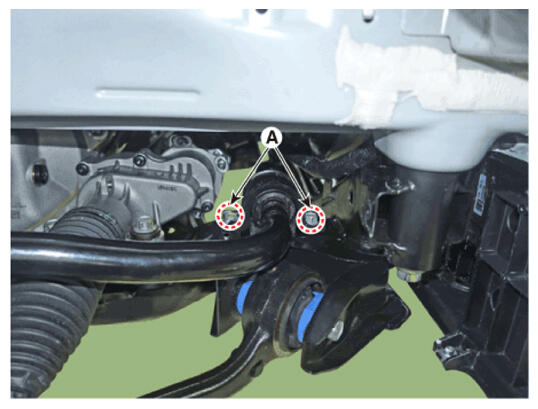

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

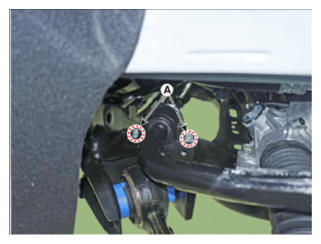

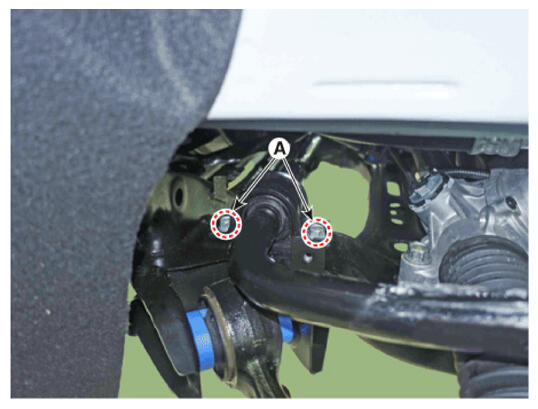

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
