Diagnostic Flowchart

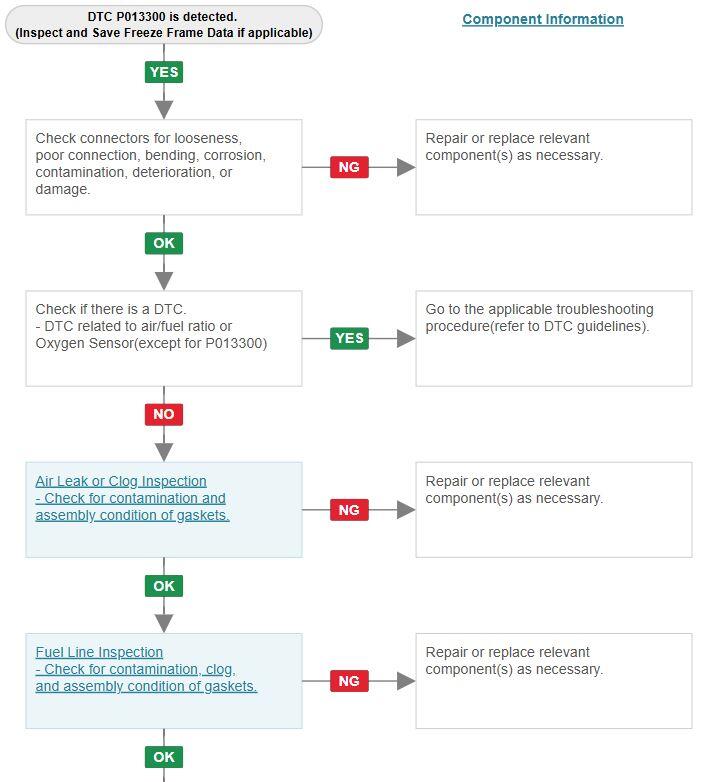

Fig 1: P0133-00 (2 Of 2)
G16779793Courtesy of HYUNDAI MOTOR AMERICA

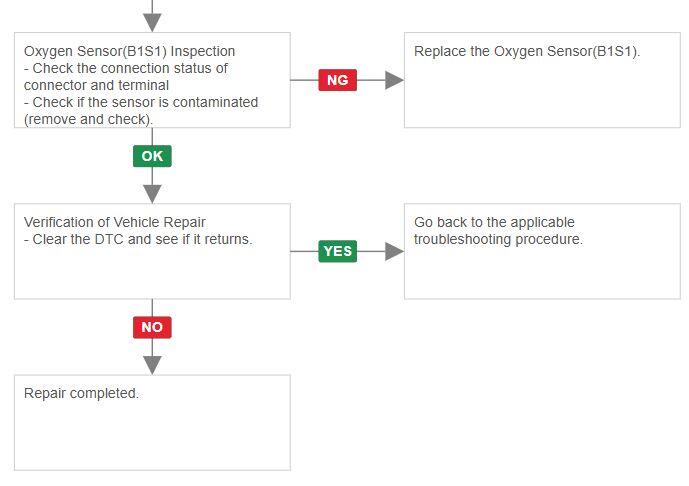

Fig 2: P0133-00 (2 Of 2)
G00664306Courtesy of HYUNDAI MOTOR AMERICA
