Removal and Installation

Ignition coil (Cylinder #1, #3, #5)

1. Disconnect the battery negative terminal.
2. Remove the engine cover.

   (Refer to Engine Mechanical System - "ENGINE COVER ")

3. Remove the RH air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

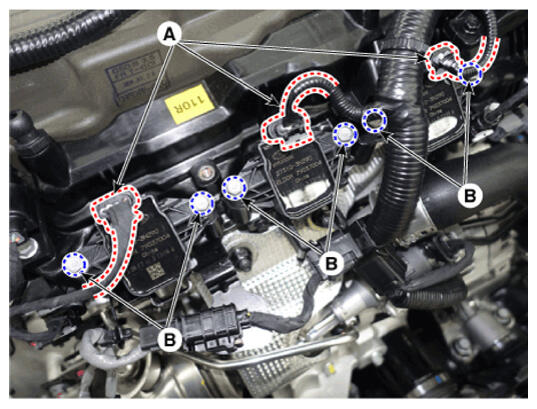

4. Disconnect the ignition coil connectors (A).
5. Remove the ignition coil after loosening the mounting bolts (B).

   Tightening torque:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

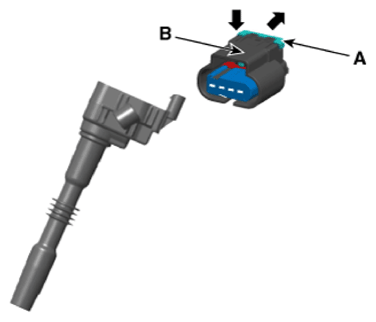

   • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

     Courtesy of HYUNDAI MOTOR AMERICA

6. Install in the reverse order of removal.

Ignition coil (Cylinder #2, #4, #6)

1. Disconnect the battery negative terminal.
2. Remove the engine cover.

   (Refer to Engine Mechanical System - "ENGINE COVER ")

3. Remove the LH air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

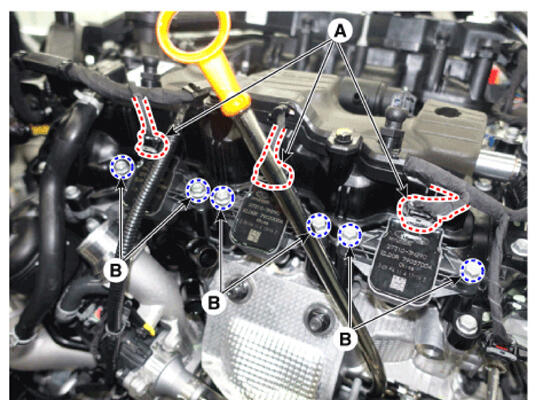

4. Disconnect the ignition coil connectors (A).
5. Remove the ignition coil after loosening the mounting bolts (B).

   Tightening torque:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

     Courtesy of HYUNDAI MOTOR AMERICA

6. Install in the reverse order of removal.
