Engine Control System - 3.5L
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Schematic Diagrams
>>

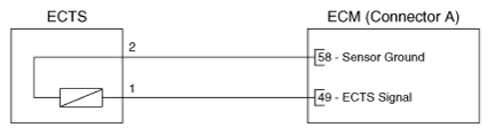

Circuit Diagram
>>
Engine Coolant Temperature Sensor (ECTS) - Integrated Flow Control Valve Side
Engine Coolant Temperature Sensor (ECTS) - Integrated Flow Control Valve Side
