LEMON Manuals: Even more car manuals for everyone
Home >> Genesis >> 2024 >> GV80 2.5T Advanced >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 4WD Control Diagnosis >> DTC U0123-00: Lost Communication With Yaw Rate Sensor Module >> Troubleshooting >> Diagnostic Flowchart

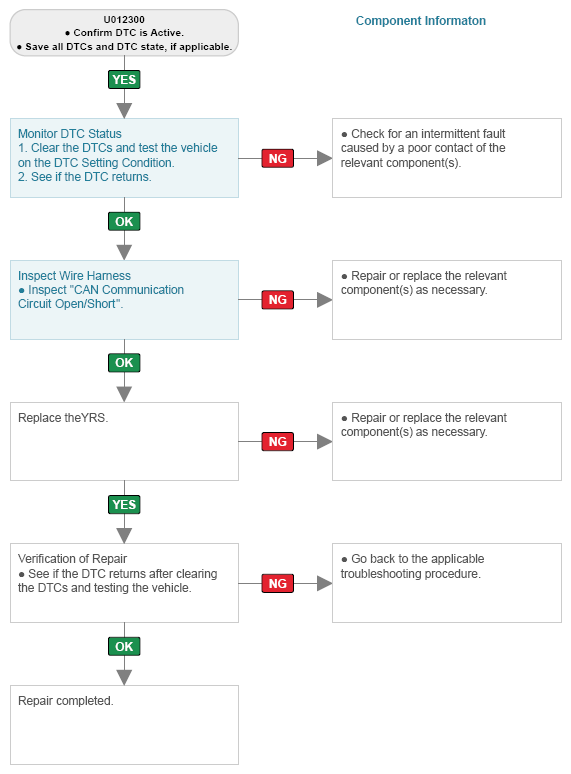

Diagnostic Flowchart

G16777963Courtesy of HYUNDAI MOTOR AMERICA
