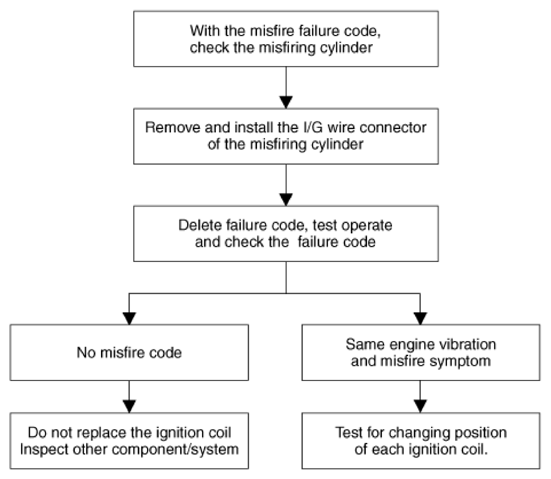

Connector assembly status test

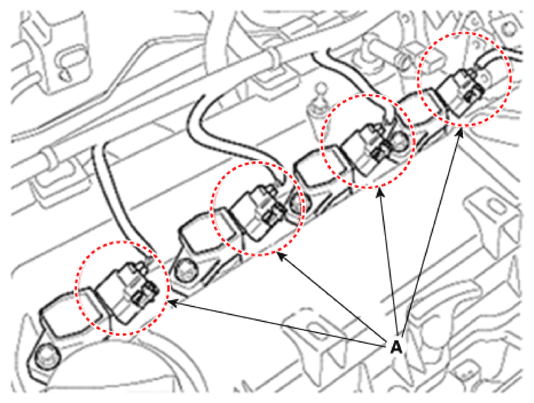

Remove the connector (A) and reinstall it.

G16769566

Courtesy of HYUNDAI MOTOR AMERICA

G16769567

Courtesy of HYUNDAI MOTOR AMERICA
