Removal & Installation

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

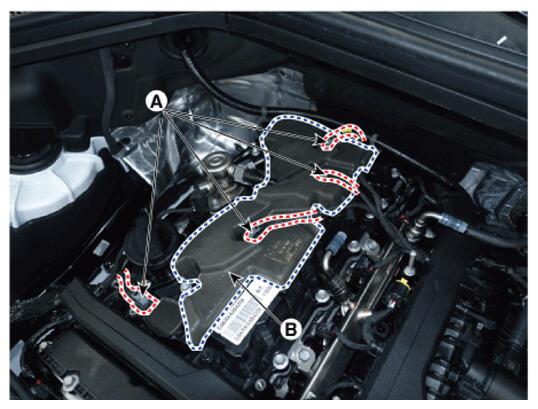

Disconnect the ignition coil connectors (A) and head cover form (B).

G16769570

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

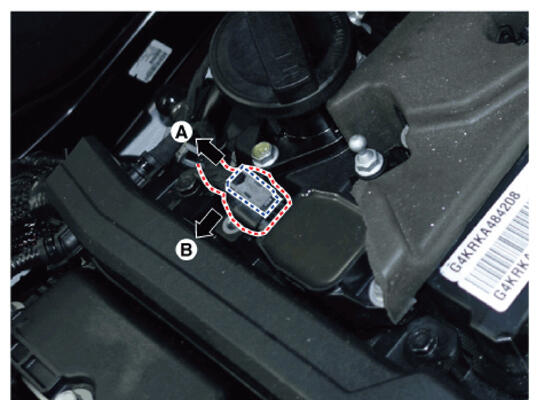

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

G16769571

Courtesy of HYUNDAI MOTOR AMERICA

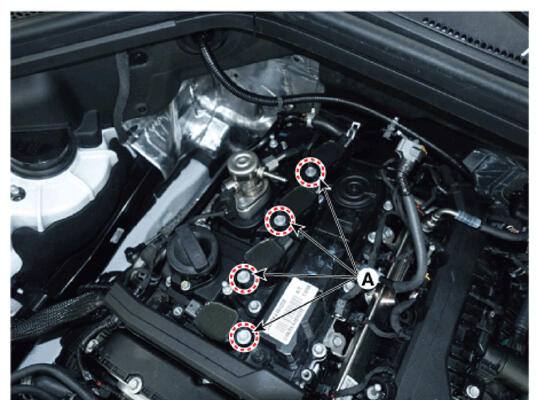

Remove the ignition coil after loosening the mounting bolt (A).
Ignition coil mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
