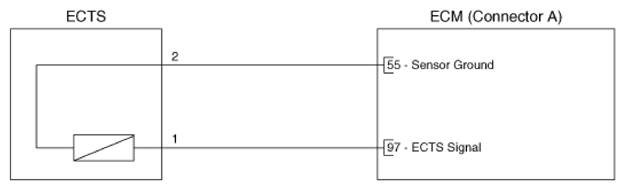

Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly side

G16769778

Courtesy of HYUNDAI MOTOR AMERICA
