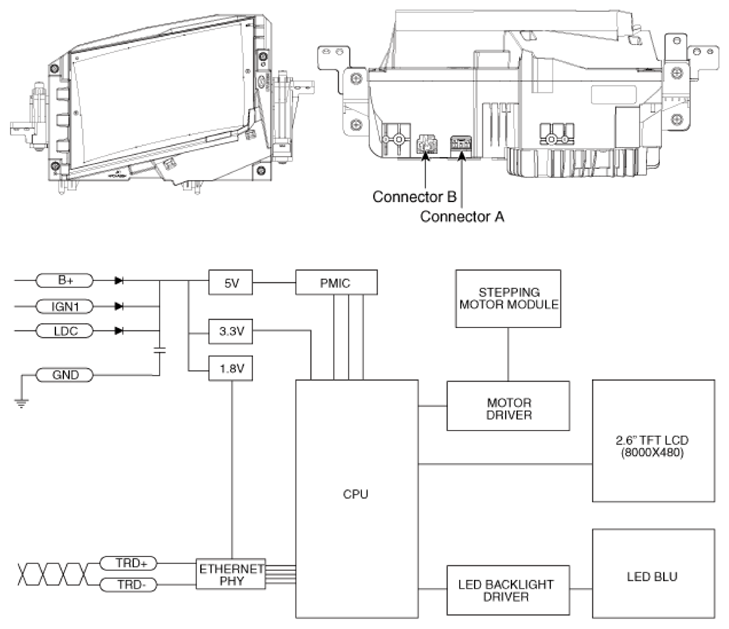

Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	-
	4	LDC (+)
	5	IGN 1
	6	Battery (+)

Connector B	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	TRD (+)
	2	TRD (-)
