Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

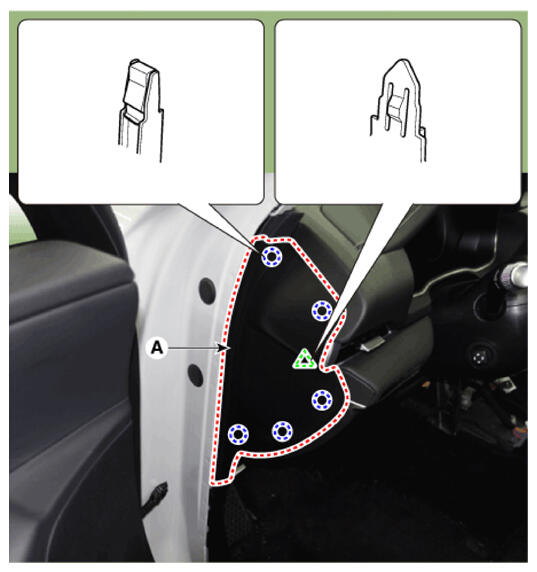

  3. Using a flat-tip screwdriver or remover and remove the crash pad side cover (A).
    G16773873Courtesy of HYUNDAI MOTOR AMERICA

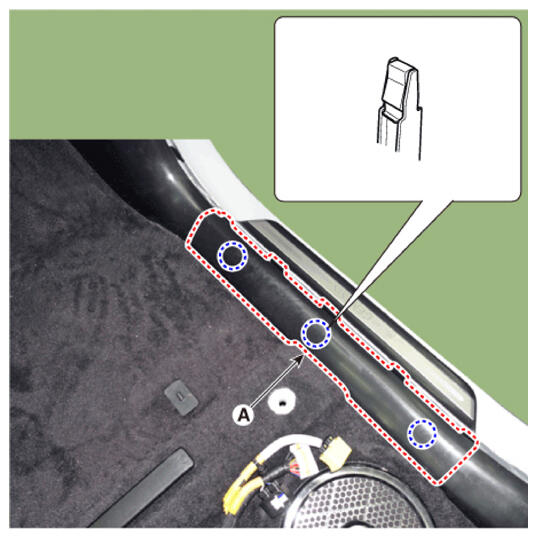

  4. Using a flat-tip screwdriver or remover and remove the front door scuff trim (A).
    G16773874Courtesy of HYUNDAI MOTOR AMERICA
  5. After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
    G16773875Courtesy of HYUNDAI MOTOR AMERICA

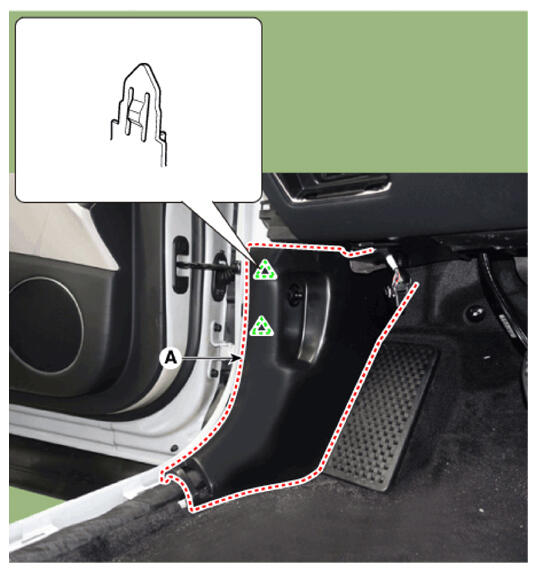

  6. Remove the cowl side trim (A).
    G16773876Courtesy of HYUNDAI MOTOR AMERICA

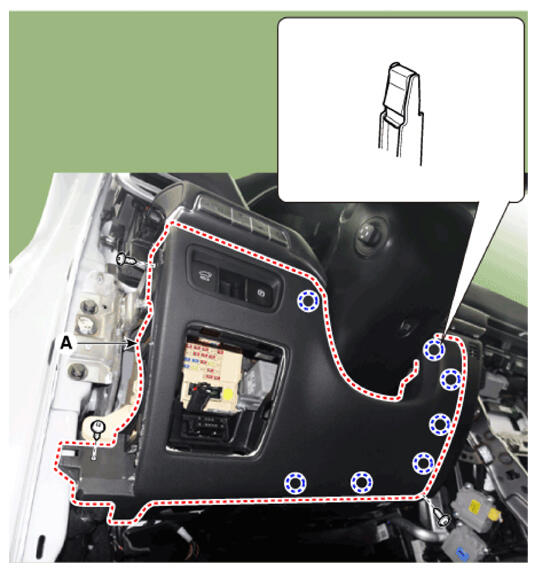

  7. Loosen the mounting screws and remove the crash pad lower panel (A).
    G16773877Courtesy of HYUNDAI MOTOR AMERICA

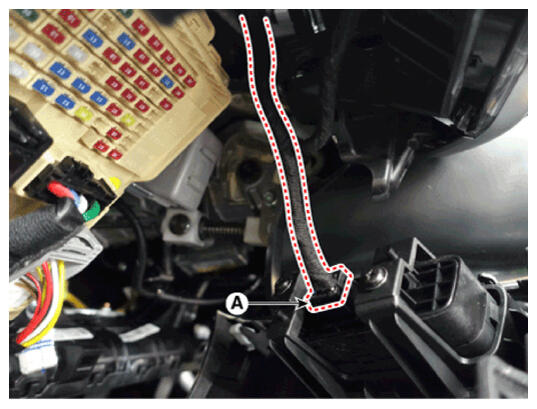

  8. Press the lock pin and separate the connector (A).
    G16773878Courtesy of HYUNDAI MOTOR AMERICA

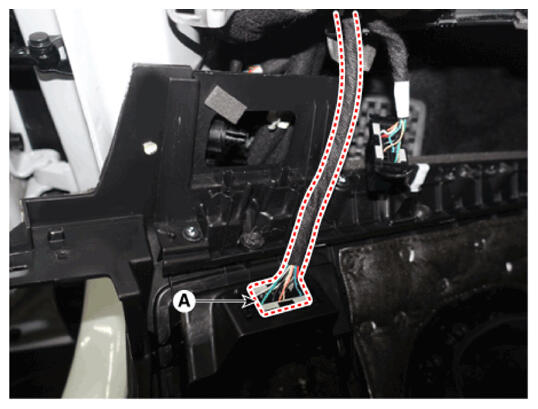

  9. Press the lock pin and separate the diagnosis connector (A).
    G16773879Courtesy of HYUNDAI MOTOR AMERICA

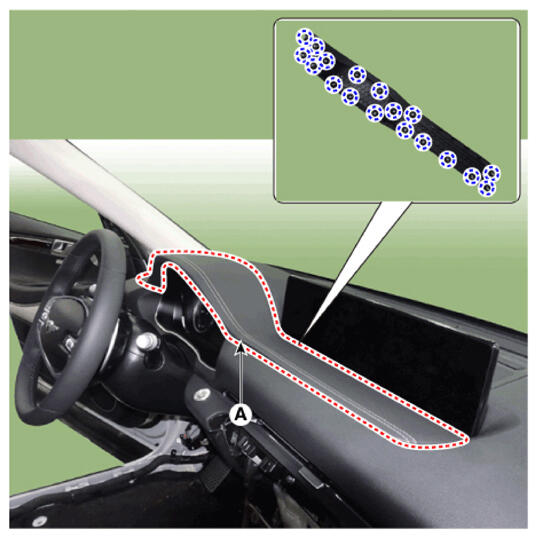

  10. Using a remover, remove the cluster fascia upper garnish (A).
    G16773880Courtesy of HYUNDAI MOTOR AMERICA

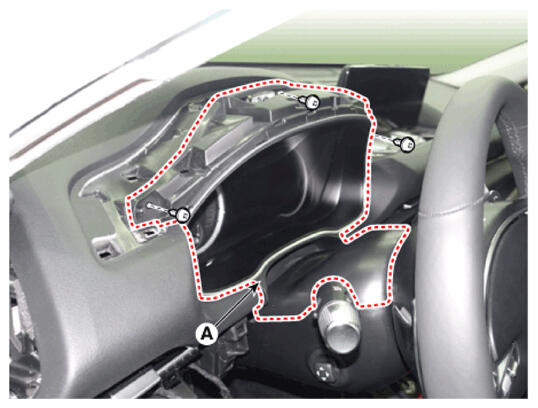

  11. Loosen the mounting screws and remove the cluster fascia panel & steering column shroud upper panel assembly (A).
    G16773881Courtesy of HYUNDAI MOTOR AMERICA

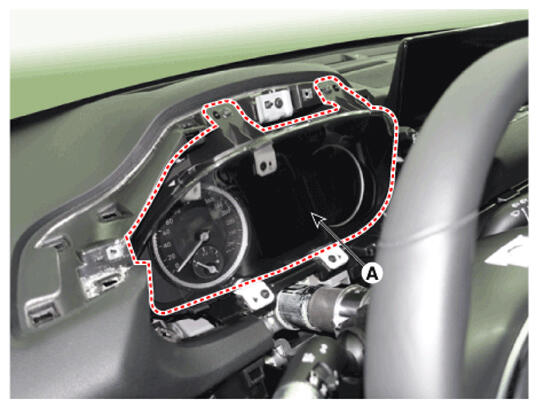

  12. Loosen the mounting screws and remove the cluster assembly (A).
    G16773882Courtesy of HYUNDAI MOTOR AMERICA

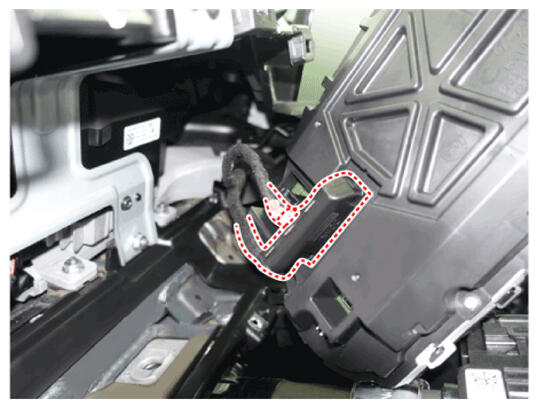

  13. Separate the connector and remove cluster assembly.
    G16773883Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the head up display (HUD) unit.

    (Refer to Body Electrical System - "HEAD UP DISPLAY UNIT ")

  15. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  16. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

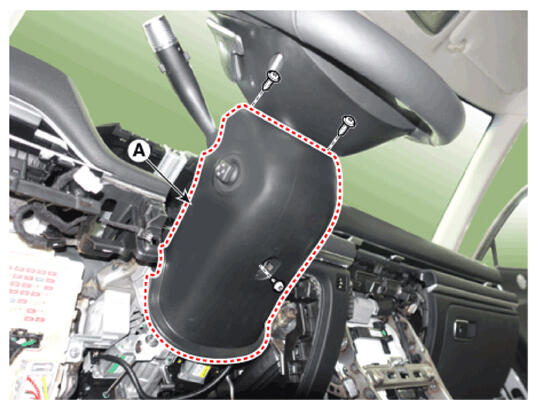

  17. Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
    G16773884Courtesy of HYUNDAI MOTOR AMERICA

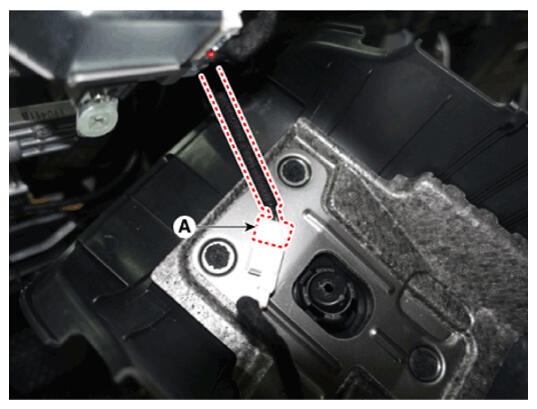

  18. Press the lock pin and separate the connector (A).
    G16773885Courtesy of HYUNDAI MOTOR AMERICA
  19. Remove the glove box.

    (Refer to Crash Pad - "GLOVE BOX ")

  20. Remove the crash pad side cover [RH].

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

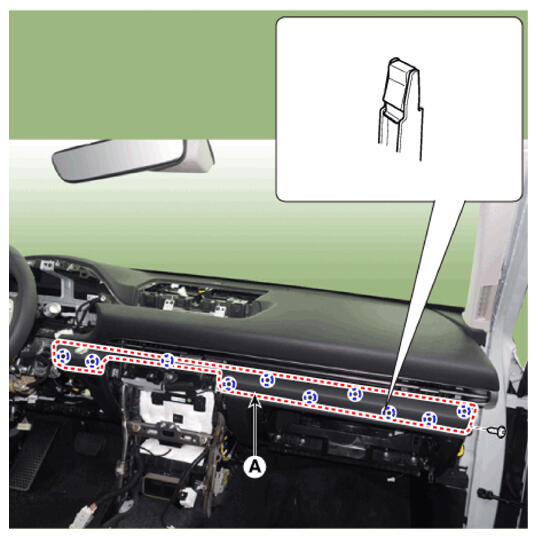

  21. Loosen the mounting screws and remove the crash pad garnish [RH] (A).
    G16773886Courtesy of HYUNDAI MOTOR AMERICA

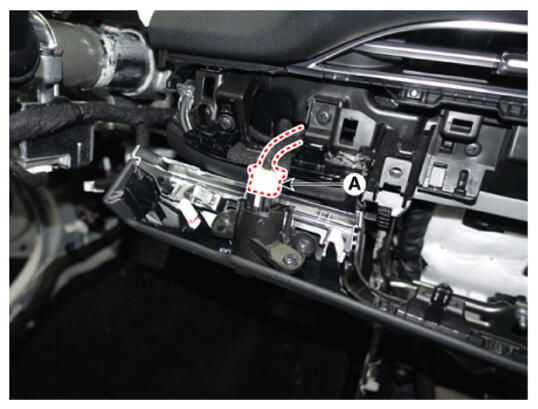

  22. Separate the start button connector (A).
    G16773887Courtesy of HYUNDAI MOTOR AMERICA

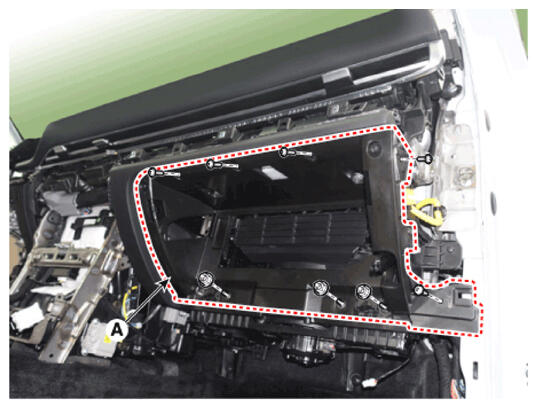

  23. Loosen the mounting screws and nuts, remove the glove box housing cover (A).
    G16773888Courtesy of HYUNDAI MOTOR AMERICA

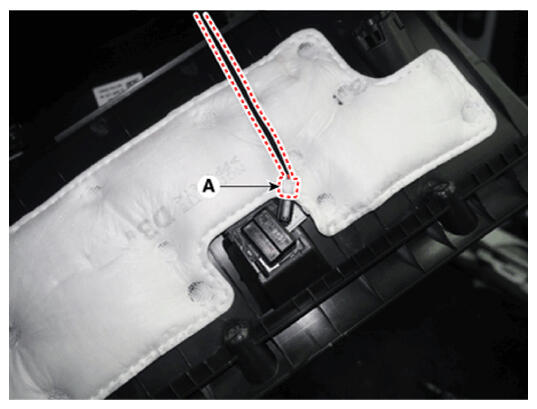

  24. Separate the glove box lamp connector (A).
    G16773889Courtesy of HYUNDAI MOTOR AMERICA

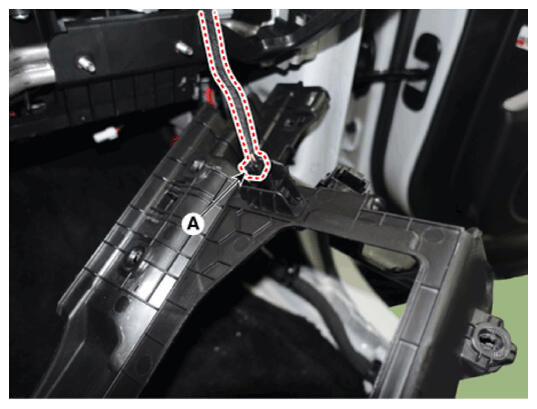

  25. Separate the glove box switch connector (A).
    G16773890Courtesy of HYUNDAI MOTOR AMERICA

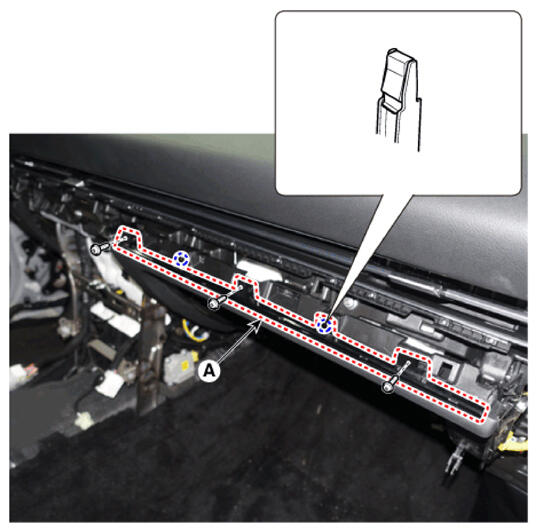

  26. Loosen the mounting screw, remove the crash pad center molding (A).
    G16773891Courtesy of HYUNDAI MOTOR AMERICA

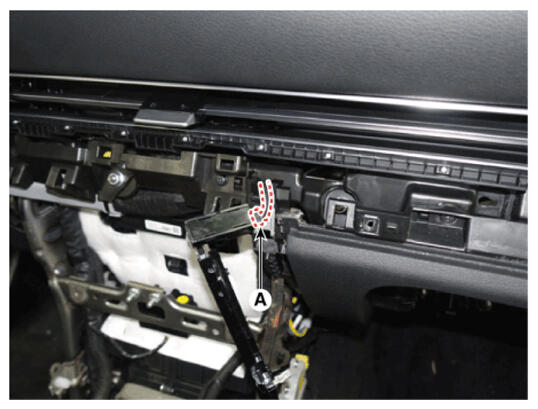

  27. Press the lock pin, separate the crash pad mood lamp connector (A).
    G16773892Courtesy of HYUNDAI MOTOR AMERICA

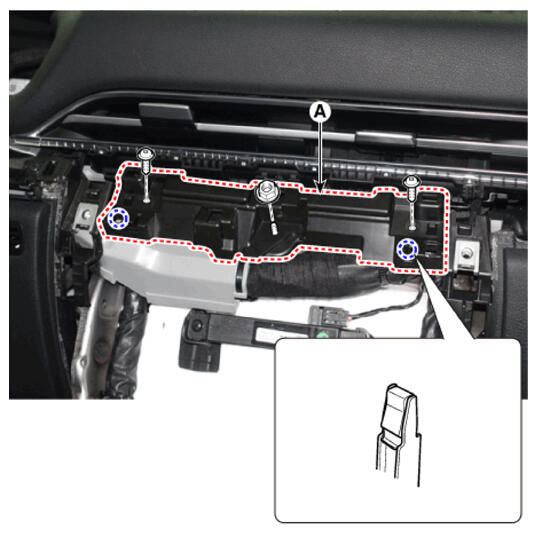

  28. Loosen the mounting screws and nut, remove the crash pad center panel garnish (A).
    G16773893Courtesy of HYUNDAI MOTOR AMERICA

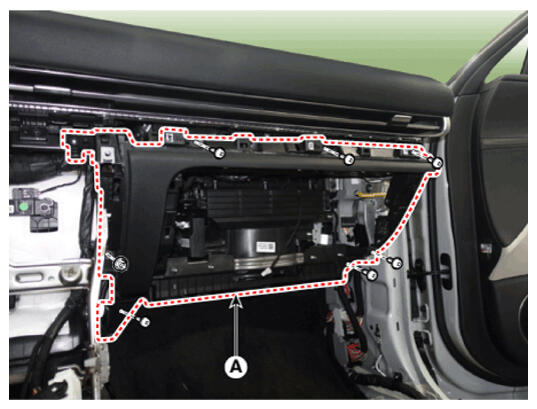

  29. Loosen the mounting screws and nut, remove the crash pad center panel [RH] (A).
    G16773894Courtesy of HYUNDAI MOTOR AMERICA

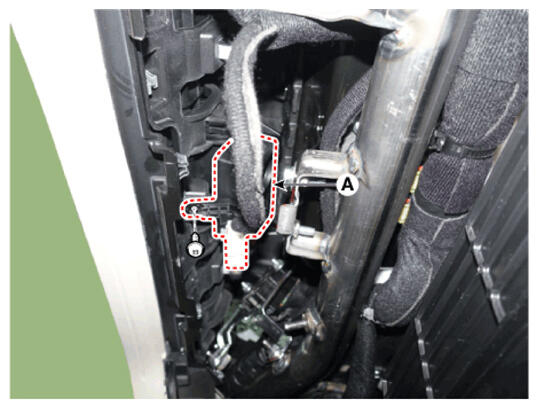

  30. Loosen the mounting screw and remove the PM sensor (A).
    G16773895Courtesy of HYUNDAI MOTOR AMERICA

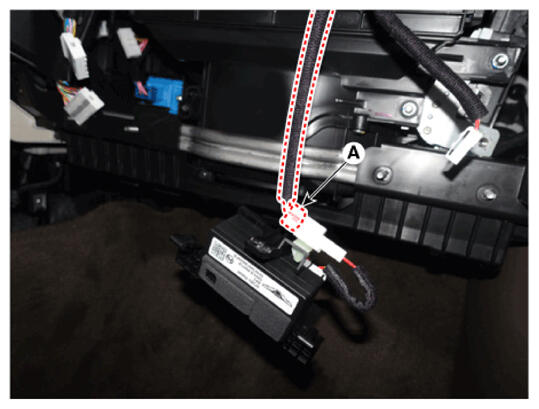

  31. Press the lock pin and separate the PM sensor connector (A).
    G16773896Courtesy of HYUNDAI MOTOR AMERICA

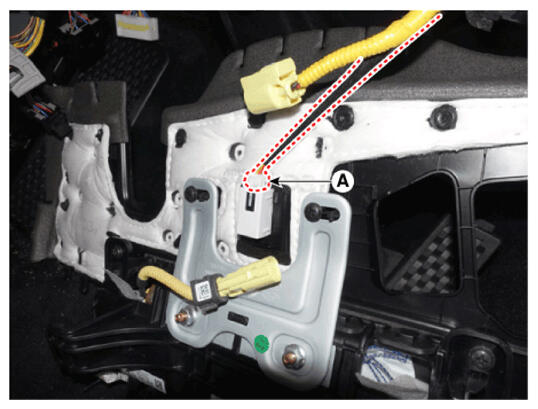

  32. Using a flat-tip screwdriver, remove the crash pad under cover and then separate the foot lamp connector (A).
    G16773897Courtesy of HYUNDAI MOTOR AMERICA

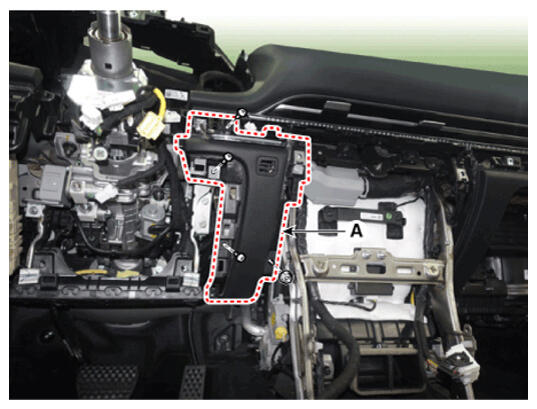

  33. Loosen the mounting screws and nut, remove the crash pad center panel [LH] (A).
    G16773898Courtesy of HYUNDAI MOTOR AMERICA

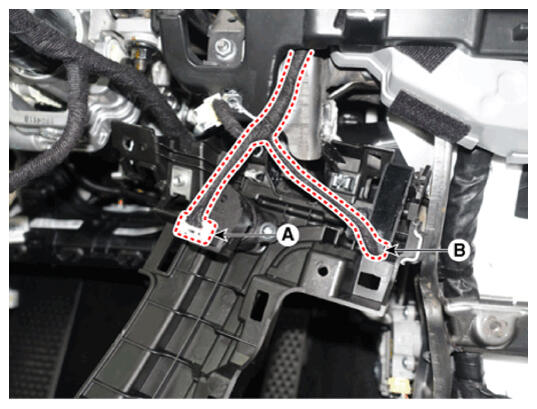

  34. Press the lock pin, separate the in-car sensor (A) and crash pad mood lamp connector (B).
    G16773899Courtesy of HYUNDAI MOTOR AMERICA

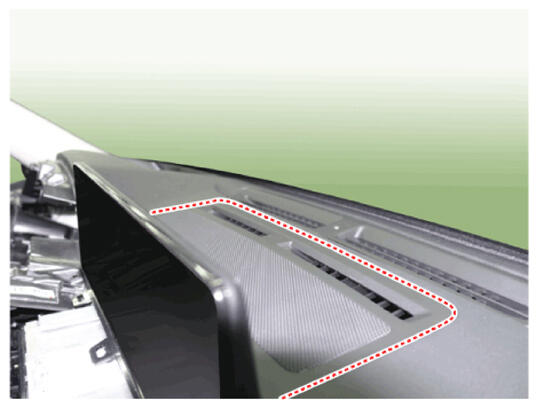

  35. Remove the crash pad upper garnish.
    G16773900Courtesy of HYUNDAI MOTOR AMERICA

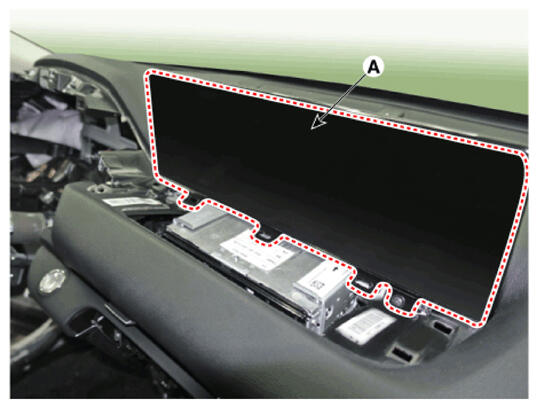

  36. Loosen the mounting screws and remove the front monitor (A).
    G16773901Courtesy of HYUNDAI MOTOR AMERICA

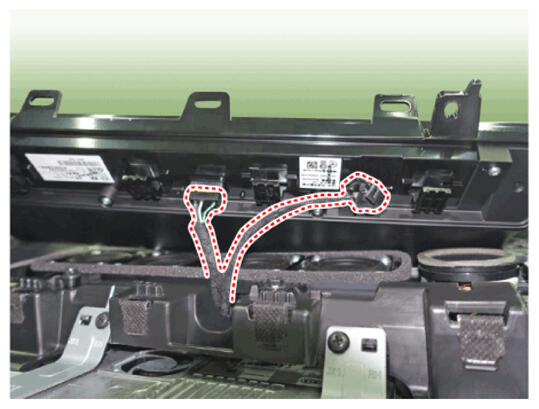

  37. Separate the connectors and then remove the front monitor.
    G16773902Courtesy of HYUNDAI MOTOR AMERICA

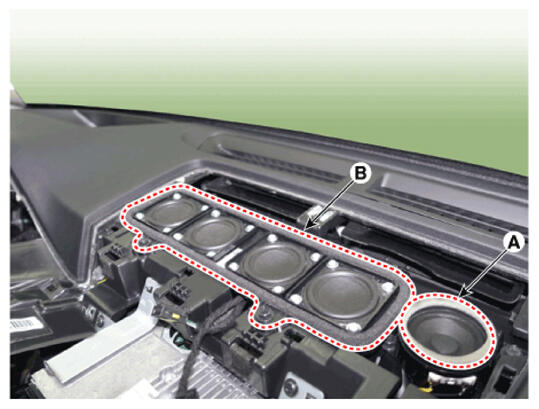

  38. Remove the cluster speaker (A) and center speaker (B).
    G16773903Courtesy of HYUNDAI MOTOR AMERICA

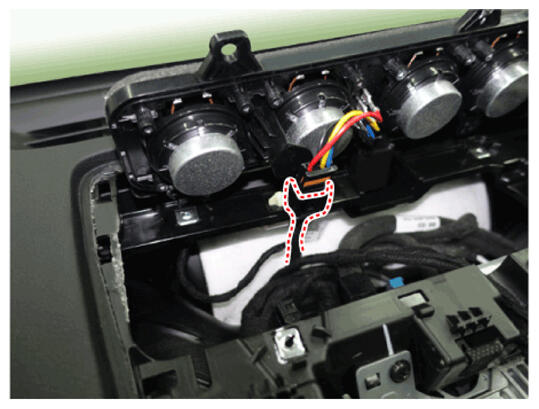

  39. Separate the connector and remove the center speaker.
    G16773904Courtesy of HYUNDAI MOTOR AMERICA

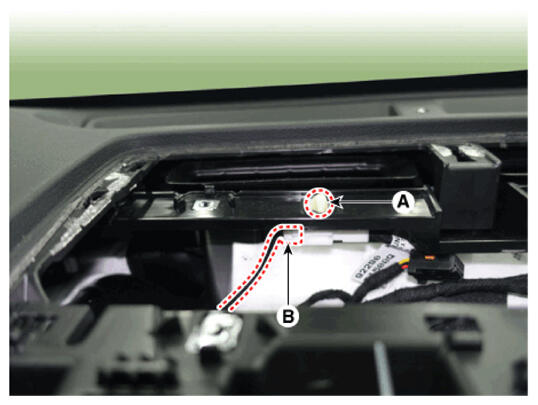

  40. Remove the clip (A) attached to the crash pad upper garnish and disconnect the security sensor connector (B).
    G16773905Courtesy of HYUNDAI MOTOR AMERICA

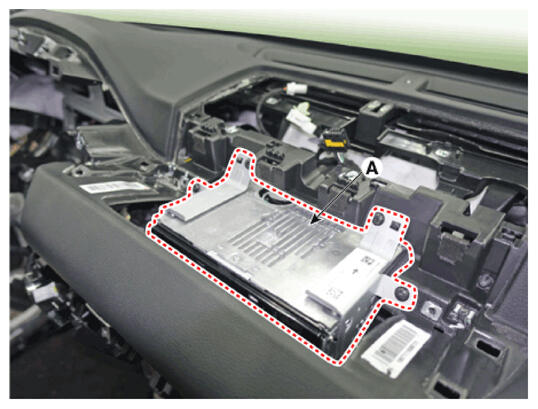

  41. Loosen the mounting screws, remove the AVN head unit (A).
    G16773906Courtesy of HYUNDAI MOTOR AMERICA

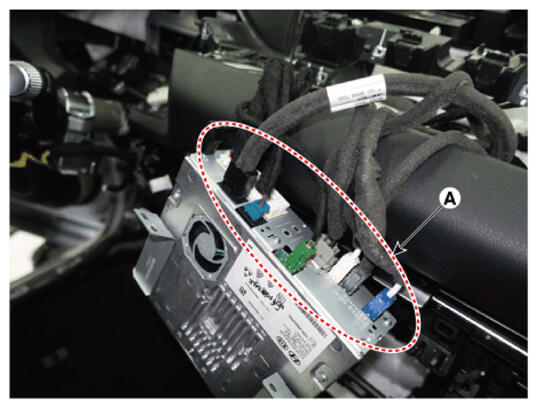

  42. Separate the AVN head unit connectors (A).
    G16773907Courtesy of HYUNDAI MOTOR AMERICA

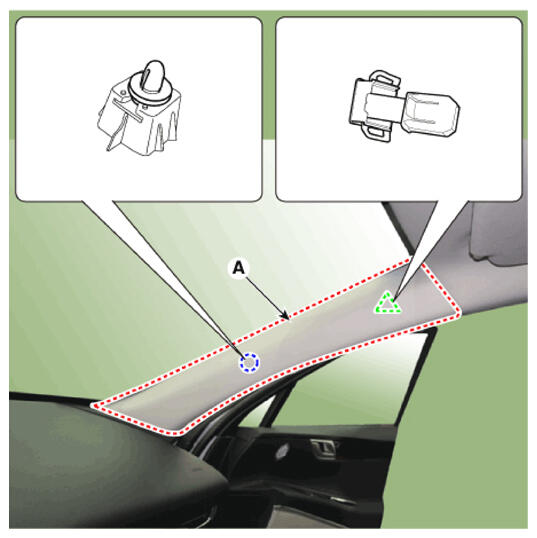

  43. Remove the front pillar trim [LH, RH] (A).
    G16773908Courtesy of HYUNDAI MOTOR AMERICA

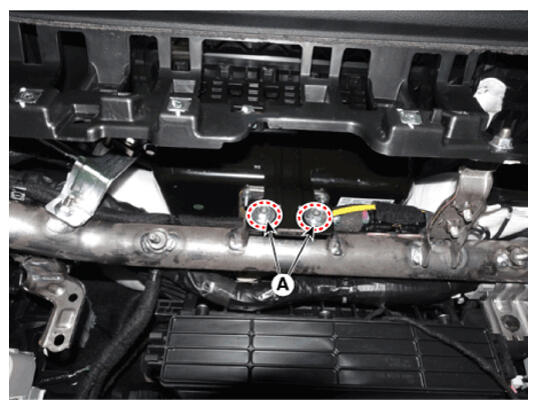

  44. Loosen the airbag mounting bolts (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G16773909Courtesy of HYUNDAI MOTOR AMERICA

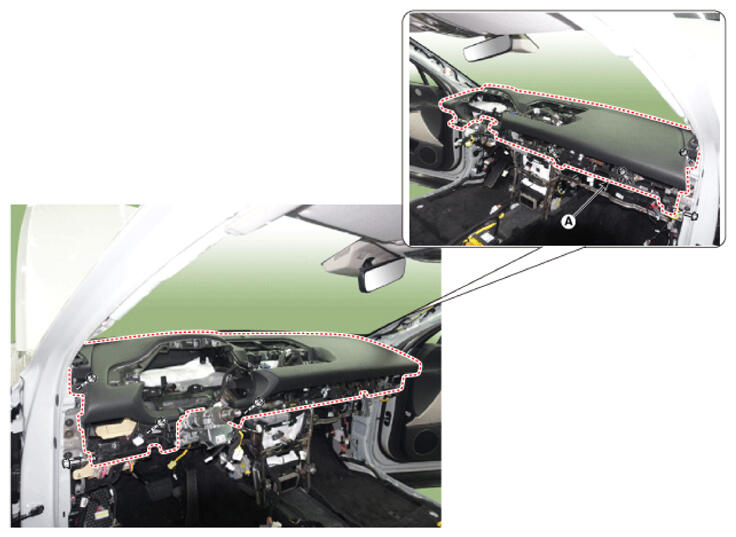

  45. Loosen the mounting bolts, nuts and remove the main crash pad assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G16773910Courtesy of HYUNDAI MOTOR AMERICA

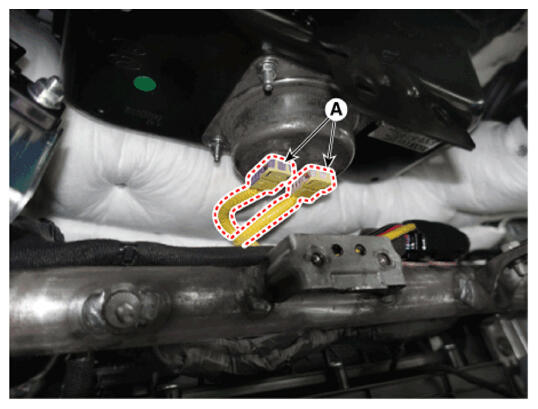

  46. Press the lock pin and separate the passenger airbag module connector (A).
    G16773911Courtesy of HYUNDAI MOTOR AMERICA
  47. To install, reverse removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-typ retainers).
