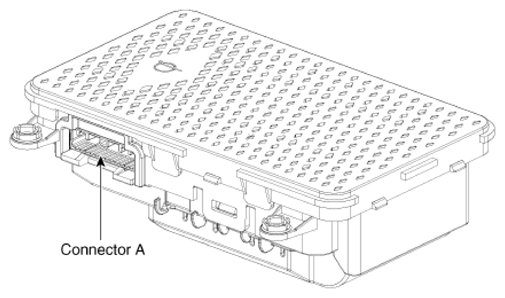

Components And Components Location: Components: [Rear]

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground (Power)
	2	ACC (Power)
	3	LED (Amber)
	4	LED (Green 1)
	5	B-CAN (LOW)
	6	B-CAN (HIGH)
	7	LED (Green 2)
	8	-
	9	-
	10	LED (Green 3)
	11	IGN 1
	12	Battery (+)
