Upper Walk in Switch

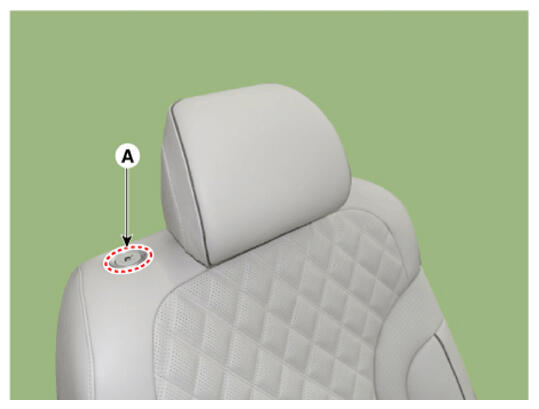

  1. Remove the rear seat walk in switch (A).
    G16774543Courtesy of HYUNDAI MOTOR AMERICA

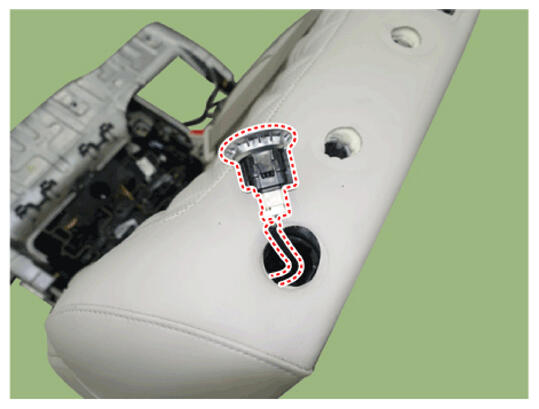

  2. Remove the walk in switch by using a flat-head screwdriver and then disconnect the walk in switch connector.
    G16774544Courtesy of HYUNDAI MOTOR AMERICA
