Lower Walk in Switch

  1. Remove the seat outer shield cover.

    (Refer to Body - "REAR SEAT CUSHION COVER ")

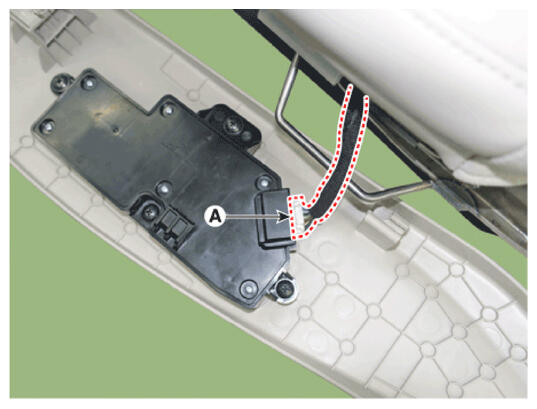

  2. Remove the walk in switch after loosening the connector (A).
    G16774545Courtesy of HYUNDAI MOTOR AMERICA
