Repair Procedures: Removal: Actuator

  1. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  2. Disconnect the walk in actuator connector and then remove the actuator.

    [2nd]

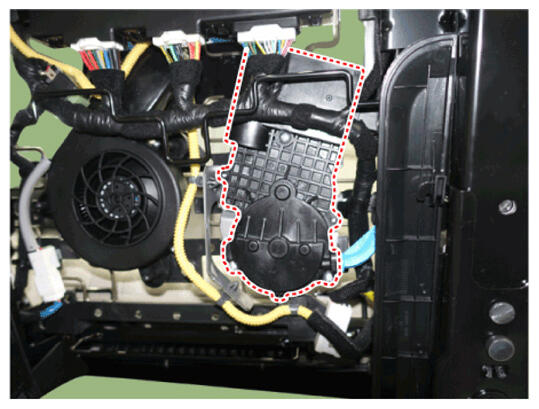

    G16774539Courtesy of HYUNDAI MOTOR AMERICA

    [3rd]

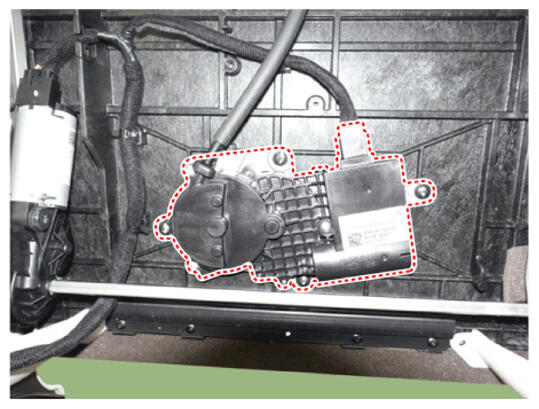

    G16774540Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cable (A) and then separate the walk in actuator.

    [2nd]

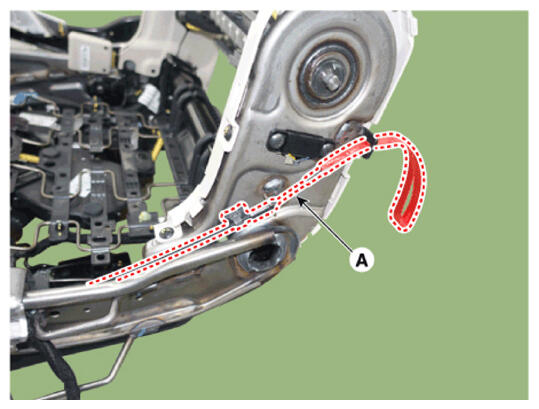

    G16774541Courtesy of HYUNDAI MOTOR AMERICA

    [3rd]

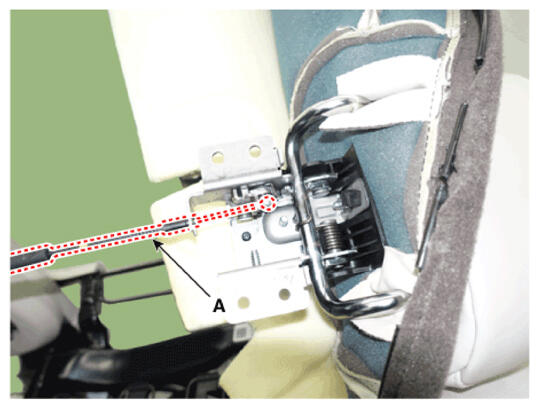

    G16774542Courtesy of HYUNDAI MOTOR AMERICA
