Control Unit

  1. Remove the 3rt line seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

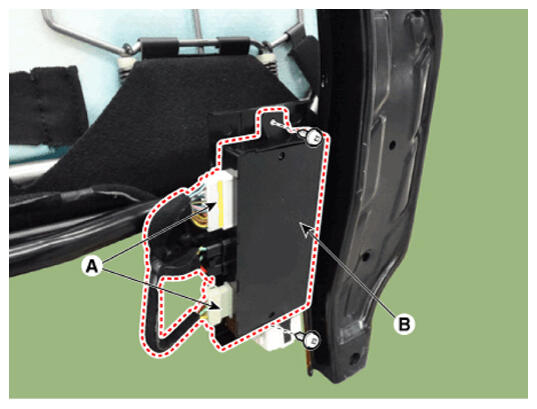

  2. Remove the control unit (B) after disconnecting the connector (A).
G16774534Courtesy of HYUNDAI MOTOR AMERICA
