Front Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer Body - "FRONT BUMPER ASSEMBLY ")

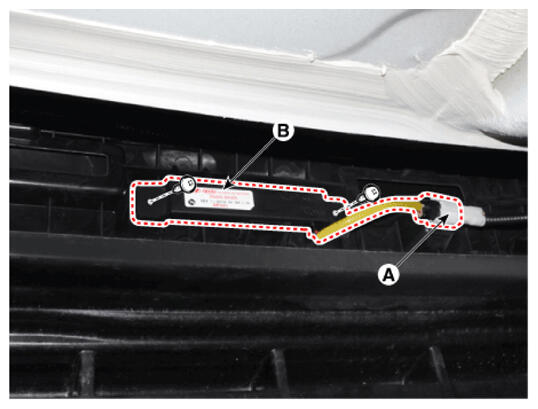

  3. Remove the front antenna (B) after loosening mounting screws and disconnecting the connector (A).
G16774460Courtesy of HYUNDAI MOTOR AMERICA
