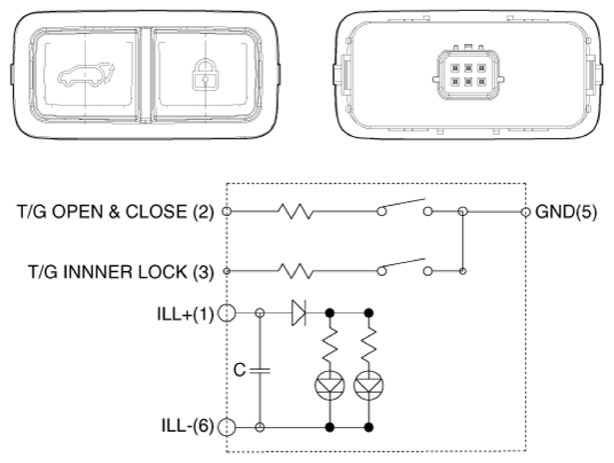

[Tail Gate Inner Switch]

G16774720Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Remark
G16774721Courtesy of HYUNDAI MOTOR AMERICA
 1 ILL (+)
2 Tailgate Open & Close
3 Tailgate inner lock
4 -
5 Ground
6 ILL (-)
