Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX ")

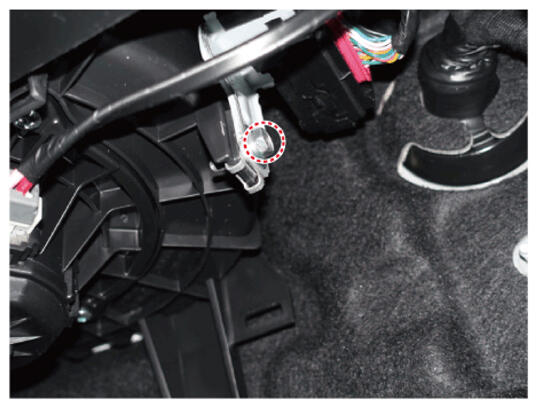

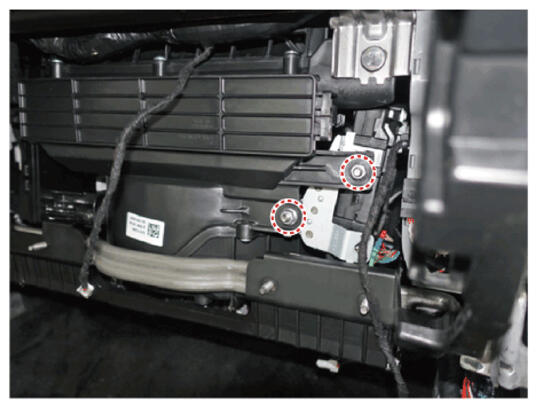

- Loosen IBU mounting bolt and nuts.

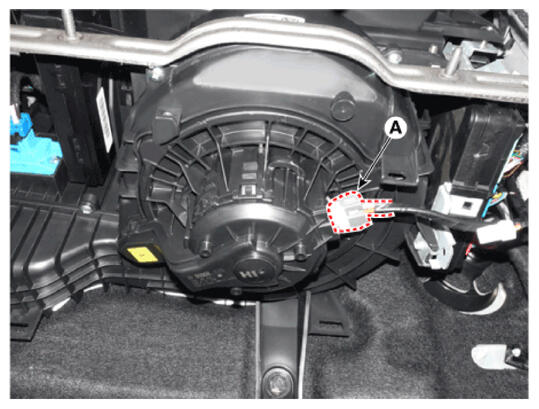

- Disconnect the blower motor connector (A).

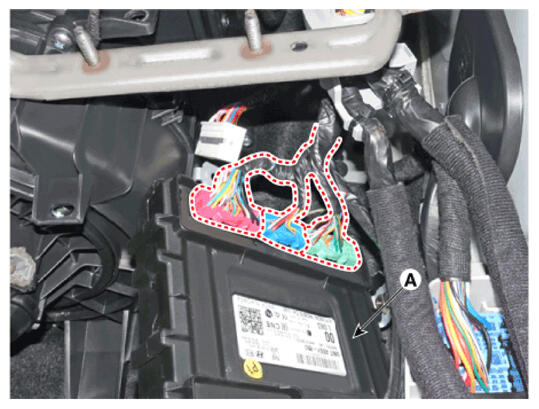

- Remove the IBU (A) after disconnecting IBU connectors.
