Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to8 Body - "CRASH PAD LOWER PANEL ")

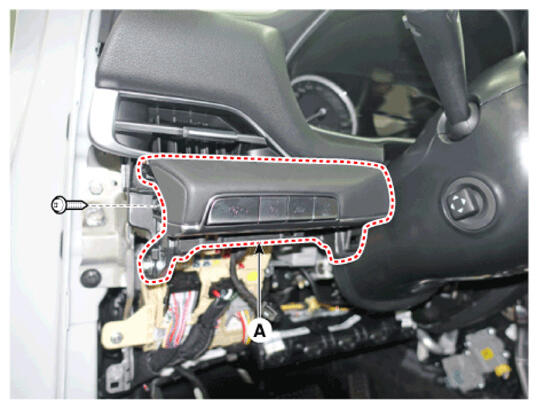

  3. Loosen the mounting screw and remove the crash pad switch assembly (A).
    G16778102Courtesy of HYUNDAI MOTOR AMERICA

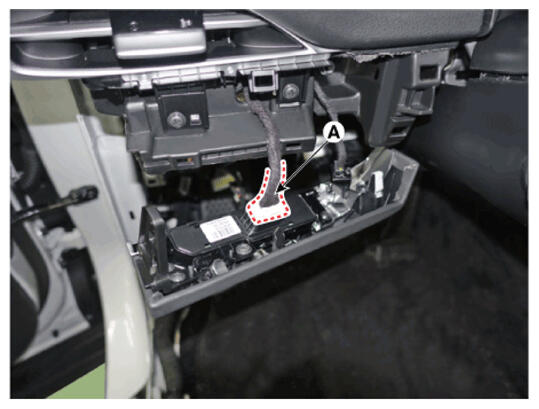

  4. Disconnect the crash pad switch assembly connector (A).
G16778103Courtesy of HYUNDAI MOTOR AMERICA
